High-Efficiency Standard Plate Heat Exchanger Solutions

Industry-Standard Industrial Heat Transfer Units Engineered for Maximum Energy Savings

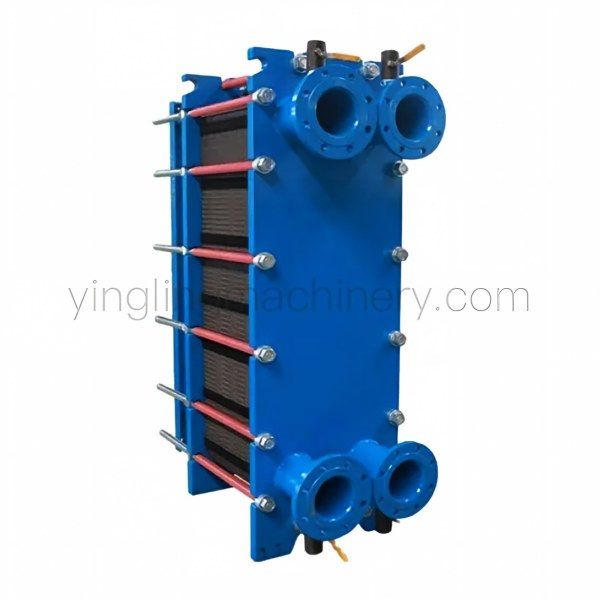

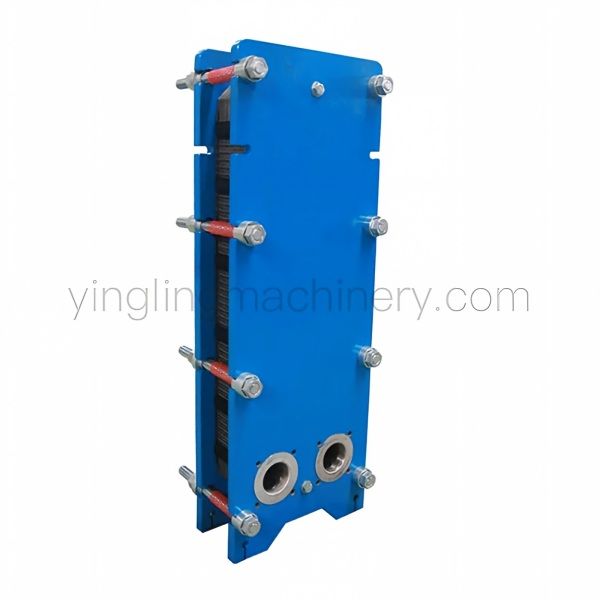

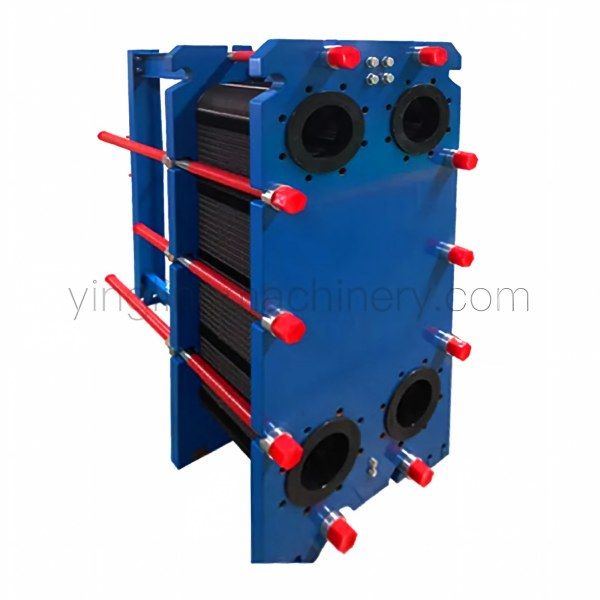

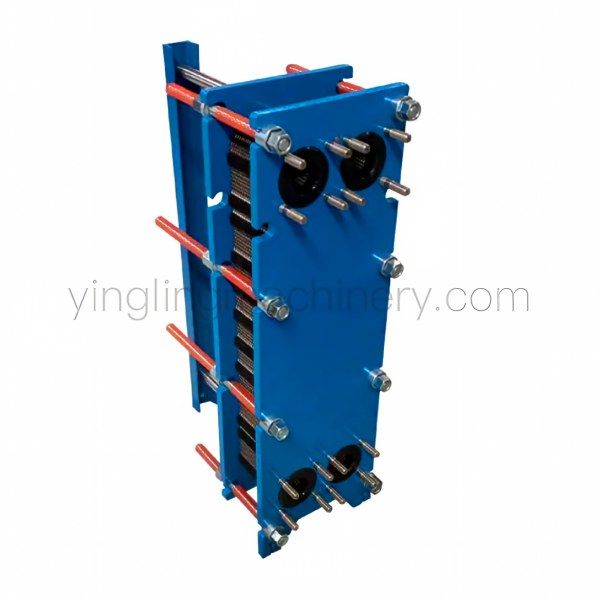

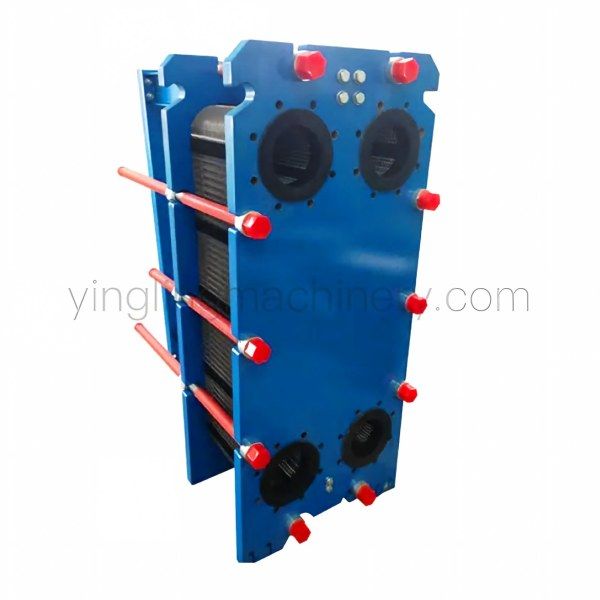

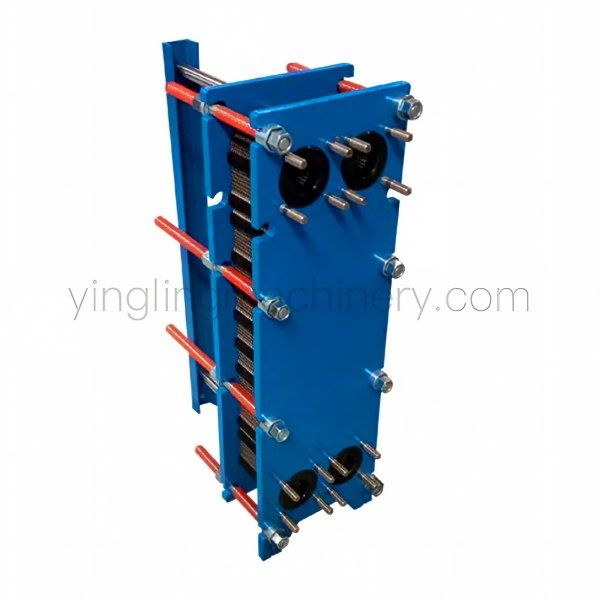

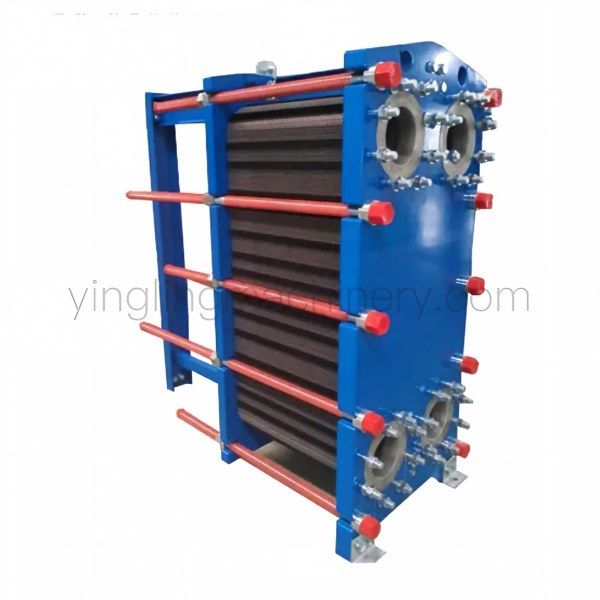

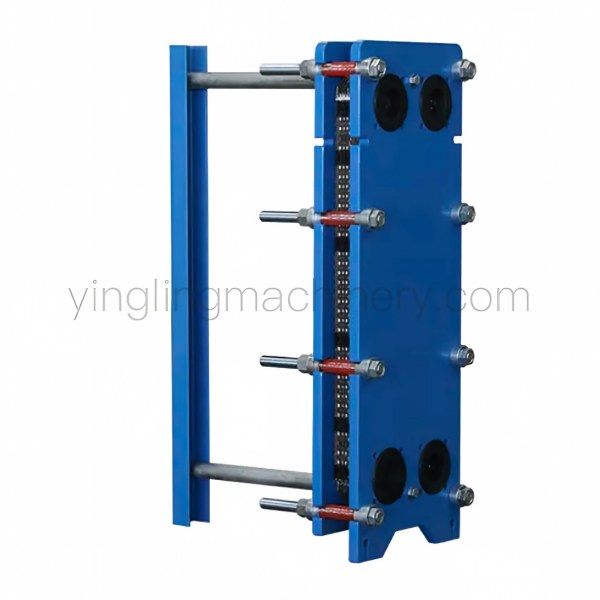

In industrial thermal management, versatility and operational efficiency are critical. The Standard Plate Heat Exchanger represents the most widely deployed gasketed heat exchanger architecture across global manufacturing, chemical processing, HVAC, and power generation facilities. Featuring high-turbulence chevron corrugated plates held securely within a rigid tie-rod frame, these units deliver exceptional thermal efficiency—up to 95%—while minimizing overall energy consumption and physical footprint.

As an experienced Plate Heat Exchanger Factory, we specialize in designing and manufacturing standard plate heat exchangers that balance high heat transfer coefficients with low pressure drops. Whether your system handles clean liquid-to-liquid cooling, process fluid heating, or energy recovery loops, our standardized thermal equipment delivers consistent reliability and rapid ROI.

Technical Specifications & Standard Operating Ranges

Our standard gasketed plate heat exchangers are built according to stringent quality management systems to accommodate a broad spectrum of utility fluids:

Key Advantages of Our Standard Plate Heat Exchangers

1. High Heat Transfer Coefficients

The corrugated chevron geometry forces liquid into intense turbulence even at low flow velocities. This continuous wall agitation maximizes heat flux while inhibiting thermal fouling, keeping operating efficiency stable over long production cycles.

2. Flexible Modular Scalability

As a dedicated Plate Heat Exchanger Factory, we design modular tie-rod frames that allow easy expansion. If your processing plant expands capacity in the future, maintenance personnel can simply loosen the frame bolts and add extra thermal plates without replacing the primary piping infrastructure.

3. Space-Saving Footprint

Compared to traditional shell-and-tube units of equivalent heat duties, a Standard Plate Heat Exchanger occupies up to 70% less floor area. This compact build makes it ideal for tight equipment skids, marine engine rooms, and plant retrofits.

Primary Applications Across Global Industries

HVAC & District Energy: Primary thermal isolation substations, chiller economizers, and central heating loops.

Chemical & Light Industry: Utility cooling, process water preheating, and solvent temperature management.

General Manufacturing: Hydraulic oil cooling, jacket water dissipation, and air compressor cooling.

Food & Beverage Auxiliary Loops: Hot water preparation, non-critical thermal loops, and secondary cooling circuits.

Direct Benefits of Partnering with Our Plate Heat Exchanger Factory

Factory-Direct Pricing & Custom Engineering: Direct manufacturer sourcing eliminates trading middleman markups, reducing capital expenditure by 20% to 30%.

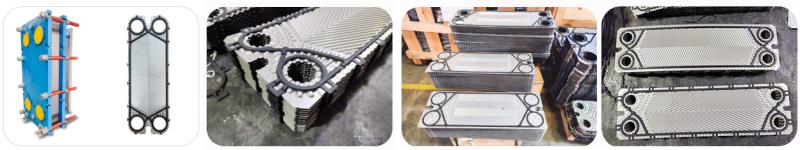

Full Aftermarket Support: In addition to complete assembled units, we supply precision-engineered replacement plates and elastomeric gaskets compatible with major global PHE brands.

Strict Quality Control: 100% hydrostatic pressure testing and dye-penetrant surface checks on every unit before dispatch ensure zero leakage in field operation.

Request Your Custom Thermal Sizing Calculation

Looking for a reliable Standard Plate Heat Exchanger for your next engineering project or looking to partner with a trusted Plate Heat Exchanger Factory? Contact our application engineering team today for technical data sheets, CAD drawings, and a direct factory quote.
