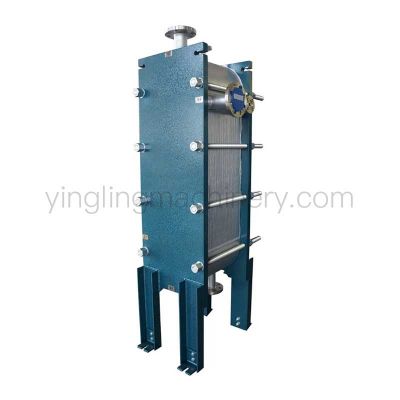

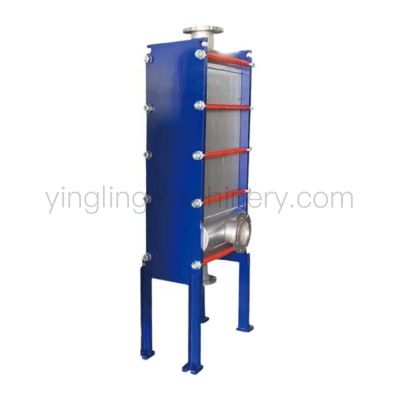

Heavy-Duty Welded Plate Heat Exchangers for High-Temperature & High-Pressure Industrial Processing

In demanding modern chemical processing, oil refining, refrigeration, and power generation environments, operational parameters often exceed the limits of traditional elastomeric gaskets. When dealing with aggressive media, hazardous chemicals, extreme pressure differentials, or high-temperature cycles, plant engineers rely on modern welded plate technology. Engineered to replace bulky shell-and-tube units while offering 100% leak-proof reliability, our high-performance welded plate heat exchanger series delivers maximum thermal efficiency in the most challenging industrial process environments.

Whether you require a fully welded plate type heat exchanger for aggressive solvent condensation or a compact block design for high-pressure gas heat recovery, our custom-engineered solutions ensure continuous uptime, low maintenance, and maximum thermodynamic performance.

Technical Features & Engineering Innovations

Our fully welded plate heat exchanger lineup combines the high heat transfer efficiency of corrugated plate technology with the structural integrity of welded pressure vessels. Key engineering features include:

100% Gasket-Free All-Welded Construction: Flow channels are fully sealed via automated TIG, laser, or submerged arc welding. By eliminating rubber gaskets entirely, these units remove the risk of gasket swelling, chemical degradation, or thermal degradation under severe operating conditions.

Corrugated High-Efficiency Plate Design: Each welded plate features precision-engineered chevron patterns that generate intense micro-turbulence at low fluid velocities. This results in heat transfer coefficients up to 3 to 5 times higher than conventional shell-and-tube exchangers, dramatically reducing required surface area and installation footprint.

Compact Footprint & Structural Weight Reduction: By maximizing heat transfer density, our units occupy up to 70% to 80% less space and weigh significantly less than equivalent shell-and-tube process equipment—ideal for skid-mounted systems, offshore platforms, and retrofits.

Exotic Metallurgy for Severe Corrosion Resistance: Available in a wide selection of corrosion-resistant alloys, including AISI 316L, 254 SMO, Super Duplex, Titanium, Hastelloy® C-276, and Nickel alloys, ensuring long service life even with acidic or halide-rich media.

Wide Thermal & Mechanical Operating Envelope: Capable of handling temperatures from cryogenic levels (-196°C) up to +400°C+ and operating pressures reaching up to 40 bar–100 bar, providing exceptional flexibility for harsh industrial duties.

Technical Specifications & Architecture Comparison

Key Target Industrial Applications

Our versatile welded plate type heat exchanger models are widely deployed across critical global process industries:

Petrochemical & Oil Refining: Gas dehydration, amine heat recovery, crude oil preheating, heavy hydrocarbon condensing, and refinery overhead condensation.

Chemical Processing: Heating and cooling of strong organic/inorganic acids, specialty solvents, polymers, and hazardous chemical intermediates.

Industrial Refrigeration & HVAC: High-efficiency evaporators, condensers, and economizers handling synthetic refrigerants, ammonia (R717), and CO2 (R744).

Power & Energy Sector: High-pressure steam condensation, boiler feed preheating, geothermal energy extraction, and waste heat recovery (WHR) loops.

Paper & Pulp Processing: Black liquor heating, condensate cooling, and heat recovery from corrosive pulp washing process streams.

Operational Advantages: Lower Total Cost of Ownership (TCO)

Upgrading your plant’s thermal loop to a heavy-duty welded plate heat exchanger offers clear economic advantages:

Minimized Maintenance & Zero Gasket Replacements: Eliminates frequent gasket inspection and replacement costs, drastically cutting planned maintenance downtime.

Superior Energy Recovery: High thermal efficiency allows for close temperature approach (down to 1°C–2°C), recovering valuable heat energy and significantly lowering boiler fuel and utility costs.

Low Fouling Tendencies: High-velocity turbulent flow creates a natural self-cleaning action on the welded plate surfaces, reducing scale accumulation and cleaning frequency.

Custom Thermal Calculations & Quality Assurance

Selecting the optimal welded plate type heat exchanger requires exact thermodynamic calculations, stress analysis, and fluid compatibility checks. Our engineering team utilizes advanced software to size each unit according to your exact process parameters, allowable pressure drops, and thermal duties.

Every unit undergoes rigorous non-destructive testing (NDT), hydrostatic pressure testing, helium leak detection, and radiography under strict ASME Section VIII Div 1, CE/PED, and ISO 9001 quality management standards.

Request a Custom Thermal Calculation & Quote Today

Looking to optimize your chemical processing loop or replace an aging shell-and-tube exchanger with a modern, high-efficiency unit? Contact our engineering specialists today to receive a complete thermal datasheet and competitive B2B factory quote within 24 hours.

Contact Our Thermal Engineering Team to Get Started Today!
