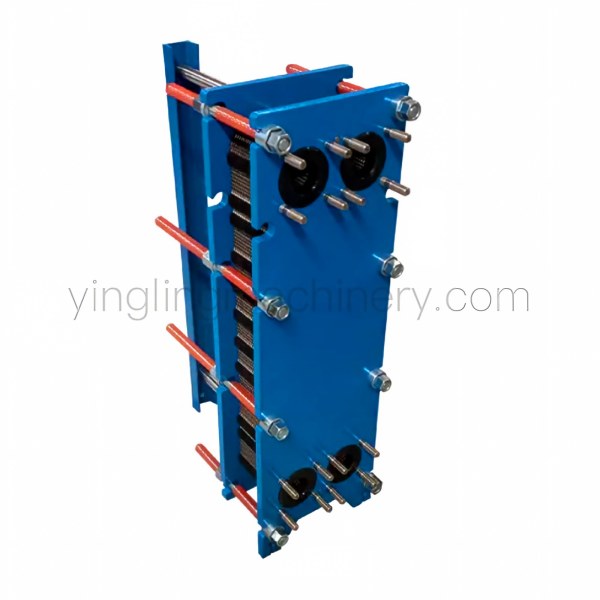

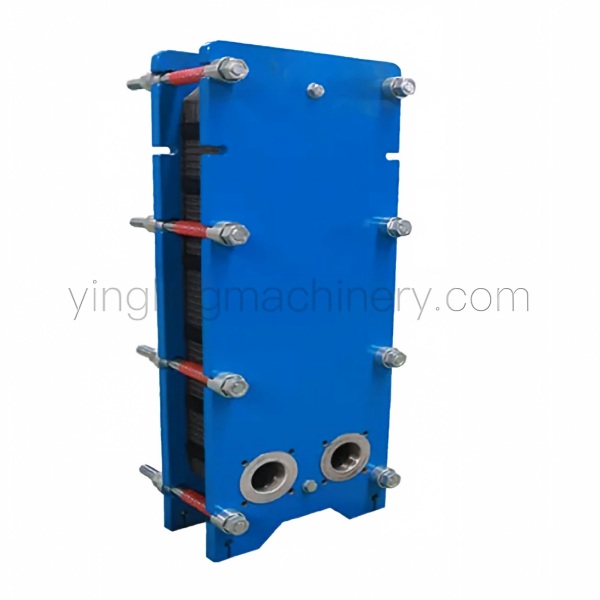

Versatile Industrial Plate Heat Exchanger with Flexible Adaptability for Diverse Thermal Conditions
1.High Heat Transfer Efficiency & Energy Saving.
2.Compact Design & Space Saving.
3.Modular Design & Easy Maintenance.
4.Flexible Configuration for Various Applications.
5.Reliable Sealing & Stable Operation.
6.Various Materials & Excellent Corrosion Resistance
7.Efficient Heat Exchange with Low Temperature Difference
Versatile Industrial Plate Heat Exchanger with Flexible Adaptability for Diverse Thermal Conditions
Dynamic Thermal Transfer Solutions Designed for Variable Flow Rates and Fluctuation Loads
In modern district heating networks, commercial HVAC systems, and heavy process manufacturing, fluid operational parameters are rarely constant. Flow rates, inlet temperatures, and system pressures change rapidly based on seasonal demands and load shifts. The high-adaptability central heating plate heat exchanger from Yingling Machinery is engineered specifically to address these challenges. Featuring a modular frame design and customizable plate corrugation patterns, our heat exchangers can be dynamically reconfigured or scaled to balance optimal heat transfer coefficients with allowable hydraulic pressure drops.
Whether operating as a primary isolation substation in urban district heating, integrated as a commercial hot water plate heat exchanger for large hospitality and hospital facilities, or handling multi-stage process cooling, Yingling provides rugged, energy-efficient plate heat transfer units tailored to your precise operational conditions.
Technical Specifications & Flexible Customization Parameters
Our customizable heat exchangers offer broad thermal profiles to accommodate standard water-to-water duties as well as demanding chemical and high-temperature loops:
| Technical Parameter | Flexible Specification Range |
| Primary Application Scope | Central Heating / District Heating Substations, Domestic Hot Water (DHW) |
| Thermal Efficiency | Up to 95%+ (Temperature approach down to 1°C) |
| Plate Channel Patterns | High-Theta (Max thermal length) / Low-Theta (Low pressure drop) / Mixed |
| Plate Material Options | Stainless Steel (AISI 304, 316L), Titanium, SMO 254, Hastelloy C-276 |
| Gasket Sealing Alloys | NBR / EPDM (High-Temp District Heating) / Viton (FKM) |
| Max Working Pressure | 10 bar, 16 bar, 25 bar (1.0 MPa to 2.5 MPa / 150 - 300 PSI) |
| Operating Temperature | -35°C to +180°C |
| Connection Types | Flanged (ANSI / DIN standard), Threaded, or Victaulic Connections |
Why Choose Yingling Flexible Plate Heat Exchangers?
1. Superior Thermal Flexibility for Central Heating Systems
In municipal and residential heating projects, heating loads vary significantly between peak winter months and transition seasons. Installing a central heating plate heat exchanger with Yingling’s variable plate arrangement allows system integrators to achieve low logarithmic mean temperature differences (LMTD) and precise supply-side temperature regulation, protecting boilers and heat pumps from thermal shocks while ensuring continuous user comfort.
2. Rapid Response for Commercial Hot Water Requirements
Commercial buildings, such as hotels, commercial laundries, universities, and hospitals, require high volumes of safe, sanitary hot water on demand. Utilizing our commercial hot water plate heat exchanger design ensures rapid thermal response during sudden peak usage periods. Compact, anti-scaling plate geometry reduces domestic hot water storage requirements and significantly mitigates the risk of bacterial fouling in hot water circuits.
3. Modular Expandability & Flexible Design Adjustments

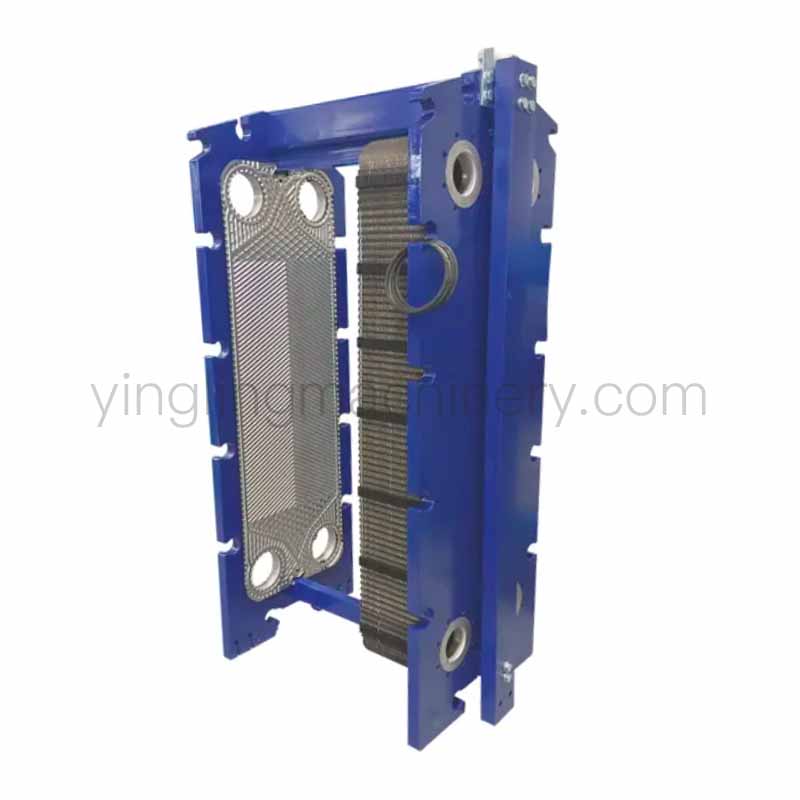

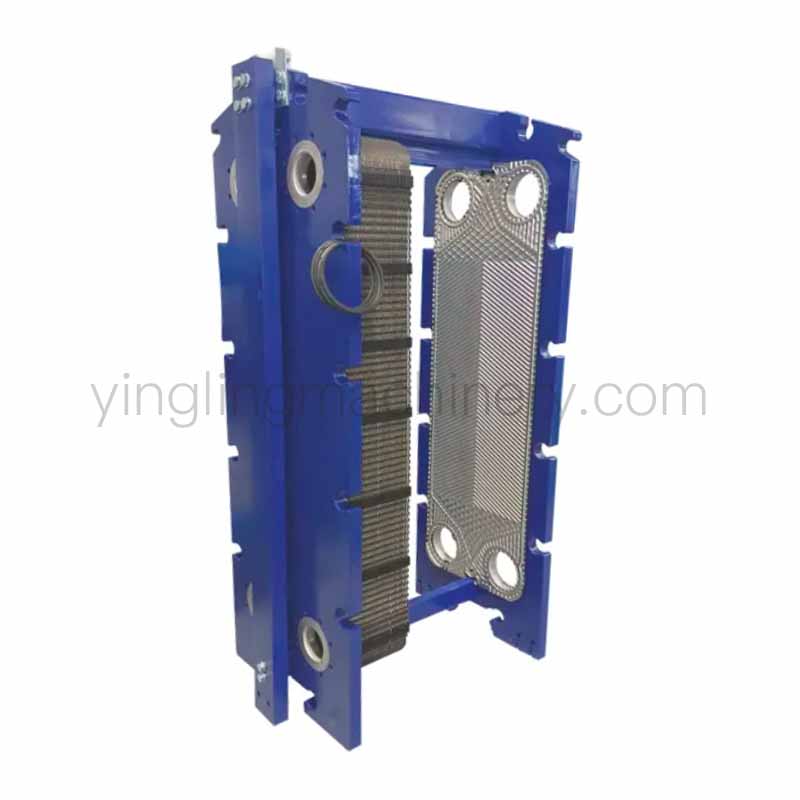

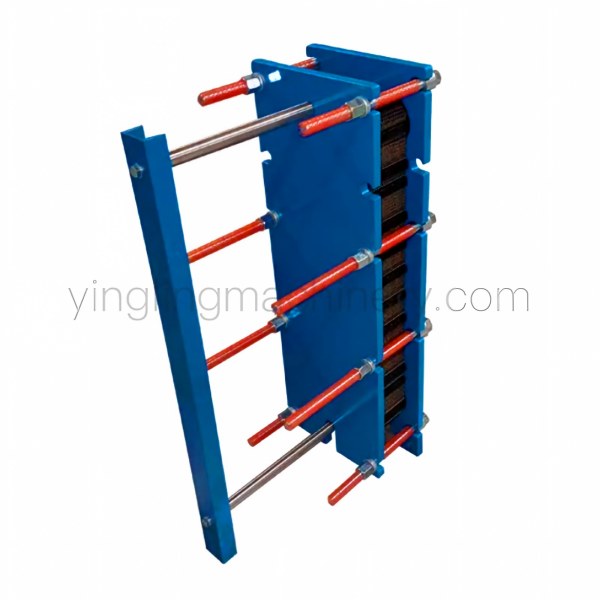

Plant operational capacity changes over time. Unlike welded or shell-and-tube heat exchangers, Yingling’s gasketed frame structure lets engineers easily add or remove thermal plates directly on-site. If heating load requirements double in the future, simply adjust the tie-rods and insert additional plate packs without changing the underlying pipe infrastructure or purchasing a new unit.
4. OEM Direct Replacement Compatibility
Maintaining existing central heating substations or commercial water heaters? Yingling manufactures 100% precision-fit direct replacement plates and elastomeric gaskets compatible with major international thermal brands (including Alfa Laval, GEA/Kelvion, Sondex, Tranter, and APV). Upgrading your maintenance inventory with Yingling components restores original system performance at 30% to 50% lower capital expenditure.
Target Engineering & Commercial Applications
Our adaptable plate thermal units deliver consistent operational reliability across multiple demanding sectors:
District Heating & Municipal Infrastructure: Hydraulically isolating primary boiler or geothermal loops from secondary building distribution systems.
Commercial Building Services: Serving as a dedicated commercial hot water plate heat exchanger for hotels, resorts, office complexes, and healthcare centers.
HVAC & Thermal Energy Storage: Integrating thermal isolation barriers for cooling towers, heat recovery loops, and ice-storage chillers.
Industrial Utility Heating: Process water heating, jacket water heat recovery, and boiler feed water preheating.
Quality Manufacturing & Engineering Support from Yingling
Precision Hydraulic Pressing: Every plate is pressed in a single step using high-tonnage hydraulic presses to guarantee uniform channel depth and stress distribution.
100% Non-Destructive Quality Testing: Assembled plate packs undergo rigorous hydrostatic testing and helium/dye penetrant inspection to prevent cross-contamination between media channels.
Tailored Thermal Calculations: Our application engineers use specialized thermal simulation software to select the exact plate quantity, flow arrangement, and theta distribution based on your flow rates and pressure limitations.
Request Your Customized Thermal Calculation Today
Need a reliable, efficient central heating plate heat exchanger or an upgrade for your commercial hot water plate heat exchanger loop? Contact our engineering team to receive a free thermal calculation sheet, CAD layout models, and a competitive factory-direct B2B quote.
