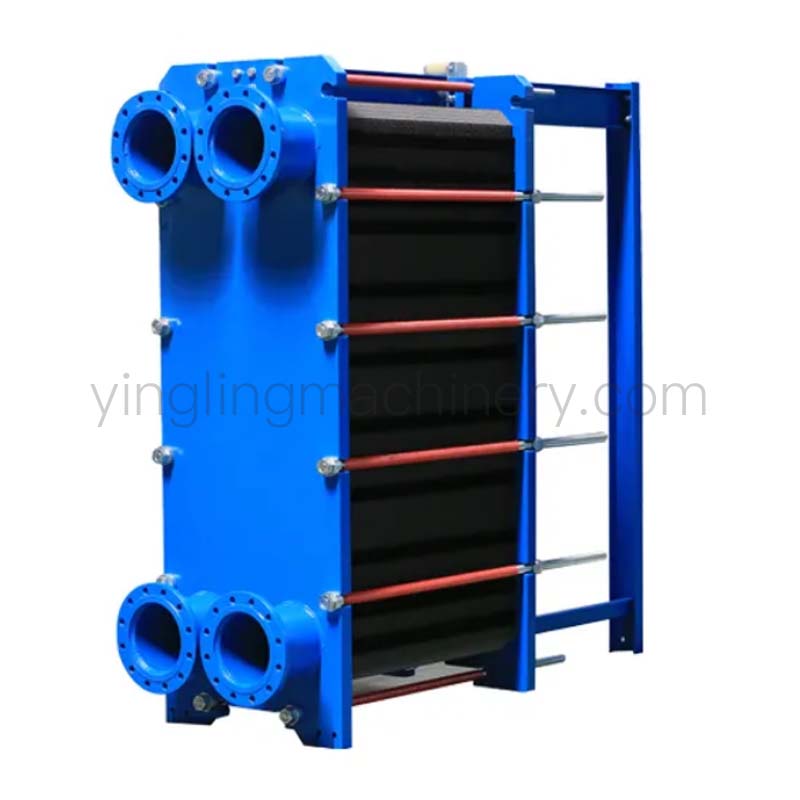

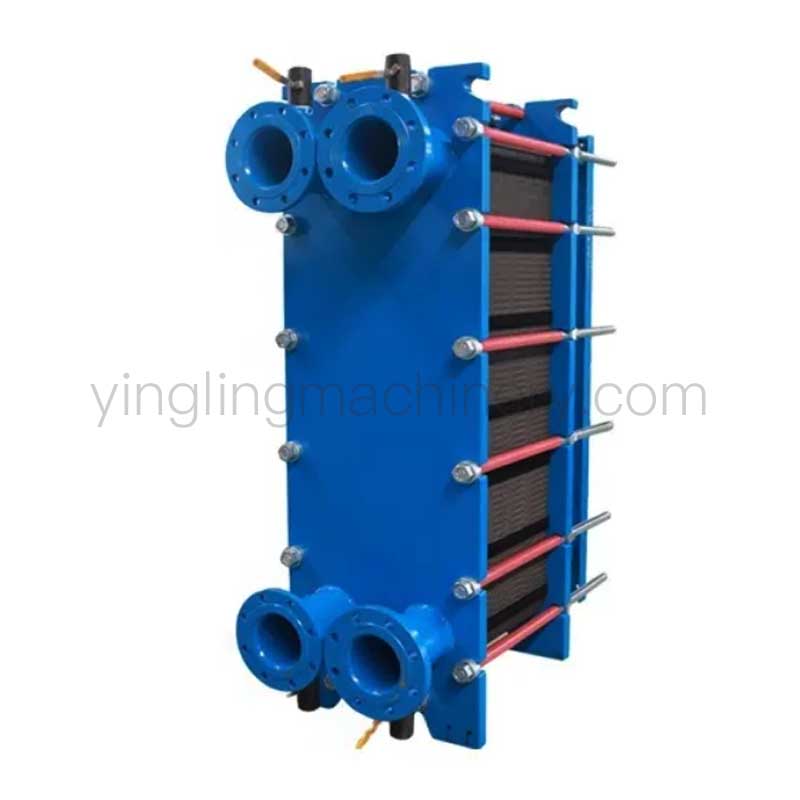

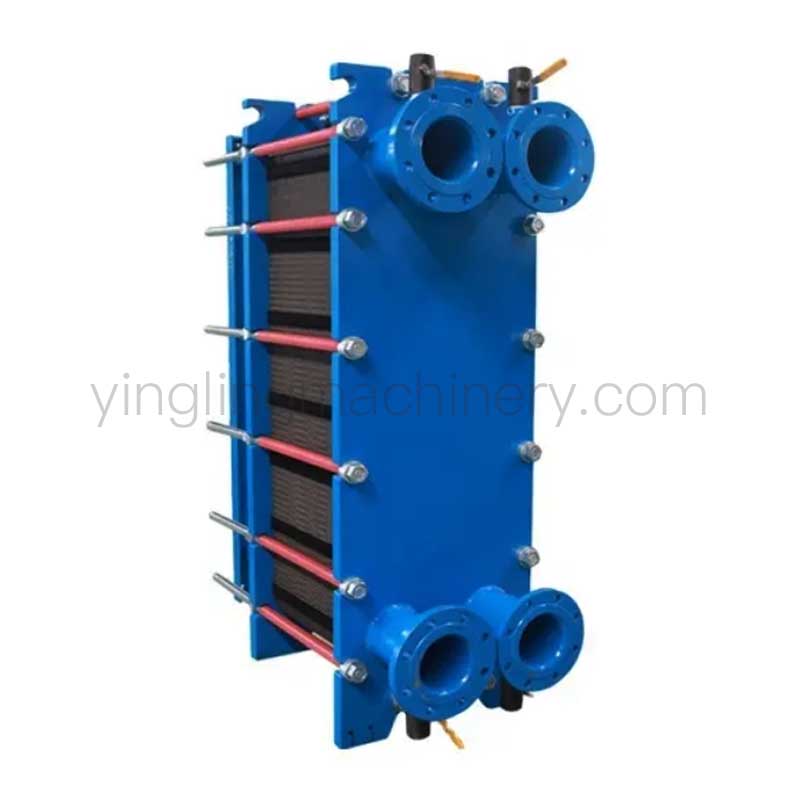

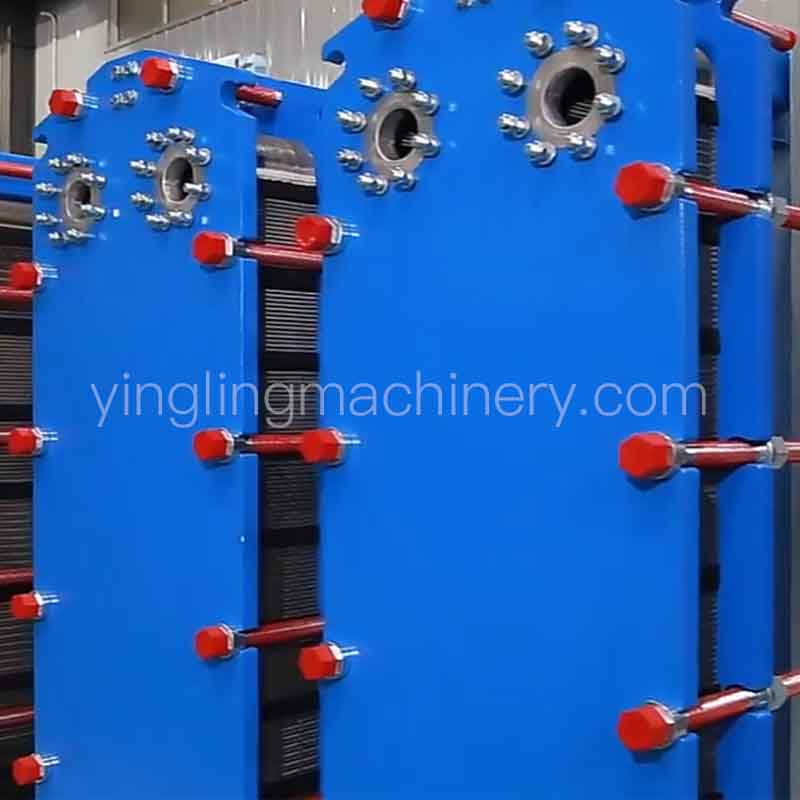

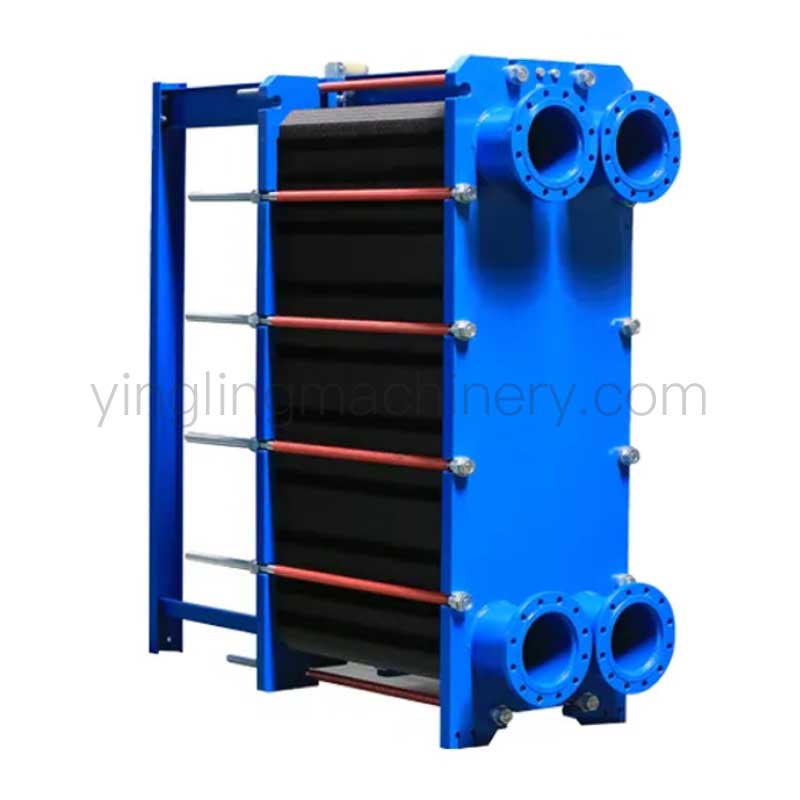

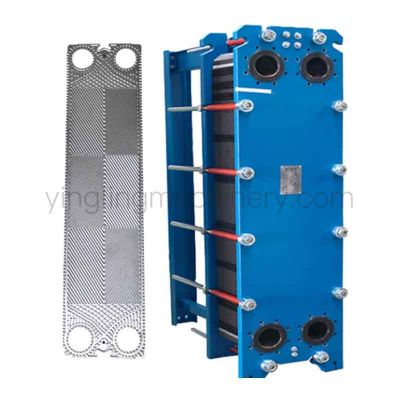

Heavy-Duty Corrosion-Resistant Plate Heat Exchanger for Extended Equipment Lifespan
1.High Heat Transfer Efficiency & Energy Saving.
2.Compact Design & Space Saving.
3.Modular Design & Easy Maintenance.
4.Flexible Configuration for Various Applications.
5.Reliable Sealing & Stable Operation.
6.Various Materials & Excellent Corrosion Resistance
7.Efficient Heat Exchange with Low Temperature Difference
Operating in aggressive thermal processing environments—such as marine seawater loops, acidic chemical processing, or brine concentration—demands heat transfer equipment capable of withstanding severe fluid corrosion without structural degradation. Yingling Machinery is a premier plate heat exchanger supplier, manufacturing high-performance corrosion-resistant gasketed plate heat exchangers designed to maximize thermal efficiency and drastically extend operational service life.
Engineered with advanced anti-corrosive metallurgies and specialized fluorinated polymers, our corrosion-resistant plate heat exchangers eliminate premature wall thinning, stress corrosion cracking, and gasket degradation. Whether you need a standalone corrosion-proof thermal unit or a full-scale OEM plate heat exchanger built to exact dimensional and pressure specifications, Yingling Machinery provides factory-direct solutions engineered for extreme operational endurance.
Advanced Metallurgies & Polymers for Severe Corrosive Media
Standard stainless steels (such as AISI 304 or 316L) rapidly deteriorate when exposed to high chloride concentrations, organic acids, or halogenated compounds. As a specialized plate heat exchanger supplier, we offer an extensive portfolio of high-grade anti-corrosive materials tailored to your specific process chemistry:
Titanium Grade 1 & Grade 2: Exceptionally resistant to seawater pitting, chlorine solutions, hypochlorites, and wet chlorine gases, making it the ideal choice for marine cooling and desalination systems.
Hastelloy® C-276: Engineered for aggressive inorganic acids (such as sulfuric and hydrochloric acid), phosphoric acid, ferric chloride, and highly oxidative chemical media.
SMO 254 (High-Moly Stainless Steel): Designed for high-chloride environments where standard 316L fails, delivering outstanding resistance to crevice corrosion and pitting at a cost-effective price point.
Nickel & Alloy C-22: Superior performance under high-temperature caustic environments, brackish water loops, and complex petrochemical process streams.
Specialized Fluorinated Elastomers: Molded gaskets utilizing Viton/FKM, Fluororubber, and specialized EPDM compounds engineered to maintain sealing resilience against aggressive solvents and high-temperature chemicals.
Custom OEM Plate Heat Exchanger Engineering & Manufacturing
Every industrial process presents unique physical constraints, pressure ratings, and thermal duties. As an established OEM plate heat exchanger partner, Yingling Machinery works closely with global EPC contractors, plant operators, and original equipment builders to deliver tailored thermal transfer systems.
Our OEM Customization Capabilities Include:
Custom Hydraulic & Thermal Calculations: Exact plate chevron pattern selection (High-Theta vs. Low-Theta) to balance heat transfer coefficients against allowable system pressure drop.
Flexible Frame & Connection Configurations: Carbon steel frame plates lined with corrosion-proof titanium or stainless steel port linings, available with ANSI, DIN, or JIS flanged or threaded connections.
Direct Drop-In Dimensions: Full engineering capability to build direct-fit replacement units that match existing piping centerlines and mounting footprints for effortless field retrofits.
Strict Quality Assurance & Pinhole Leak Testing
Premature fluid leakage in corrosive media processing can cause severe environmental hazards, costly downtime, and safety risks. Yingling Machinery enforces zero-defect quality control across all manufacturing stages:
100% Dye-Penetrant Pinhole Detection: Every pressed alloy plate undergoes comprehensive dye-penetrant testing to eliminate micro-fractures, stress cracks, or material porosity before frame assembly.
Hydrostatic Pressure Testing: Completed OEM plate heat exchanger assemblies are hydrostatically leak-tested at up to 1.5× the design working pressure to guarantee total structural integrity.
Material Traceability: Full mill test certificates (MTC) and chemical composition reports provided for all raw plate coils and rubber gasket batches.
Key Industry Applications
Built to survive the toughest chemical environments, our corrosion-resistant thermal solutions serve critical industrial loops worldwide:
Marine & Shipbuilding: Central seawater cooling, ballast water heat treatment, engine jacket cooling, and offshore oil platform coolers.
Chemical & Petrochemical Processing: Acid cooling, solvent heat recovery, brine concentration, and organic synthesis heat exchange.
Mining & Metallurgy: Hydrometallurgical leaching, acid recovery, copper/nickel refining, and electrolyte solution heating.
Desalination & Water Treatment: Multi-stage flash evaporation heat recovery, reverse osmosis pre-heating, and industrial wastewater treatment.
Partner with Yingling Machinery for Corrosion-Proof Thermal Reliability
Stop replacing degraded heat exchanger plates every few months. Upgrade to Yingling Machinery's field-proven corrosion-resistant units and lower your long-term Total Cost of Ownership (TCO). As your trusted plate heat exchanger supplier, we offer fast engineering evaluations, factory-direct pricing, and short global lead times.
Contact our application engineers today with your fluid composition, operating temperature, and flow rate parameters to receive a custom OEM plate heat exchanger quotation within 24 hours.
