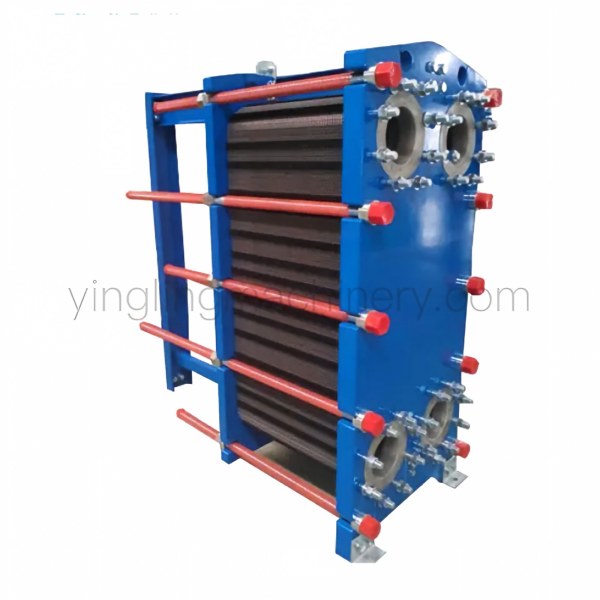

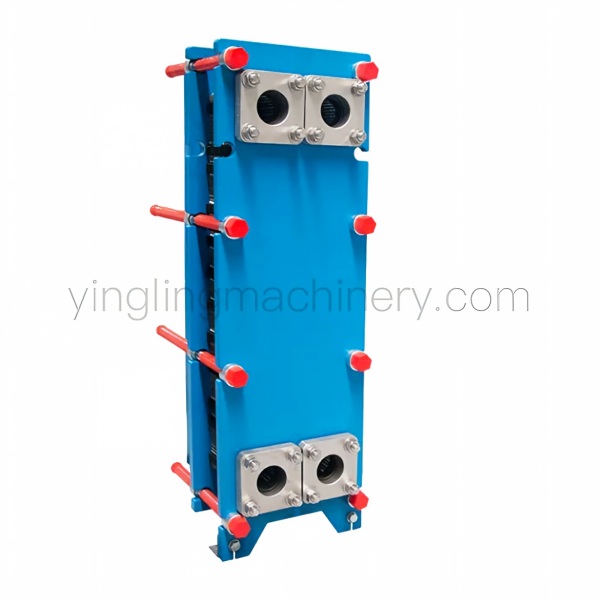

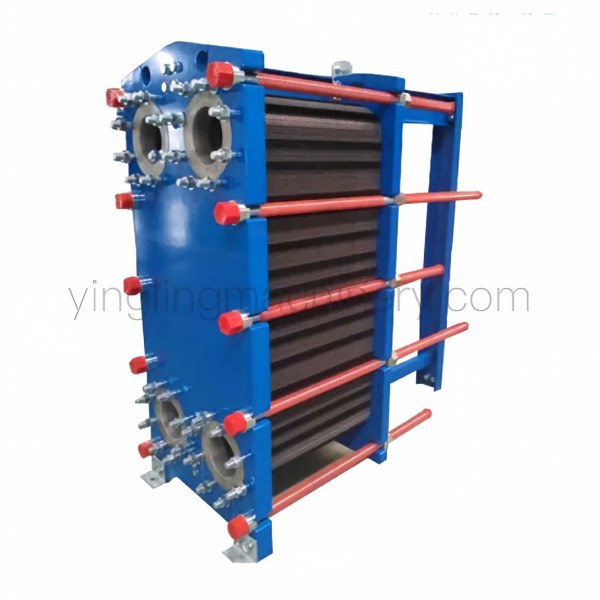

High-Efficiency Industrial Plate Heat Exchanger for Enhanced Refrigeration & Thermal Production
1.High Heat Transfer Efficiency & Energy Saving.
2.Compact Design & Space Saving.
3.Modular Design & Easy Maintenance.
4.Flexible Configuration for Various Applications.
5.Reliable Sealing & Stable Operation.
6.Various Materials & Excellent Corrosion Resistance
7.Efficient Heat Exchange with Low Temperature Difference
High-Efficiency Industrial Plate Heat Exchanger for Enhanced Refrigeration & Thermal Production
Advanced Phase-Change & Liquid Heat Transfer Engineering for Maximum Operational COP
In modern refrigeration, commercial cooling, and heavy process manufacturing, maintaining precise temperature control while optimizing power consumption is critical to overall production efficiency. The high-performance refrigeration plate heat exchanger series from Yingling Machinery is specially engineered to provide superior heat transfer rates during demanding phase-change and liquid-to-liquid thermal cycles. Featuring specialized deep-corrugated plates and optimized fluid distribution channels, our heat exchangers reduce thermal resistance and maximize turbulence, enabling industrial facilities to achieve higher system performance with significantly lower operating costs.
Whether you need a high-duty condenser plate heat exchanger for heat dissipation or a precision-engineered evaporator plate heat exchanger for chillers and direct expansion circuits, Yingling provides robust, factory-direct thermal transfer solutions designed for long-term reliability and peak efficiency.
Technical Specifications & Refrigeration Performance Parameters
Designed to handle diverse synthetic and natural refrigerants (such as R410a, R134a, R32, Glycol, and Ammonia solutions), our industrial PHE units offer flexible configuration options:
| Engineering Parameter | Operational Specification / Capability |
| Primary Functional Duty | Evaporator, Condenser, Economizer, Sub-cooler, Liquid-to-Liquid |
| Heat Transfer Efficiency | Up to 95%+ (Logarithmic Mean Temperature Difference down to 1°C) |
| Plate Geometry Options | Asymmetric & Symmetric channels for balanced phase-change flow |
| Plate Materials | Stainless Steel (AISI 304, 316L), Titanium (Gr. 1/2), SMO 254 |
| Gasket Materials | High-temp NBR, EPDM (HVAC grade), Viton / FKM (Refrigerant safe) |
| Design Working Pressure | Up to 25 bar (2.5 MPa) / Custom high-pressure frames available |
| Operating Temperature Range | -40°C to +180°C |
| Connection Port Types | Soldered, Threaded, Flanged (DIN / ANSI), or Sanitary Tri-Clamp |
Key Performance Advantages for Industrial Cooling & Heating
1. Superior Phase-Change Efficiency in Refrigeration Loops
Standard heat exchangers often suffer from liquid distribution imbalance during phase transitions. Our advanced refrigeration plate heat exchanger models incorporate specialized inlet distributors that evenly disperse two-phase fluid across every channel. This prevents local overheating or under-evaporation, increasing overall system capacity and compressor stability.
2. High-Performance Condenser Duty
When operating as a condenser plate heat exchanger, the unit rapidly dissipates thermal energy from high-pressure superheated gas into water or cooling loops. The high internal turbulence accelerates vapor condensation while keeping gas-side pressure drop to a minimum, directly lowering compressor head pressure and saving energy.
3. Precise Temperature Approach for Evaporators
In chiller and refrigeration applications, an evaporator plate heat exchanger must achieve ultra-close approach temperatures to prevent fluid freezing while maintaining high evaporating pressures. Yingling’s optimized corrugation pattern allows temperature approach capabilities down to 1°C, maximizing the Coefficient of Performance (COP) of industrial chillers.
4. Compact Footprint & Low Refrigerant Charge
Compared to traditional shell-and-tube evaporators or condensers, Yingling’s plate heat exchangers require up to 70% less floor space and up to 80% less refrigerant charge. This not only minimizes equipment installation costs but also lowers environmental compliance risks and chemical inventory costs.
Diverse B2B Applications Across Global Industries
Our high-efficiency thermal units are widely deployed across critical cooling and processing sectors:
Commercial & Industrial Chillers: Operating as dedicated evaporators and condensers in air-cooled and water-cooled chillers.
Cold Chain & Food Processing: Quick-freezing lines, dairy cooling, beverage pasteurization, and cold storage refrigeration.
Heat Pump Systems: Serving as dual-duty evaporators/condensers in air-source and geothermal heat pump loops.
Process Fluid & Oil Cooling: Precise cooling of hydraulic oils, turbine fluids, and chemical reaction baths in manufacturing plants.
Why Partner with Yingling Machinery?
Over 10 Years of Precision Manufacturing Expertise: Equipped with high-tonnage hydraulic presses to manufacture high-precision pressed thermal plates and vulcanized elastomeric gaskets.
100% Direct-Fit Aftermarket Replacement Support: We manufacture OEM-compatible plates and gaskets for top international thermal brands (Alfa Laval, GEA/Kelvion, Sondex, APV, Tranter), offering 30% to 50% cost savings with identical performance standards.
Strict Quality Control & Testing: Every unit undergoes rigorous hydrostatic pressure tests and seal integrity checks prior to dispatch to ensure zero leakage in high-pressure gas/liquid environments.
Request Your Custom Thermal Calculation & Factory Quote
Ready to boost your production efficiency or upgrade your refrigeration plate heat exchanger infrastructure? Contact our application engineering team today for specialized thermal calculations, CAD drawings, and a direct B2B factory quote.
