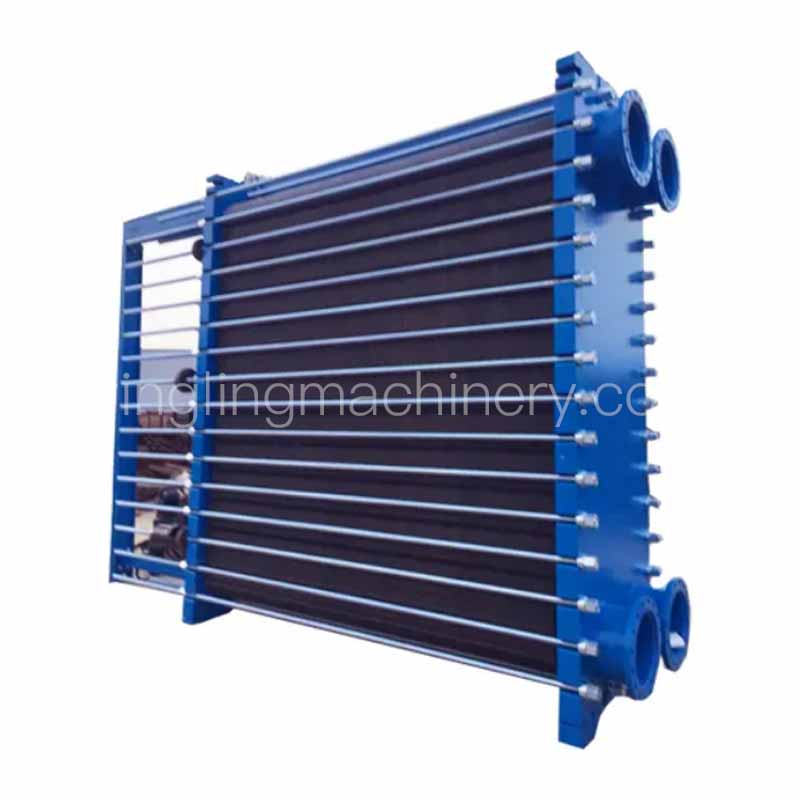

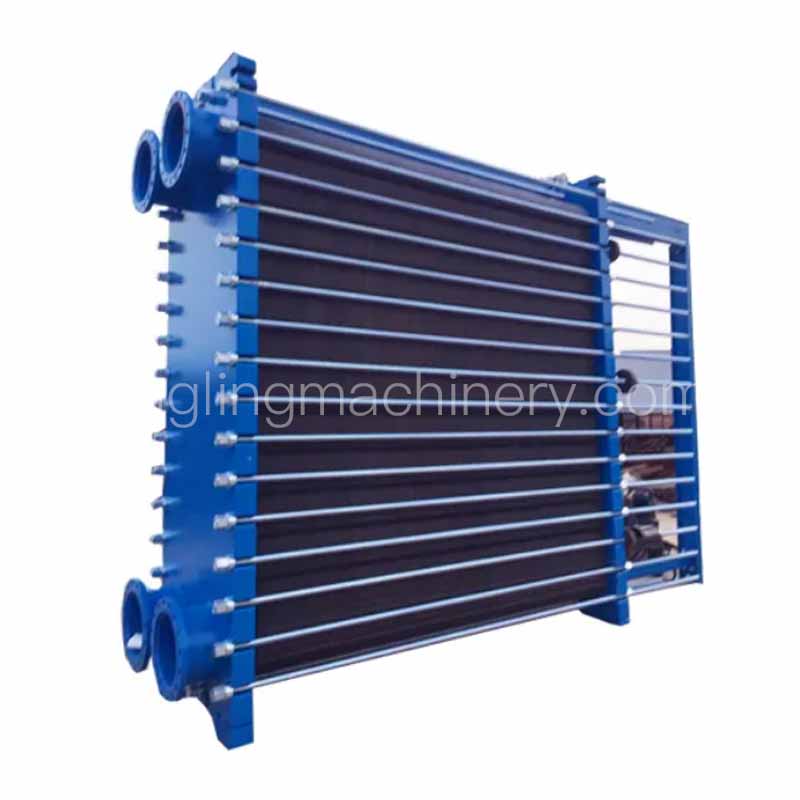

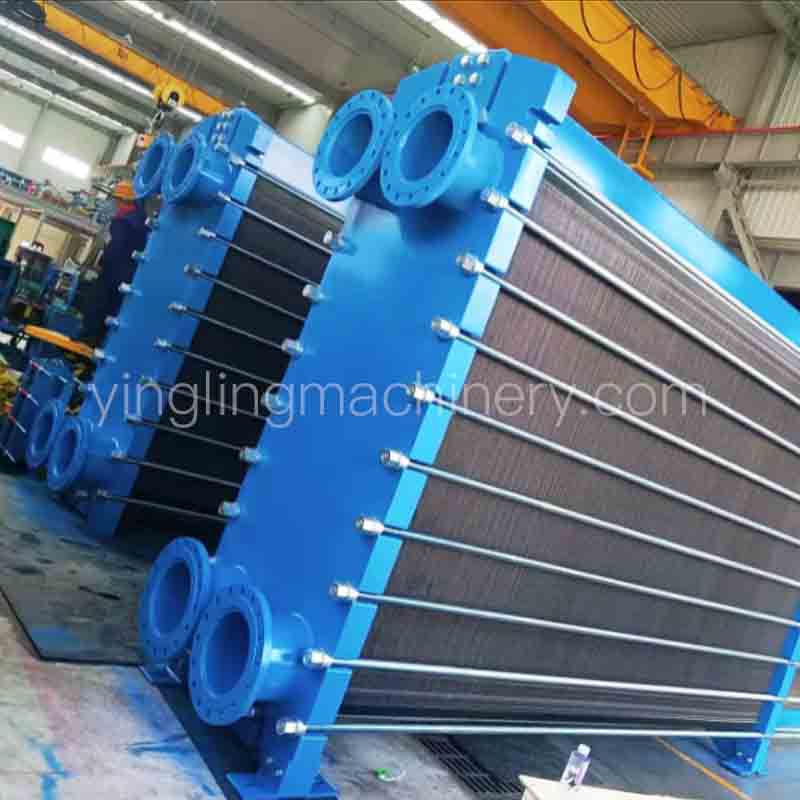

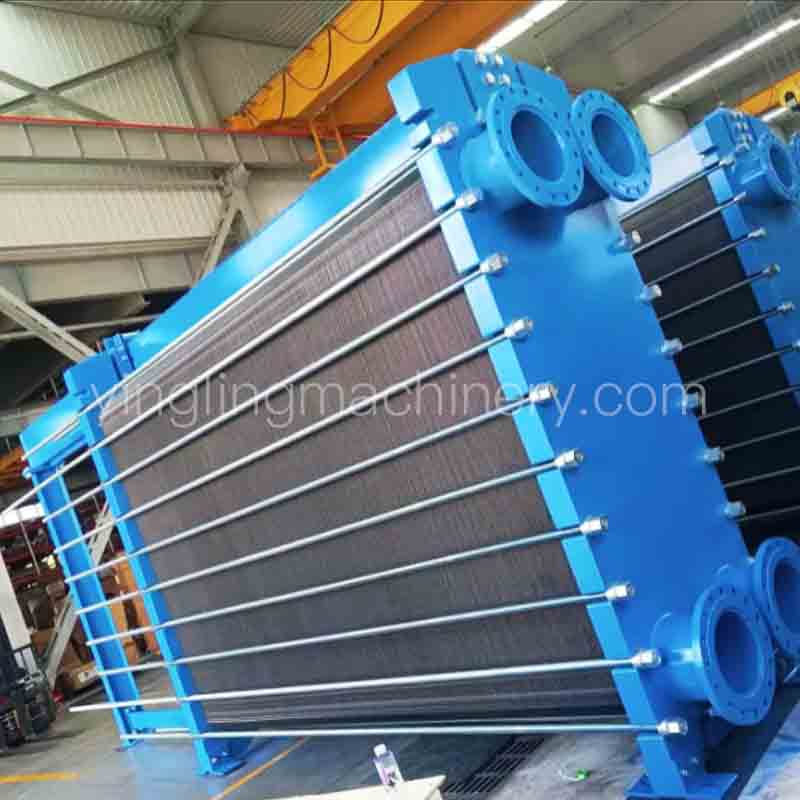

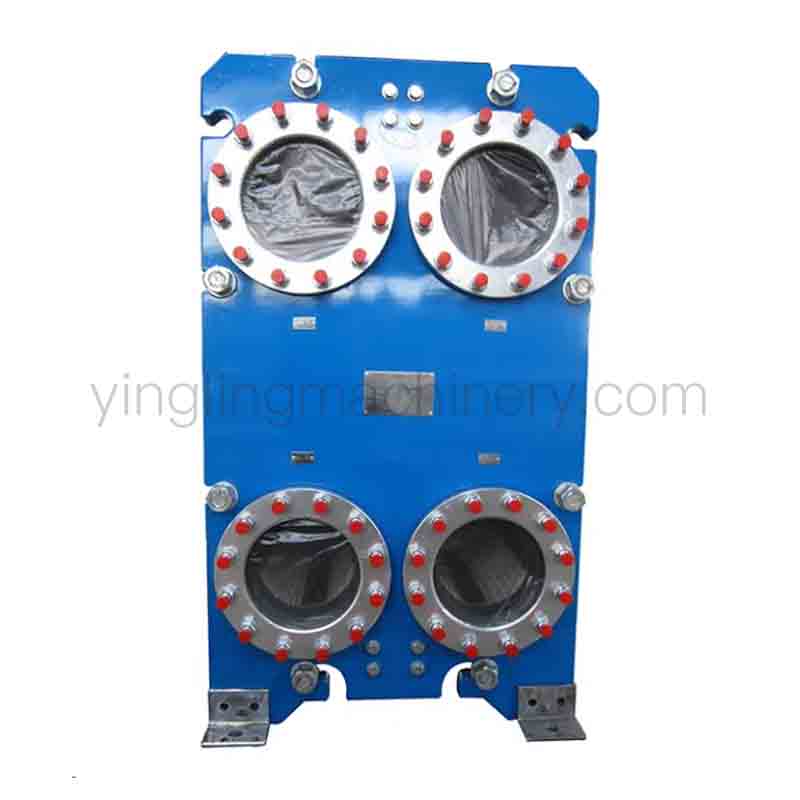

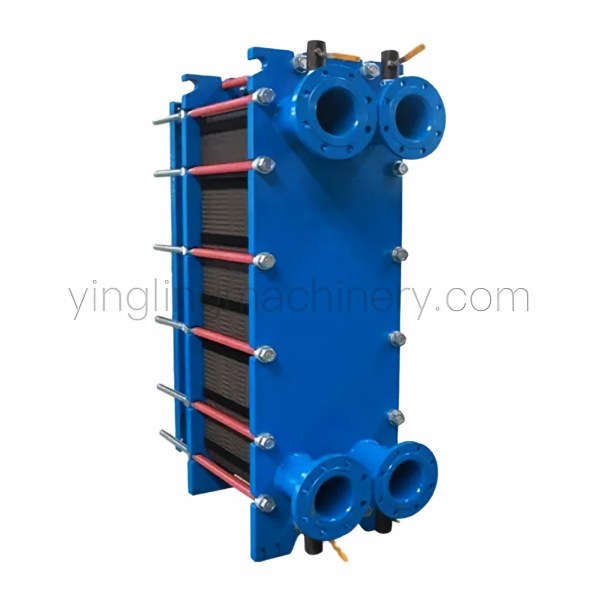

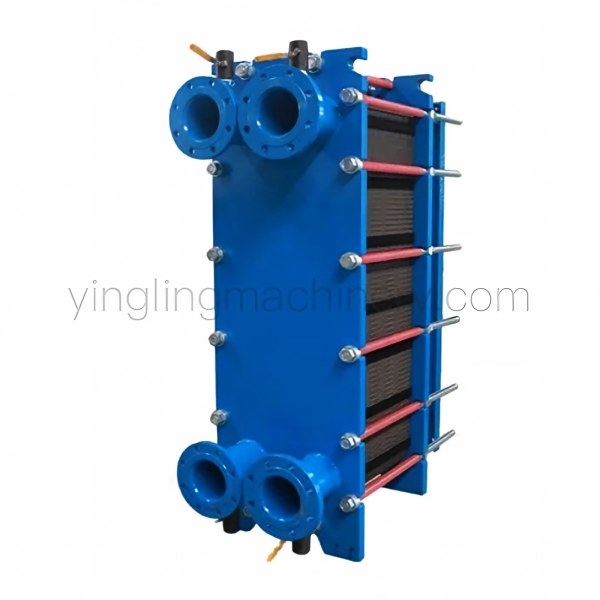

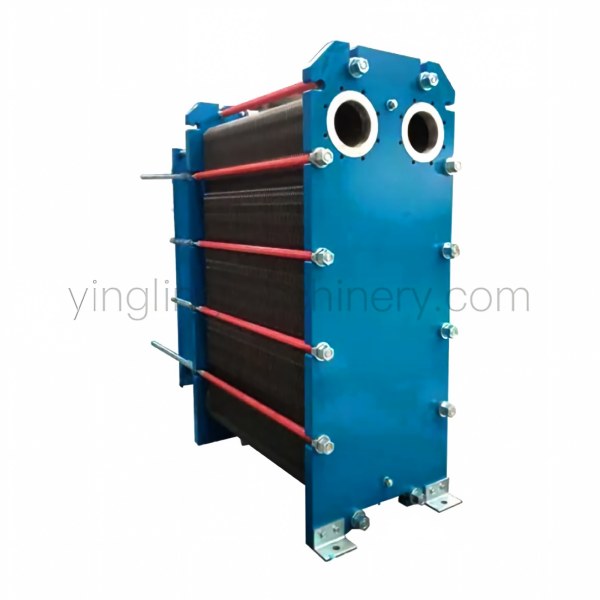

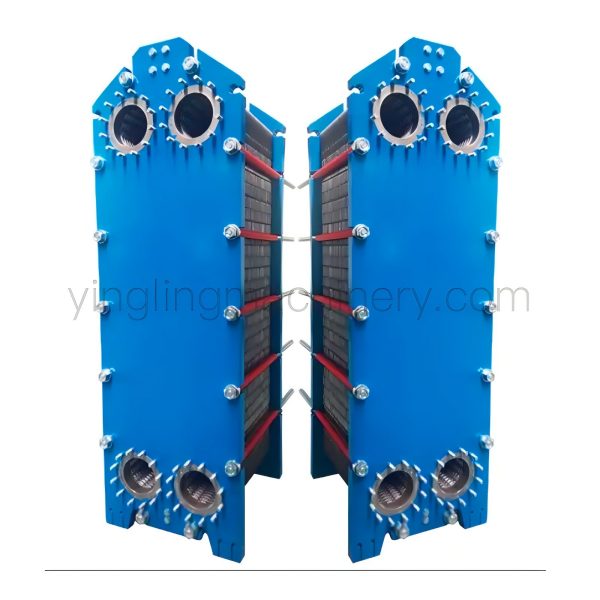

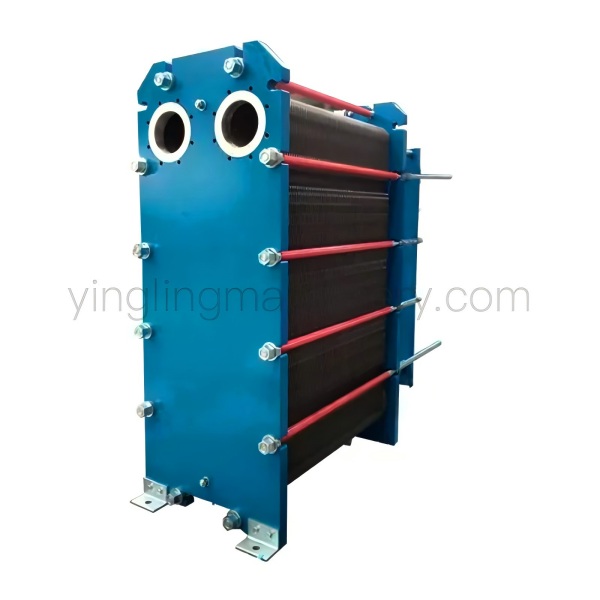

Advanced Technology Industrial Plate Heat Exchanger for Severe Chemical & Petrochemical Processing
1.High Heat Transfer Efficiency & Energy Saving.
2.Compact Design & Space Saving.
3.Modular Design & Easy Maintenance.
4.Flexible Configuration for Various Applications.
5.Reliable Sealing & Stable Operation.
6.Various Materials & Excellent Corrosion Resistance
7.Efficient Heat Exchange with Low Temperature Difference
Advanced Technology Industrial Plate Heat Exchanger for Severe Chemical & Petrochemical Processing
Heavy-Duty Thermal Engineering Designed for Harsh Media, Extreme Safety, and Maximum Uptime
In chemical refining, petrochemical synthesis, and hazardous fluid handling, process thermal equipment must withstand aggressive corrosive media, rapid thermal cycling, and high operating pressures. Standard shell-and-tube exchangers often struggle with severe fouling, bulky footprints, and high maintenance downtime. The advanced industrial plate heat exchanger series from Yingling Machinery is built with precision single-step hydraulic pressing technology and specialized anti-corrosion metallurgy to address these exact industrial challenges.
Engineered to meet stringent international safety standards, our fluid thermal units deliver thermal efficiency up to 95%, helping chemical plants lower steam consumption, recover low-grade waste energy, and maintain operational stability. Whether you require a specialized petrochemical plate heat exchanger for hydrocarbon cracking or a reliable plate heat exchanger for ammonia synthesis and refrigeration loops, Yingling offers factory-direct, highly engineered solutions designed for continuous processing reliability.
Technical Specifications & Chemical Grade Material Matrix
To ensure total fluid compatibility and zero cross-contamination, our heat exchangers can be customized with high-grade alloys and chemical-resistant elastomer gaskets:
| Technical Parameter | Specification / Engineering Options |
| Primary Industrial Duty | Chemical Heating/Cooling, Hydrocarbon Condensation, Ammonia Loops |
| Heat Transfer Efficiency | Up to 95%+ (Logarithmic Mean Temperature Difference down to 1°C) |
| Corrosion-Resistant Alloys | Stainless Steel (316L), Titanium (Gr.1/Gr.2), SMO 254, Hastelloy C-276, Nickel |
| Gasket & Seal Options | High-Temp NBR, EPDM, Viton / FKM, PTFE Encapsulated Gaskets |
| Design Pressure Rating | Up to 25 bar (2.5 MPa / 360 PSI) / Custom High-Pressure Skid Units |
| Operating Temperature | -40°C to +180°C |
| Connection Types | Flanged (DIN / ANSI B16.5), Lined Titanium Ports, Weld Neck Connections |
| Safety Features | Double-seal gasket design with leak detection grooves to prevent cross-mixing |
Key Advantages for High-Risk & Hazardous Chemical Applications
1. Advanced Manufacturing & High-Precision Plate Corrugation
Manufactured using high-tonnage hydraulic presses, Yingling thermal plates feature uniform draw depths and high mechanical strength. The optimized chevron corrugated pattern promotes extreme fluid turbulence, breaking boundary layers to maximize heat transfer rates while actively preventing chemical scale and bio-fouling build-up.
2. High Corrosion Resistance in Petrochemical Operations
Processing sour water, acidic fluids, or heavy aromatics requires superior material integrity. As a heavy-duty petrochemical plate heat exchanger, our units can be specified in Titanium, Hastelloy, or SMO 254. This corrosion resistance ensures long service life in harsh environments like refinery desulfurization, gas sweetening, and solvent recovery.
3. Precision Engineering for Severe Chemical Processing
Integrating a chemical process heat exchanger into continuous reaction loops demands tight temperature control to maintain yield quality. Yingling’s close-approach thermal capabilities ( temperature difference) allow exact thermal regulation in reactor jacket cooling, acid concentration, and chemical waste heat recovery circuits.
4. Leak-Proof Design for Hazardous Ammonia Circuits
Handling toxic or volatile media requires zero compromise on seal integrity. Serving as a dedicated plate heat exchanger for ammonia (in fertilizer plants, chemical refrigeration, or industrial synthesis), our units feature double-gasket leak safety grooves. Any accidental gasket breach is directed safely outward rather than mixing process fluids, protecting plant personnel and environment.
Primary B2B Applications Across Chemical Sectors
Our specialized chemical-grade heat exchangers are trusted by engineers across worldwide processing industries:
Petrochemical & Oil Refining: Crude distillation heat recovery, hydrocarbon liquid cooling, and lube oil thermal management.
Fine & Heavy Chemical Processing: Organic/inorganic acid cooling, caustic soda concentration, and polymer reaction fluid regulation.
Fertilizer & Ammonia Plants: Acting as a specialized plate heat exchanger for ammonia absorption, condensation, and synthesis gas cooling.
Pharmaceutical & Specialty Chemicals: High-purity solvent condensation, batch reaction heating, and sanitary utility loops.
Why Partner with Yingling Machinery?
Over 10 Years of Advanced PHE Manufacturing: Specialized production facility focusing on high-tonnage pressed metal plates, vulcanized gaskets, and custom thermal skids.
100% Direct-Fit OEM Replacement Support: We produce precision-engineered aftermarket plates and gaskets compatible with major global brands, delivering 30% to 50% capital savings.
Uncompromised Quality Inspection: Every plate undergoes dye-penetrant seal checks, and fully assembled frame units are subject to hydrostatic testing prior to shipment.
Request Your Chemical Thermal Calculation & Factory Quote
Looking to upgrade your chemical process heat exchanger or source a custom petrochemical plate heat exchanger? Contact our technical engineering team today for custom sizing calculations, CAD models, and a competitive factory-direct quote.
