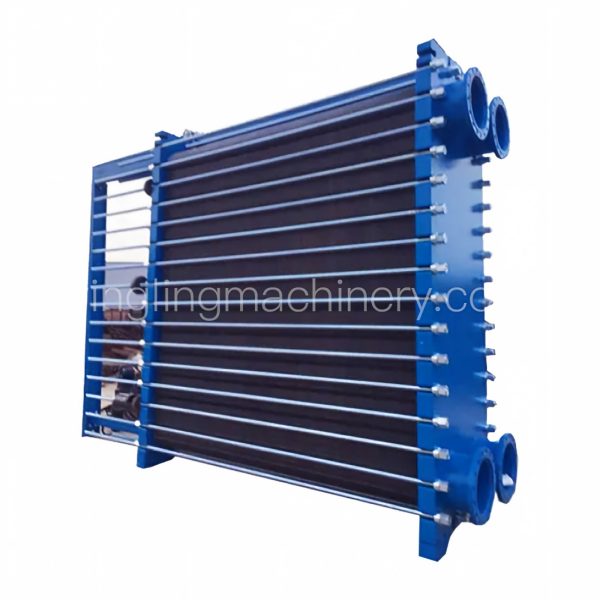

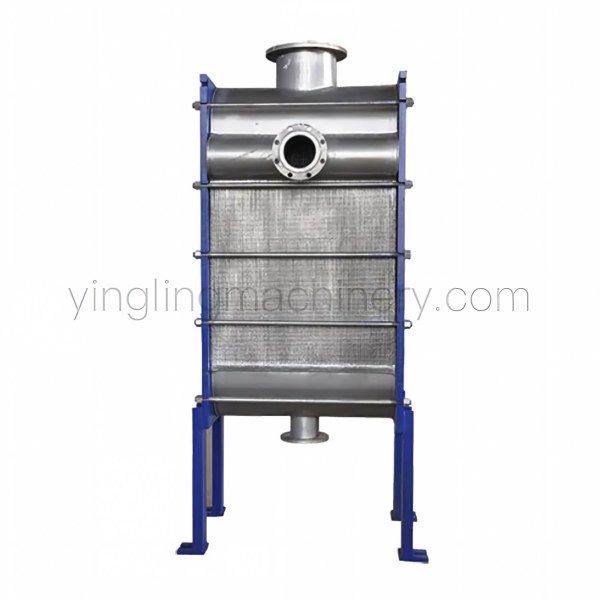

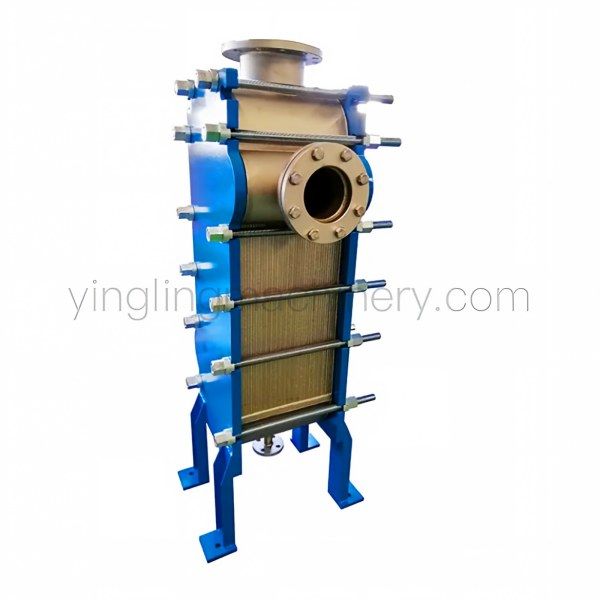

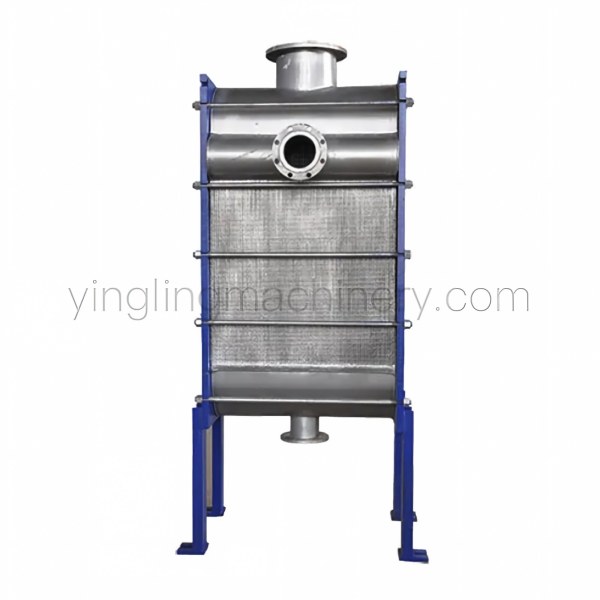

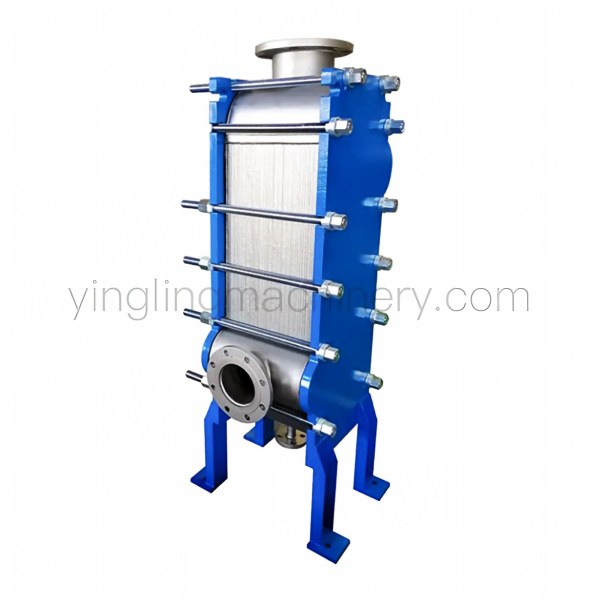

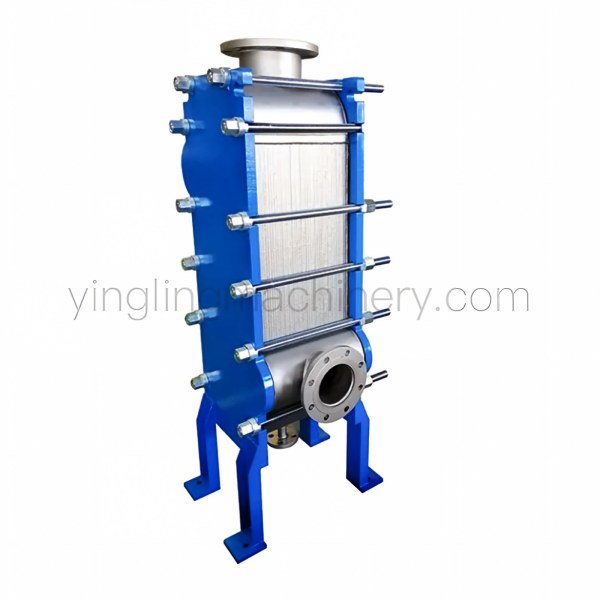

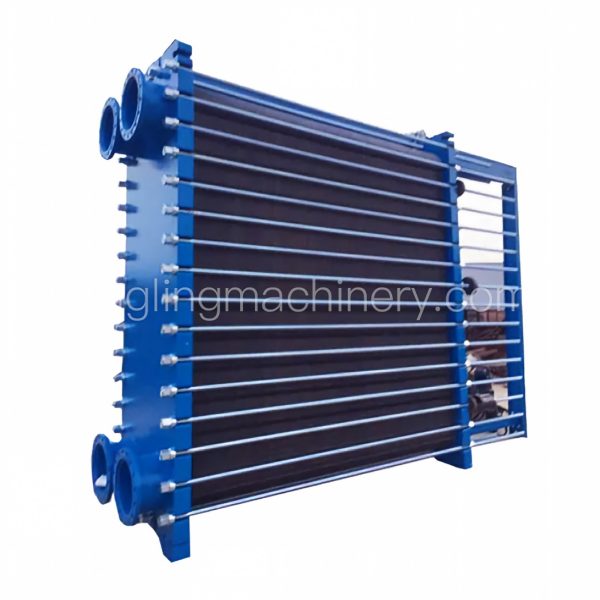

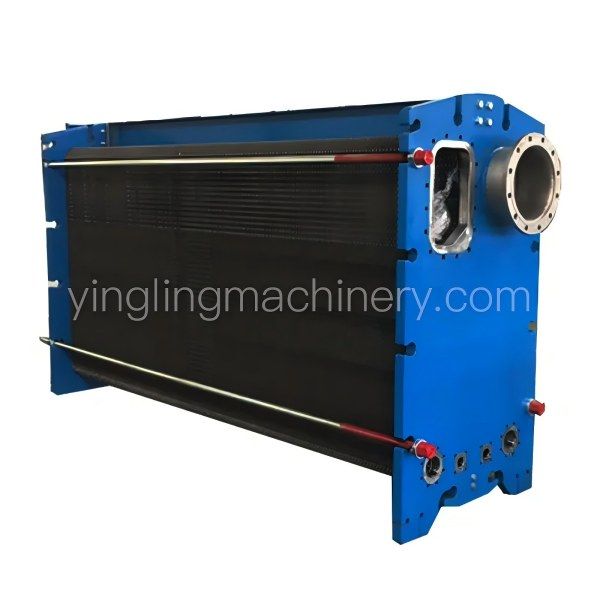

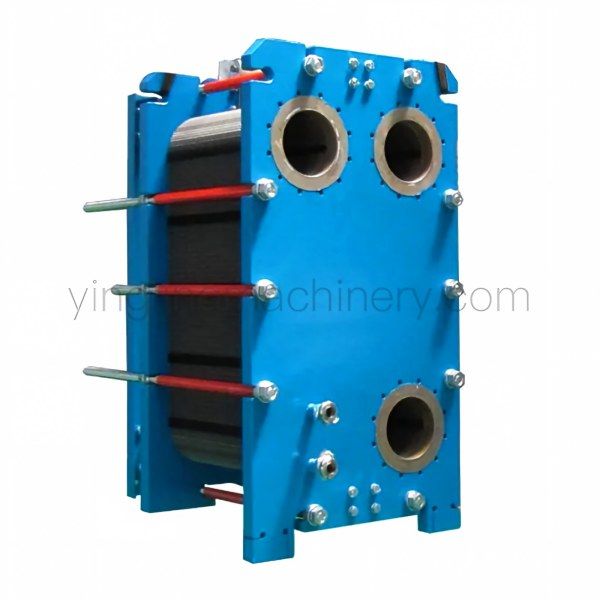

Fully Welded Heat Exchanger: High-Efficiency Industrial Thermal Solutions
1.Fully Welded Construction
2.High Temperature & Pressure Resistance
3.Excellent Corrosion Resistance
4.High Heat Transfer Efficiency
5.Low Leakage Risk
6.Compact & Durable Design
Fully Welded Heat Exchanger: High-Efficiency Industrial Thermal Solutions
Product Overview
When handling high-temperature, high-pressure, or highly corrosive fluid media, conventional gasketed heat exchangers often reach their operational limits. Our advanced fully welded heat exchanger is engineered to bridge the gap between heavy-duty shell-and-tube units and high-efficiency plate exchangers.
By eliminating elastomeric gaskets entirely, our welded plate and frame heat exchanger offers an impermeable, all-welded core capable of withstanding extreme thermal cycles and volatile chemical environments. Designed for maximum thermal performance in compact footprints, this industrial heat exchanger minimizes energy consumption while delivering unparalleled reliability for critical process industries.
Key Features & Strategic Advantages
1. Superior Thermal Efficiency
Laser-Welded Plate Core: The optimized corrugated plate geometry induces intense turbulence at lower fluid velocities, maximizing overall heat transfer coefficients (U-values up to 3 to 5 times higher than conventional shell-and-tube units).
Close Temperature Approach: Enables precise temperature control with approach temperatures as low as $1^\circ\text{C}$, boosting total heat recovery efficiency across your process line.
2. Leak-Proof & High-Pressure Architecture
Gasket-Free Security: The fully welded block design eliminates the common risk of gasket degradation, swelling, or thermal fatigue leaks.
Extreme Operating Range: Engineered to accommodate operating pressures up to 4.0–6.0 MPa (40–60 bar) and operating temperatures ranging from $-196^\circ\text{C}$ to $+550^\circ\text{C}$.
3. Compact & Space-Saving Footprint
80% Footprint Reduction: Requires only a fraction of the installation space needed by equivalent shell-and-tube units, significantly cutting civil engineering, piping, and foundation costs.
Modular Versatility: Easily integrated into skid-mounted processing units, off-shore platforms, or tight retrofits inside existing plants.
4. Low Maintenance & Reduced Lifecycle Cost
Fouling Resistance: High fluid turbulence creates a self-cleaning effect on plate surfaces, dramatically slowing down scaling and fouling accumulation.
Easy Inspection & Cleaning: Removable side panels or inspection hatches allow straightforward access for mechanical washdowns or Chemical Cleaning-in-Place (CIP).
Technical Specifications
| Parameter | Specification Range / Standard Options |
| Heat Exchanger Type | Fully Welded Heat Exchanger / Welded Plate and Frame Heat Exchanger |
| Plate Materials | Stainless Steel (304 / 316L), Titanium, Hastelloy C276, SMO 254, Nickel Alloys |
| Design Pressure | Vacuum up to 6.0 MPa (60 bar / 870 PSI) |
| Design Temperature | -196°C to +550°C (-320°F to +1022°F) |
| Flow Rate Capability | Up to 2,500 m³/h |
| Connection Types | Flanged (ANSI, DIN, JIS), Threaded, or Custom Welded Connections |
| Design Standards | ASME Sec VIII Div 1, CE/PED, ISO 9001, ISO 14001, GB150 |
Target Industry Applications
Our custom welded plate and frame heat exchanger solutions are proven across demanding global sectors:
Petrochemical & Oil Processing: Condensation of light hydrocarbons, reboilers, gas treatment, and crude oil preheating.
Chemical Industry: Acid cooling, solvent recovery, organic compound heating, and hazardous media processing.
Energy & Power Generation: Steam condensers, heat recovery steam generators (HRSG), and geothermal energy exchange.
HVAC & Large-Scale Refrigeration: Ammonia evaporators, heavy-duty chillers, and district heating/cooling substations.
Pharmaceutical & Fine Chemicals: High-purity process fluid heating and rapid temperature regulation under strict containment.
Why Partner With Us?
As an established OEM/ODM manufacturer specializing in advanced industrial heat transfer technology, we provide complete, end-to-end engineering support to maximize your process uptime.
Custom Thermal Design: Every unit is custom-rated using advanced thermal modeling software to match your exact fluid properties, pressure drop limits, and temperature profiles.
Rigorous Quality Control: 100% non-destructive testing (NDT), including X-ray weld inspection, helium leak testing, and hydrostatic pressure testing prior to shipment.
Global Compliance: Certified according to international pressure vessel codes (ASME, PED/CE) for seamless global deployment.
Request a Custom Quote Today
Optimize your process efficiency and safeguard your plant against costly downtime. Contact our thermal engineering specialists today to receive a free thermal calculation sheet, CAD layout drawings, and a competitive B2B quotation tailored to your project requirements.
