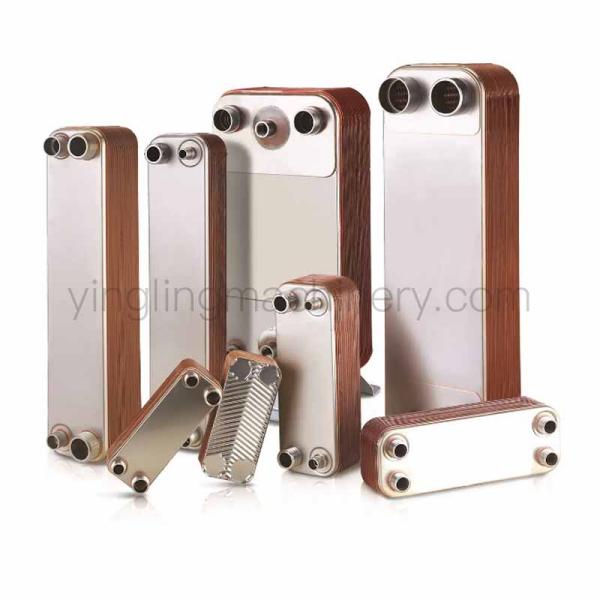

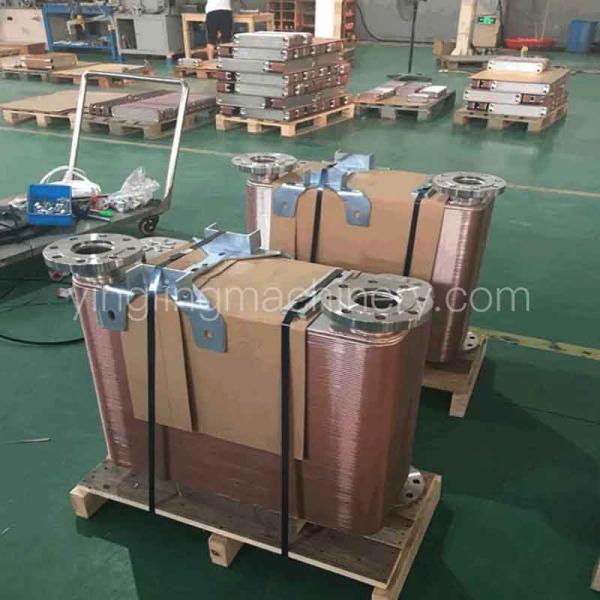

Compact High-Efficiency Brazed Plate Heat Exchanger
1.Compact & Space-Saving Design
2.High Heat Transfer Efficiency
3.Excellent Pressure Resistance
4.Maintenance-Free Construction
5.Low Pressure Drop
6.Long Service Life
Engineered for Maximum Thermal Performance, Compact Footprint, and Leak-Free Reliability
1. Product Overview: Thermal Efficiency Redefined
In modern HVACR systems, heat pumps, industrial refrigeration, and hydraulic oil cooling, thermal performance and space efficiency are paramount. Our high-efficiency brazed plate heat exchanger line is custom-engineered to deliver optimal thermal transfer while minimizing physical footprint and system weight.
Unlike traditional gasketed plate heat exchangers that rely on elastomeric seals, our brazed heat exchanger units feature precision stainless steel plates permanently vacuum-brazed together using pure copper or nickel filler metals. This seal-free, gasketless construction completely eliminates gasket leakage risks, withstands extreme thermal cycling, and operates under continuous high-pressure conditions with zero maintenance required.

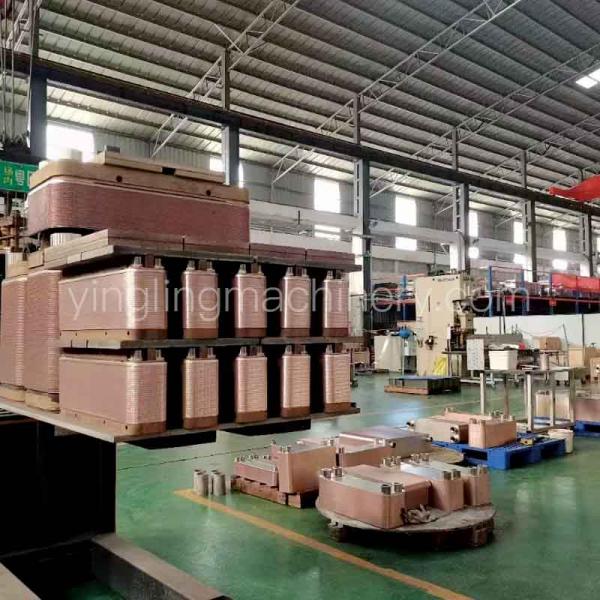

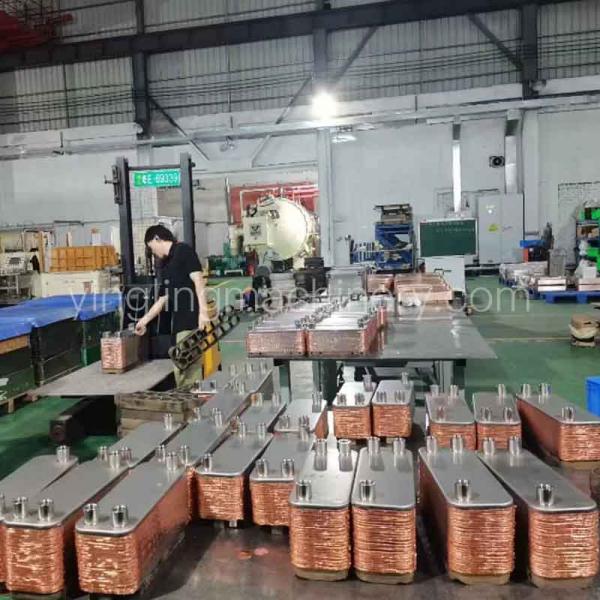

2. Why Partner with Professional Brazed Plate Heat Exchanger Manufacturers?
As one of the industry-leading brazed plate heat exchanger manufacturers, we design and produce robust thermal solutions tailored to strict OEM parameters and global safety standards:
A. Optimized Plate Geometry for Extreme Thermal Duties
Our corrugated chevron plate design creates high internal turbulence at exceptionally low fluid velocities. This micro-turbulence breaks down boundary thermal resistance, achieving heat transfer rates up to 5 times higher than shell-and-tube units. Whether utilized as a condenser, evaporator, or liquid-to-liquid economizer, every brazed plate exchanger delivers maximum COP (Coefficient of Performance).
B. Copper-Brazed vs. Nickel-Brazed Metallurgy Options
Copper-Brazed Heat Exchangers: Standard choice for HVAC, heat pumps, air conditioning, refrigeration (R410A, R32, R290, R134a), hydraulic oil cooling, and clean water processing.
Nickel-Brazed Heat Exchangers: Engineered specifically for corrosive environments, deionized water, aggressive chemical fluids, and industrial applications where copper reactivity must be avoided.

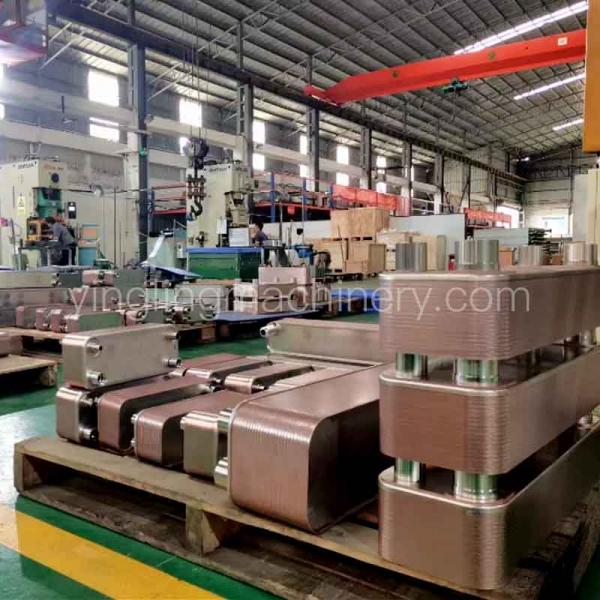

3. Core Technical Advantages & Structural Features
Ultra-Compact & Lightweight Design: Delivers equivalent thermal capacity at up to 85% less weight and volume compared to conventional shell-and-tube exchangers.
Leak-Proof Permanent Construction: High-vacuum brazing process fuses stainless steel plates at every contact point, creating a unified pressure vessel capable of handling severe pressure spikes.
High Operating Temperature & Pressure Resistance: Operates reliably at temperatures up to +225°C (+437°F) and working pressures up to 4.5 MPa (45 Bar / 652 PSI).
Low Fluid Hold-up Volume: Enables rapid thermal response and reduces necessary refrigerant charge, directly lowering environmental impact and fluid costs.
Self-Cleaning Micro-Turbulence: Continuous high wall shear stress scours plate surfaces, minimizing scaling, fouling, and maintenance downtime.
4. Technical Specifications Overview
| Parameter | Specification Range |
| Plate Material | AISI 316L / AISI 304 Stainless Steel |
| Brazing Material | 99.9% Pure Copper / Nickel Alloy |
| Operating Temperature | -196°C to +225°C (-320°F to +437°F) |
| Design Pressure | Up to 4.5 MPa (45 Bar / 652 PSI) [High-pressure CO2 R744 models up to 140 Bar available] |
| Refrigerants & Media | R410A, R32, R290, R134a, R744 (CO2), Water, Glycol, Thermal Oil |
| Connection Types | Solder / Sweat, Threaded (NPT/G), Victaulic, Flanged |
| Certifications | ASME, CE / PED 2014/68/EU, UL, ISO 9001, RoHS |
5. Target Industrial Applications
HVAC & Heat Pumps: Evaporators and condensers in air-to-water, water-to-water, and ground-source heat pump systems.
Commercial Refrigeration: Economizers, subcoolers, suction line heat exchangers, and cascade CO2 refrigeration loops.
Industrial Energy & Power: Organic Rankine Cycle (ORC) recovery, boiler blowdown heat recovery, and compressed air cooling.
Hydraulic & Engine Cooling: Hydraulic fluid cooling, lube oil cooling in heavy machinery, and marine jacket water cooling.
Request OEM Custom Sizing & Direct Factory Quotation
Looking for reliable brazed plate heat exchanger manufacturers for your equipment line? Contact our thermal design engineers today to receive precise selection calculations, CAD drawings, and B2B wholesale pricing within 24 hours.
