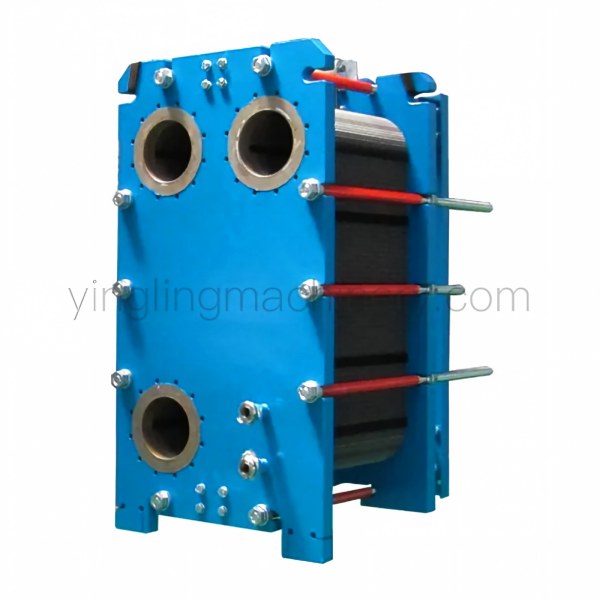

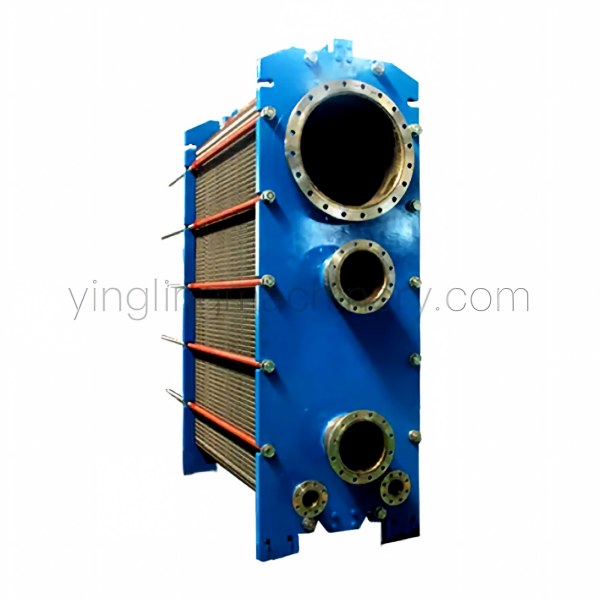

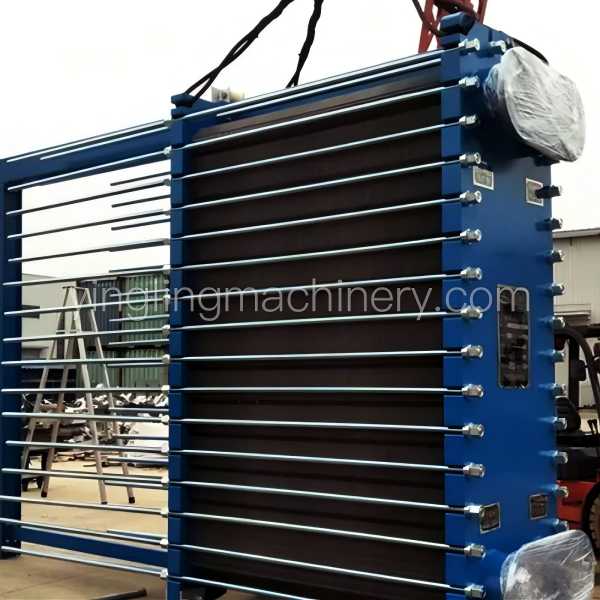

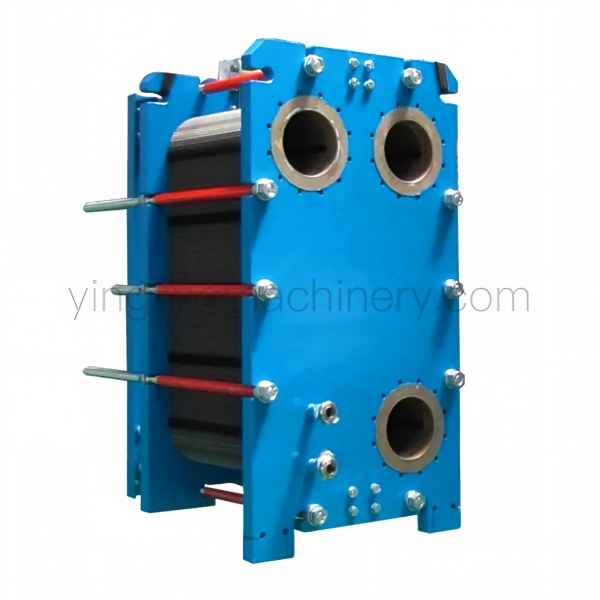

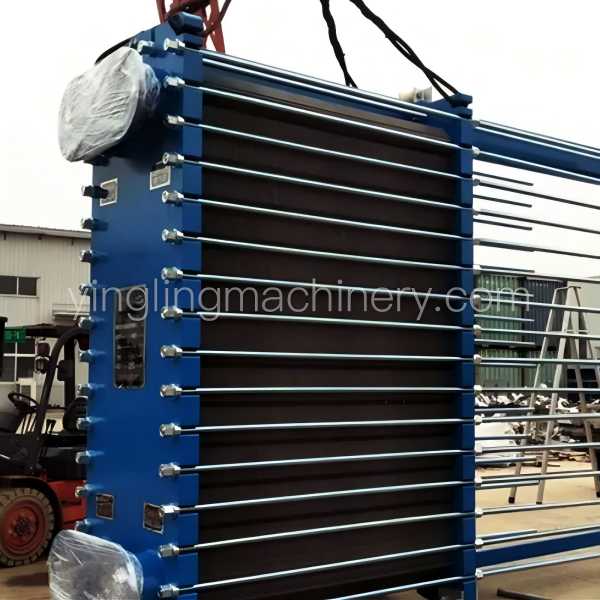

Premium Fully Welded Plate Heat Exchanger for High-Pressure & High-Temperature Applications

Premium Fully Welded Plate Heat Exchanger for High-Pressure & High-Temperature Applications

Product Overview

In modern heavy industry, optimizing thermal efficiency while ensuring absolute operational safety is paramount. Our high-performance fully welded plate heat exchanger represents the pinnacle of thermal engineering, designed specifically to replace traditional shell-and-tube units in high-pressure, high-temperature, and highly corrosive environments. Combining the extraordinary heat transfer performance of conventional gasketed plate units with the rugged durability of a welded shell, this advanced welded heat exchanger offers an uncompromising thermal solution for demanding process conditions.

Unlike conventional heat exchangers that rely on elastomeric gaskets—which are prone to degradation, chemical attack, and mechanical failure under extreme stress—our fully welded architecture features laser-welded plate packs securely housed inside a rigid pressure vessel or protective frame. This seamless, gasketless structure completely eliminates leak risks, extends overall service life, and provides superior resistance to thermal shocks and sudden pressure fluctuations.

Key Features & Technical Advantages

Maximum Thermal Efficiency: Corrugated plate design induces turbulent flow even at low velocities, yielding heat transfer coefficients up to 3 to 5 times higher than shell-and-tube heat exchangers.

Extreme Pressure & Temperature Tolerance: Engineered without synthetic gaskets, operating safely under temperatures ranging from cryogenic levels up to 400°C+ and operating pressures up to 40+ bar.

Compact Footprint & Lower Capex: Compact modular construction requires up to 70% less installation space compared to traditional units, drastically reducing structural support costs and freight expenses.

Gasketless Integrity & Zero Leaks: The fully welded plate pack eliminates gasket degradation caused by harsh chemical media, ensuring long-term maintenance-free operation and minimal downtime.

Versatile Material Selection: Available in AISI 316L, Titanium, Hastelloy C-276, 254 SMO, and Nickel alloys to handle severe corrosive fluids, foulants, and aggressive acids effortlessly.

Technical Specifications

Industrial Applications

Engineered for continuous, heavy-duty processing, our versatile welded heat exchanger systems are widely deployed across key global industries:

Oil & Gas Processing: Crude oil heating/cooling, amine gas treatment, condensation of hydrocarbons, and offshore platform heat recovery systems.

Chemical & Petrochemical Industry: Organic/inorganic chemical heating and cooling, acid treatment, solvent recovery, and high-purity fluid processing.

HVAC & District Energy: High-rise building pressure breakers, steam-to-water heat exchange stations, and large-scale central cooling/heating loops.

Power Generation: Turbine steam condenser systems, auxiliary cooling, and geothermal heat extraction applications.

Why Partner With Us?

As a leading industrial thermal solutions manufacturer, we provide end-to-end engineering support—from thermal sizing and mechanical design to custom fabrication and non-destructive testing (NDT). Each fully welded plate heat exchanger undergoes rigorous pressure and helium leak testing prior to dispatch, guaranteeing 100% operational reliability upon installation.

100% Custom Engineering: Tailored nozzle orientations, plate corrugations, and material selection to fit your exact flow dynamics.

Global Compliance: Manufactured in strict adherence to international pressure vessel codes (ASME, PED/CE).

Rapid Delivery & Global Support: Dedicated technical consultation and comprehensive spare parts supply worldwide.

Ready to Optimize Your Heat Transfer Efficiency?

Contact our thermal engineers today to receive a free thermal calculation sheet, CAD models, and a competitive factory-direct quote tailored to your operational parameters.
