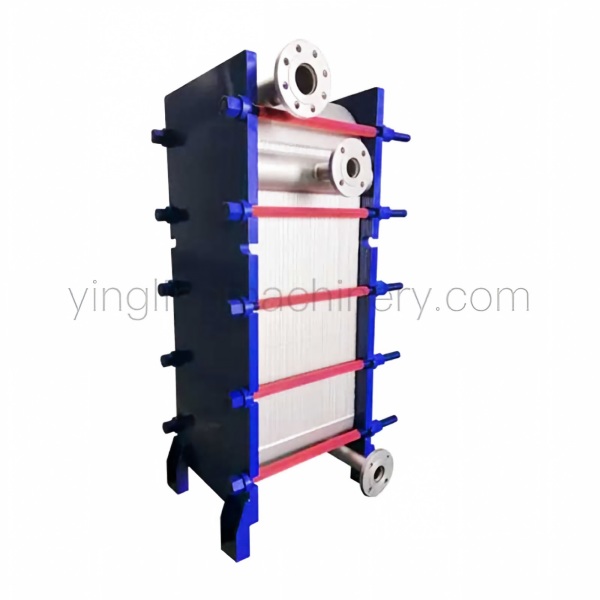

Fully Welded Heat Exchanger: High-Efficiency Industrial Thermal Transfer Solutions
1.Fully Welded Construction
2.High Temperature & Pressure Resistance
3.Excellent Corrosion Resistance
4.High Heat Transfer Efficiency
5.Low Leakage Risk
6.Compact & Durable Design
Fully Welded Heat Exchanger: High-Efficiency Industrial Thermal Transfer Solutions
Product Overview
In high-stakes industrial processing, maintaining maximum thermal efficiency while eliminating the risk of leakage is essential. Our advanced fully welded heat exchanger represents the ultimate fusion of compact layout and rugged structural integrity. Engineered without traditional rubber gaskets or elastomeric seals, this all-welded thermal unit thrives in severe operating environments where extreme pressures, volatile thermal cycles, and aggressive media exceed the capabilities of standard plate exchangers.
Alongside our heavy-duty welded units, we also produce high-precision stainless steel brazed plate heat exchanger systems designed for high-pressure HVAC, commercial refrigeration, and clean process fluid loops. By eliminating organic seal degradation, both product series deliver exceptional heat transfer coefficients, extended service lives, and low maintenance overhead for B2B plant operators globally.
Key Features & Strategic B2B Advantages
1. Gasketless, Leak-Proof Security
Zero Cross-Contamination Risk: By replacing rubber gaskets with laser welding or high-vacuum brazing, our fully welded heat exchanger eliminates gasket degradation, swelling, and chemical attack when handling hazardous, corrosive, or flammable fluids.
Thermal Shock Resistance: Built to handle rapid temperature ramp-ups and severe pressure fluctuations without joint fatigue.
2. High Thermal Efficiency
Intense Fluid Turbulence: Corrugated plate geometry induces turbulent flow even at low fluid velocities, resulting in overall heat transfer coefficients (U-values) up to 3 to 5 times higher than conventional shell-and-tube exchangers.
Tight Temperature Approach: Achieves close temperature approach down to $1^\circ\text{C}$, enabling maximum energy recovery across process loops.
3. Ultra-Compact Physical Footprint
80% Space Reduction: Consumes up to 80% less installation space than equivalent capacity shell-and-tube units, drastically cutting foundation engineering, piping, and structural support expenses.
Skid-Ready Design: Ideal for modular Skid integration, offshore oil platforms, and tight plant retrofits.
4. Low Fouling & Reduced Lifecycle Costs
Self-Cleaning Channel Geometry: High fluid shear rates inside the corrugated channels minimize scaling and fouling buildup.
CIP Compatible: Designed for seamless integration with Chemical Cleaning-in-Place (CIP) systems, reducing scheduled downtime.
Technical Specifications
| Feature / Parameter | Standard Specification / Custom Options |
| Product Category | Fully Welded Heat Exchanger / Stainless Steel Brazed Plate Heat Exchanger |
| Plate Materials | Stainless Steel (AISI 304, 316L), Titanium, Hastelloy C-276, SMO 254 |
| Brazing / Welding Material | 100% Stainless Steel / Copper / Nickel Braze; Precision TIG / Laser Welded |
| Design Pressure Range | Full Vacuum up to 6.0 MPa (60 bar / 870 PSI) |
| Operating Temperature | -196°C to +550°C (-320°F to +1022°F) |
| Flow Rate Capacity | Up to 3,000 m³/h |
| Connection Types | Flanged (ANSI, DIN, JIS), Threaded, or Custom Butt-Welded Connections |
| Design Standards | ASME Sec VIII Div 1, CE / PED 2014/68/EU, ISO 9001, ISO 14001, GB150 |
Target Industry Applications
Our fully welded heat exchanger and stainless steel brazed plate heat exchanger solutions are field-proven across global industrial sectors:
Chemical & Petrochemical Processing: Solvent recovery, acid cooling, high-temperature fluid heating, and organic vapor condensation.
Oil & Gas Processing: Amine liquid treating, crude oil preheating, glycol reboilers, and offshore topside cooling modules.
Refrigeration & HVAC: High-efficiency evaporators and condensers for ammonia ($\text{NH}_3$), carbon dioxide ($\text{CO}_2$), and synthetic eco-refrigerants.
Power Generation & Energy Recovery: Steam condensing, district heating substations, geothermal energy loops, and turbine oil coolers.
Pharmaceutical & Fine Chemical: Sterile fluid heating and closed-loop temperature control under strict hygienic containment.
Why Partner With Us?
As a certified B2B industrial manufacturer specializing in advanced heat transfer technology, we provide complete engineering support from thermal sizing to post-installation service.
Custom Thermodynamic Rating: Every unit is rated using dedicated thermal software to optimize surface area, fluid pressure drop, and flow distribution.
Rigorous Quality Testing: 100% non-destructive testing (NDT), including X-ray weld inspection, helium mass spectrometer leak detection, and hydrostatic pressure testing prior to shipment.
Global Code Compliance: Full certification in accordance with international pressure equipment codes (ASME, PED/CE) for hassle-free worldwide implementation.
Request a Custom B2B Quote Today
Upgrade your thermal process reliability and reduce energy overhead. Contact our thermal application engineering team today to receive a customized thermal rating calculation, CAD layout drawing, and competitive price quote!
