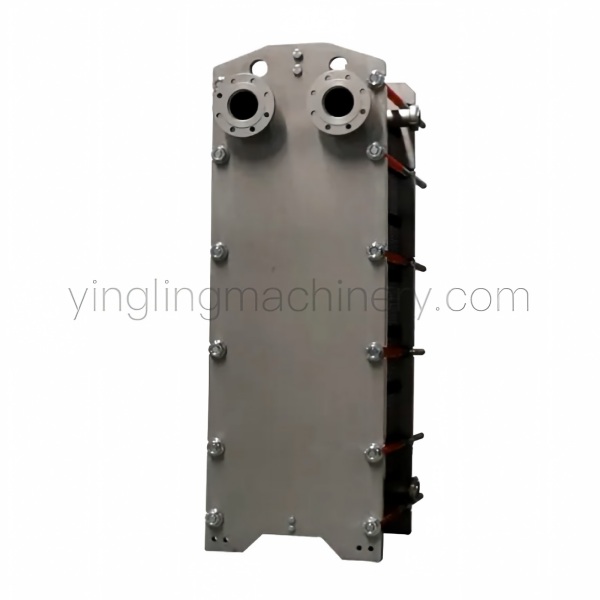

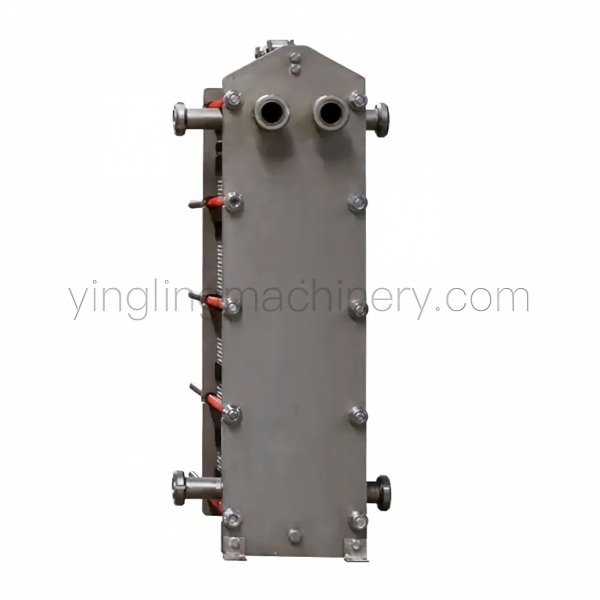

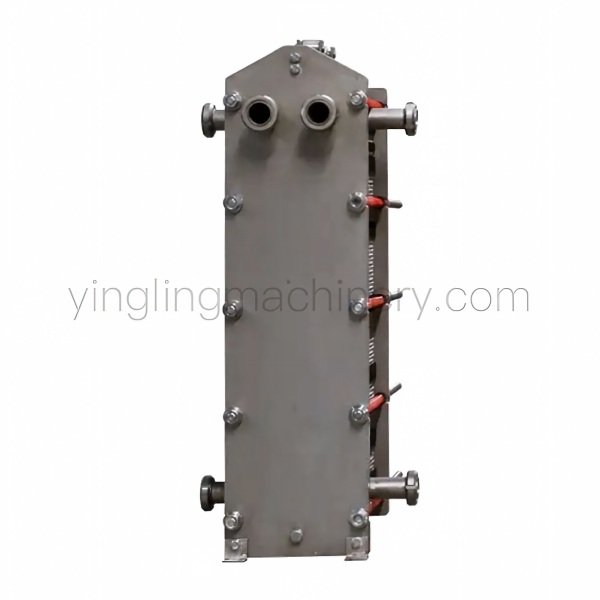

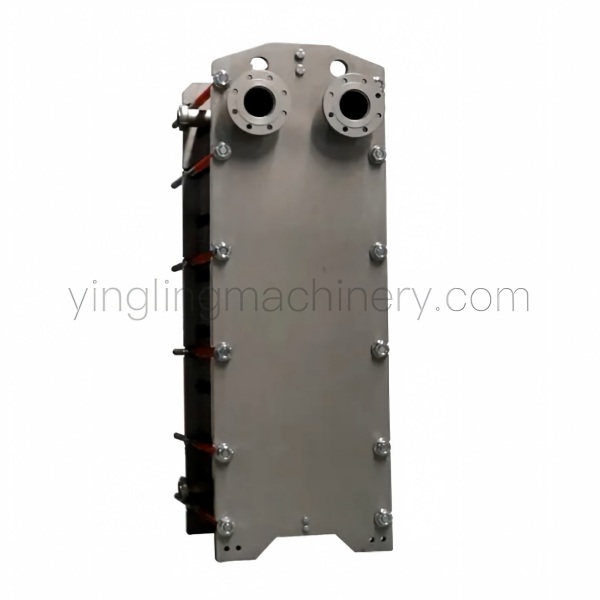

High-Efficiency Stainless Steel Plate Heat Exchanger for Food & Beverage Processing
1.Hygienic Design
2.Food-Grade Materials
3.High Heat Transfer Efficiency
4.CIP-Friendly Design
5.Sanitary Connections
6.Easy Cleaning & Maintenance
High-Efficiency Stainless Steel Plate Heat Exchanger for Food & Beverage Processing
Maintaining uncompromising hygiene standards while maximizing thermal energy efficiency is critical in modern food and beverage manufacturing. Our advanced stainless steel plate heat exchanger systems are custom-engineered to deliver rapid, uniform heat transfer across diverse fluid processing applications—ranging from beverage pasteurization and edible oil cooling to liquid egg thermal treatment and sauce processing.
Constructed from premium AISI 316L/304 stainless steel with high-grade sanitary surface finishes, our heat exchange solutions prevent product contamination, safeguard food safety, and deliver exceptional operational longevity under demanding industrial conditions.
Sanitary Plate and Frame Heat Exchanger Engineering Excellence
Hygiene is the cornerstone of food manufacturing. Every sanitary plate and frame heat exchanger in our product line is designed in strict accordance with 3-A Sanitary Standards, EHEDG guidelines, and FDA material regulations. Featuring press-formed corrugated heat transfer plates, our equipment minimizes dead spaces where bacteria or product residue could accumulate.
Equipped with FDA-compliant, glue-free clip-on gaskets and smooth frame finishes, our units ensure complete Clean-in-Place (CIP) and Sterilize-in-Place (SIP) execution. This seamless cleanability minimizes plant downtime during batch turnover while eliminating cross-contamination risks between production runs.
Key Performance Advantages for Food Processing:
High Heat Recovery & Energy Savings: Achieve up to 90%+ thermal recovery by exchanging heat between incoming cold product and outgoing hot fluid, significantly reducing boiler fuel and chilling costs.
Low Shear & Gentle Product Handling: Specially designed plate pressing patterns maintain smooth velocity profiles and low pressure drops, preserving delicate cell structures, natural viscosity, and flavor integrity in sensitive food liquid products.
Versatile & Expandable Frame Design: Flexible frame layouts allow easy plate addition or section reconfiguration as your production capacity scales. Multi-section configurations enable heating, holding, and cooling within a single compact footprint.
Superior Corrosion Resistance: Premium stainless steel components resist harsh organic acids, cleaning chemicals, and high-salinity process streams.
Wide-Ranging Applications in Food & Beverage Manufacturing
Our hygienic heat exchange solutions are trusted by leading food processing facilities for a broad range of liquid thermal operations:
Beverage & Juice Processing: Rapid flash pasteurization, deaeration heating, and syrup thermal conditioning.
Dairy & Liquid Egg Processing: Gentle HTST pasteurization, chilling, and raw product pre-heating.
Sauces, Condiments & Liquid Sweeteners: Efficient heating and cooling of viscous fluids such as ketchup, salad dressings, liquid sugar, and starch slurry using wide-gap plate geometries.
Edible Oils & Fats Processing: High-temperature heating, deodorization heat recovery, and winterization cooling loops.
Brewing & Distilling: Hot wort knock-out, yeast cooling, and CIP solution heating.
Technical Specifications & Custom Options
| Technical Feature | Standard Food-Grade Specification | Custom Plant Customization |
| Plate Material | AISI 316L (1.4404) / AISI 304 Stainless Steel | Titanium Grade 1 / Hastelloy C-276 |
| Gasket Material | Food-Grade EPDM / NBR (FDA 21 CFR compliant) | High-Temp FKM / Viton (Clip-on type) |
| Surface Roughness | Ra < 0.6 µm (Mirror polish available) | Electropolished surface finishes |
| Design Pressure | 10 bar to 16 bar standard | Up to 25 bar custom rating |
| Sanitary Standards | 3-A Sanitary, EHEDG, FDA, CE-PED | ASME BPE / Food Safety Certification |
| Frame Material | Stainless steel clad or solid stainless steel | Epoxy-coated heavy carbon steel frame |
Partner with Food Thermal Engineering Experts
Every food processing line presents unique rheological and thermal challenges. Our experienced application engineers use advanced thermal rating software to customize plate geometry, channel pressing depth, and flow pass arrangements tailored precisely to your fluid viscosity, temperature delta, and flow rate requirements. All units are hydrostatically pressure-tested and delivered ready for seamless line integration.
Request a Custom Design & Quote for Your Food Processing Line
Contact our thermal engineering specialists today to receive a comprehensive heat transfer calculation and a competitive quotation tailored to your plant needs!
