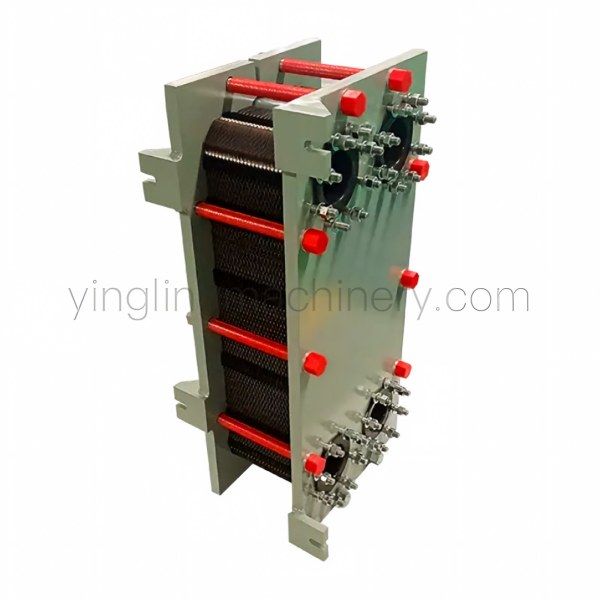

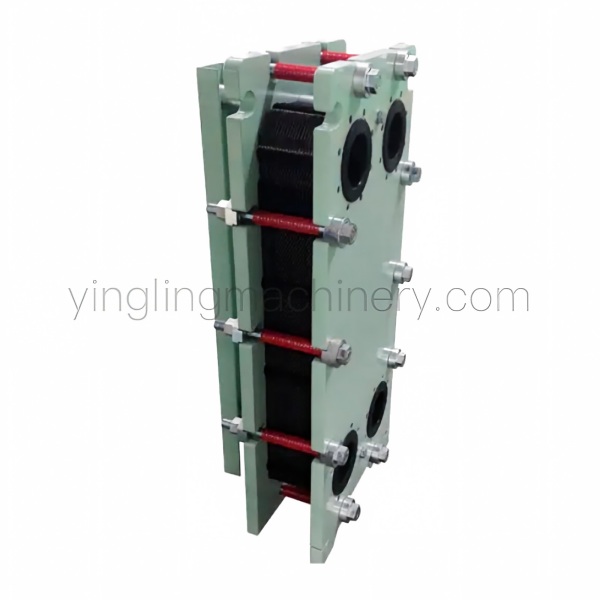

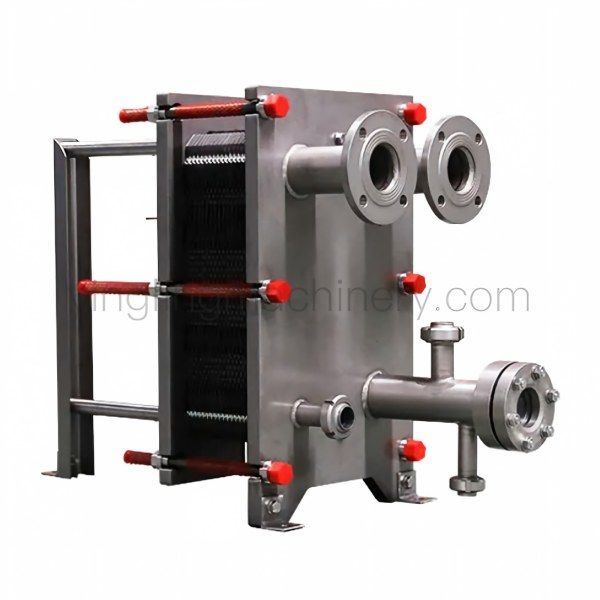

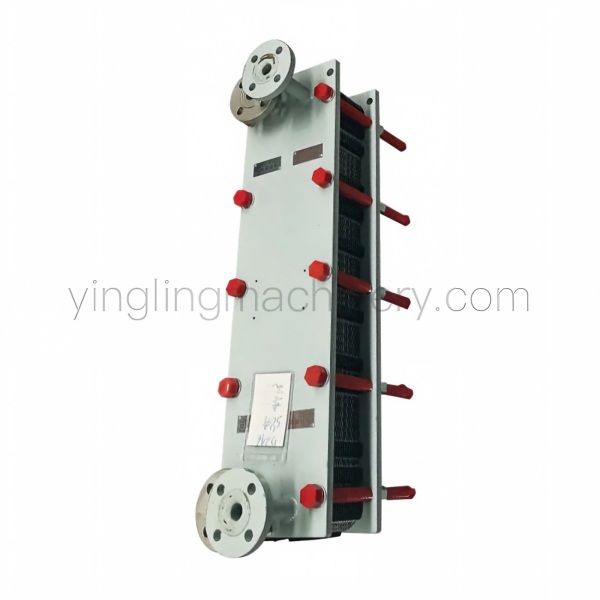

High-Purity Stainless Steel Plate Heat Exchanger for Pharmaceutical & Biotech Processing
1.Hygienic Design
2.Food-Grade Materials
3.High Heat Transfer Efficiency
4.CIP-Friendly Design
5.Sanitary Connections
6.Easy Cleaning & Maintenance
High-Purity Stainless Steel Plate Heat Exchanger for Pharmaceutical & Biotech Processing
In pharmaceutical and biotech manufacturing, thermal processing demands absolute purity, zero risk of contamination, and uncompromised precision. Our high-efficiency stainless steel plate heat exchanger is custom-engineered to meet the most stringent hygienic standards, providing precise temperature control for Water for Injection (WFI), Purified Water (PW), and liquid formulation processes.
Designed as a top-tier sanitary heat exchanger, this unit guarantees maximum thermal efficiency while fully safeguarding your process fluid against cross-contamination and bacterial growth.
Key Features & B2B Advantages
Hygienic & Corrosion-Resistant ConstructionManufactured from high-grade AISI 316L stainless steel with internal surface finish options up to $\text{Ra} \le 0.38\ \mu\text{m}$ (electropolished). This ultra-smooth contact surface eliminates dead legs, minimizes biofilm accumulation, and ensures hassle-free cleaning.
Zero Cross-Contamination Guarantee
Equipped with a leak-detection double-gasket system or optional double-wall plates. Any potential gasket leakage is vented externally before it can enter the adjacent medium stream, protecting sensitive pharmaceutical media.
Complete CIP & SIP Cleanability
Engineered for full Clean-in-Place (CIP) and Sterilization-in-Place (SIP) routines. The unit withstands high thermal shocks, aggressive sanitizing chemicals, and continuous high-temperature steam sterilization cycles.
Compact & Energy-Efficient Thermal Performance
Our optimized plate corrugation creates high turbulent flow even at low flow rates, delivering exceptional heat transfer coefficients while drastically reducing energy consumption and physical footprint compared to traditional shell-and-tube designs.Technical Specifications
| Parameter | Specification / Standard |
| Material of Construction | AISI 316L / 1.4404 (Plates & Frame clad) |
| Surface Finish | Ra ≤ 0.4 μm (Ra ≤ 16μin), Electropolished available |
| Gasket Materials | FDA-compliant EPDM, FKM, or PTFE-sleeved EPDM |
| Design Pressure | Up to 16 bar (232 psi) / Customized |
| Design Temperature | -10°C to 160°C (14°F to 320°F) |
| Regulatory Compliance | FDA 21 CFR, cGMP, ASME BPE, PED 2014/68/EU, 3-A Sanitary Standards |
| Connections | Tri-Clamp sanitary fittings / DIN 11851 / ISO 2852 |
Primary Pharmaceutical Applications
Whether you need precise thermal treatment for upstream preparation or downstream purification, our stainless steel plate heat exchanger delivers continuous, repeatable reliability:
Water for Injection (WFI) Systems: Heating, cooling, and point-of-use temperature maintenance.
Purified Water (PW) Loops: Thermal sanitization and continuous temperature control.
Buffer & Media Preparation: Rapid heating and cooling of sensitive bioprocess solutions.
Blood Plasma & Serum Processing: Low-temperature delicate processing with minimal shear stress.
CIP/SIP Heating Utility: Instantaneous heating of sanitary cleaning solutions.
Quality Assurance & Compliance Documentation
Every sanitary heat exchanger dispatched from our facility undergoes rigorous quality control procedures. We provide a complete validation documentation package (DQ/IQ/OQ support) to help you pass regulatory audits seamlessly:
3.1 Material Traceability Certificates (EN 10204)
Surface Roughness Calibration Test Reports
Hydrostatic & Pneumatic Pressure Test Certificates
FDA / USP Class VI Elastomeric Conformity Declarations
Engineered for Excellence – Partner With Us
Looking to optimize your plant’s thermal efficiency while maintaining strict cGMP compliance? Our engineering team provides custom-tailored thermal calculations and CAD modeling within 24 hours.
Contact our sanitary application engineers today to get a competitive quote and detailed thermal proposal!
