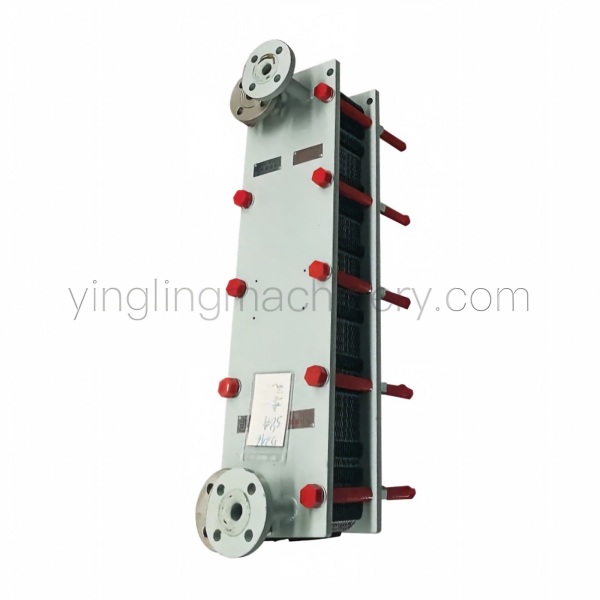

Sanitary Plate and Frame Heat Exchanger for Food & Beverage Thermal Processing

Sanitary Plate and Frame Heat Exchanger for Food & Beverage Thermal Processing

In modern food and beverage production, maintaining product safety, natural flavor, and shelf-life stability depends heavily on precise thermal processing. Our high-performance sanitary plate and frame heat exchanger is custom-engineered to deliver rapid heating, flash pasteurization, and deep cooling for a wide range of liquid foods, beverages, and dairy products.

Built to exceed international food hygiene standards (FDA, 3-A, and EHEDG), this sanitary plate heat exchanger offers maximum thermal transfer efficiency, superior cleanability, and long-term operating reliability. Whether you are flash-pasteurizing fresh fruit juices, cooling beer wort in a craft brewery, or processing sensitive dairy creams, our engineered solution ensures continuous pasteurization with zero cross-contamination.

Key Features & B2B Engineering Advantages

Crevice-Free Hygienic Construction

Plates are pressed from high-purity AISI 316L stainless steel or Titanium with a mirror-finish polish ($\text{Ra} \le 0.4\ \mu\text{m}$). The smooth flow channels eliminate dead zones and physical crevices where bacteria or organic burnt-on residues could accumulate.

FDA-Compliant Glue-Free Clip-On Gaskets

Features snap-in (clip-on) food-grade gaskets (EPDM, NBR, or FKM) compliant with FDA 21 CFR 177. The glue-free design allows quick, toolless replacement during routine maintenance, drastically reducing plant downtime.

Full Clean-in-Place (CIP) Capability

Engineered for high-velocity CIP circulation and chemical sanitization cycles. The specialized chevron plate pattern promotes high fluid turbulence even at lower flow velocities, ensuring thorough chemical cleaning without manual teardown.

High Thermal Regeneration Efficiency (Up to 90%+)

Our multi-section sanitary plate and frame heat exchanger designs allow outgoing hot pasteurized liquid to preheat cold incoming raw fluid, delivering energy heat recovery rates exceeding 90% and cutting operating energy costs significantly.

Technical Specifications

Primary Food & Beverage Applications

Our sanitary plate heat exchanger solutions are widely implemented in automated liquid food processing facilities worldwide:

Dairy Processing: Milk HTST (High-Temperature Short-Time) pasteurization, cheese whey heating, cream cooling, and yogurt culture incubation.

Juice & Beverage Production: Flash pasteurization and rapid cooling of fruit juices, pulp-containing beverages, carbonated soft drinks, and iced teas.

Brewing & Distilling Operations: Wort cooling prior to fermentation, beer flash pasteurization, hot water utility recovery, and wine chill proofing.

Liquid Food & Sauce Lines: Gentle thermal processing of liquid eggs, edible oils, sugar syrups, dressings, and soy sauce.

Quality Assurance & Food Safety Compliance Documentation

Every sanitary plate and frame heat exchanger dispatched to your manufacturing facility is backed by a full compliance documentation package to simplify food safety audits (HACCP/ISO 22000):

EN 10204 3.1 Material Certificates (Full heat traceability)

FDA / 3-A Food Contact Material Conformity Declarations

Hydrostatic & Pneumatic Factory Testing Reports

Surface Roughness Test Calibration Data

Partner with Food Processing Thermal Experts

Looking to improve your food production line’s energy efficiency, throughput, and pasteurization security? Our engineering team provides custom thermodynamic thermal sizing and 3D CAD models within 24 hours.

[Contact Our Sanitary Thermal Engineers Today] to request a customized technical proposal and competitive B2B quotation!
