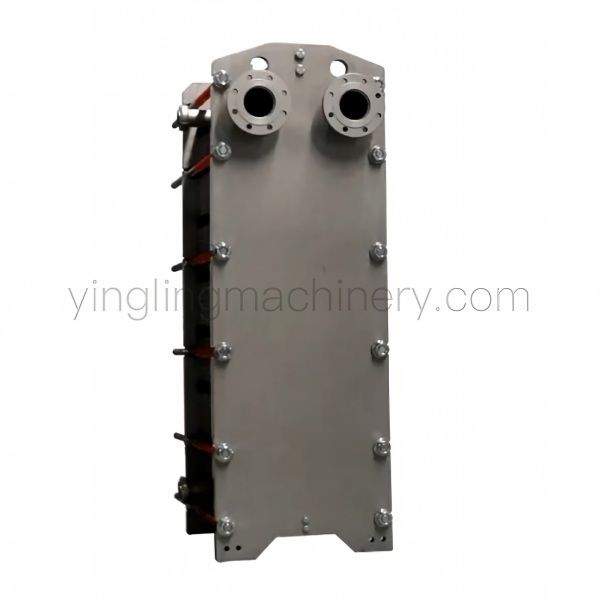

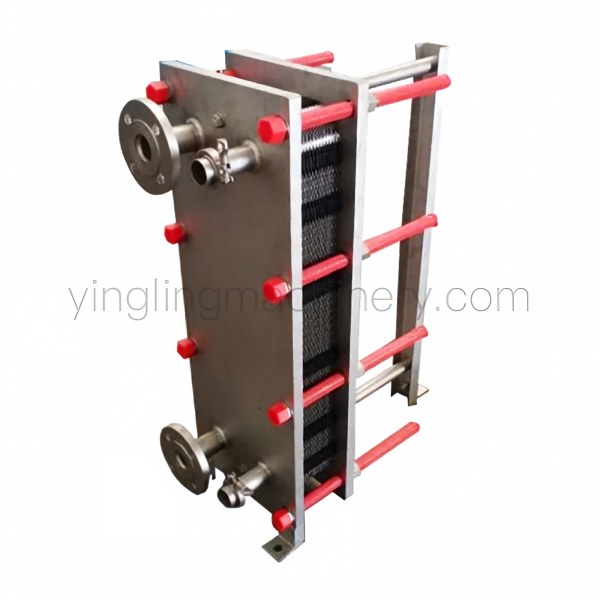

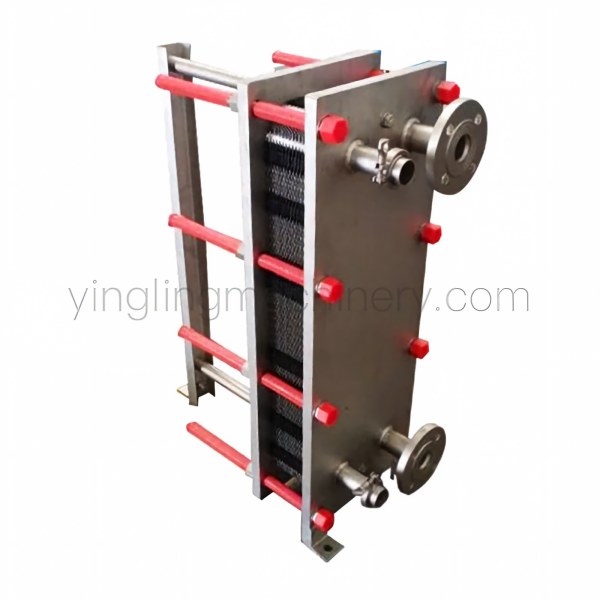

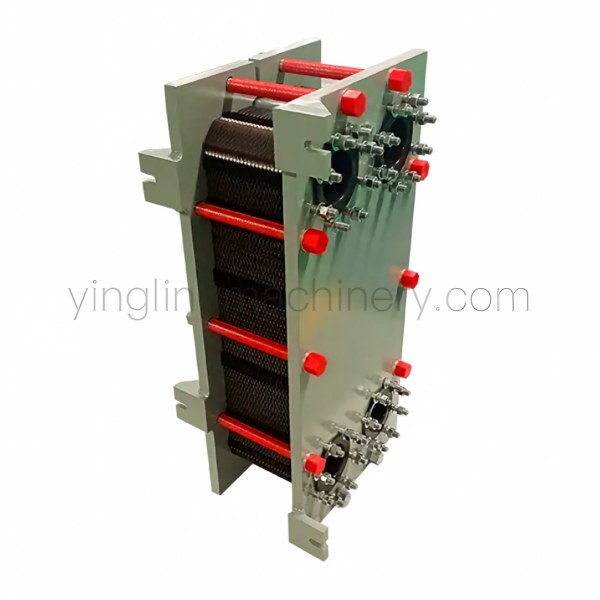

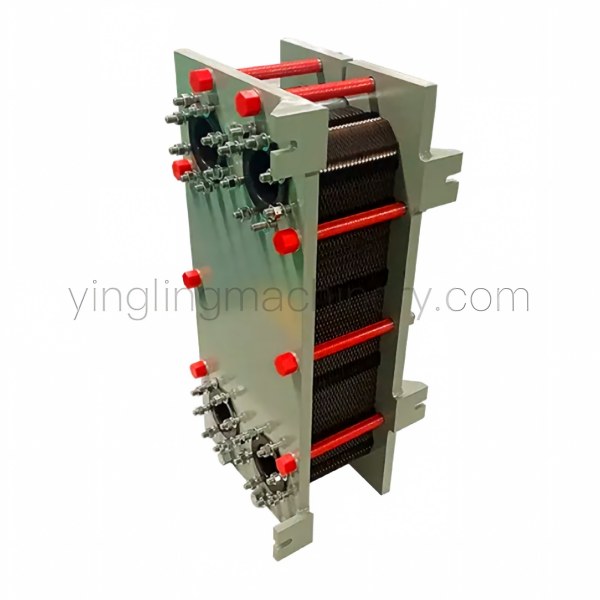

High-Purity Sanitary Plate Heat Exchanger for Bioengineering & Bioprocessing

High-Purity Sanitary Plate Heat Exchanger for Bioengineering & Bioprocessing

In the bioengineering, fermentation, and biopharmaceutical sectors, maintaining rigorous thermal stability without compromising biological integrity is paramount. Our high-efficiency sanitary plate heat exchanger is engineered specifically to meet the ultra-strict contamination-control and cleanability standards required in modern bioprocessing operations.

Whether you are managing shear-sensitive cell culture media, maintaining precise bioreactor temperatures, or processing high-value recombinant proteins, our sanitary plate heat exchangers deliver superior thermal efficiency, exceptional turbulence at low fluid velocities, and complete process safety. Built with premium materials and double-containment options, this unit protects delicate biological fluids against cross-contamination, enzymatic degradation, and thermal shock.

Key Features & B2B Engineering Advantages

Ultra-Smooth Surface Finish (Ra $\le$ 0.38 $\mu$m)

Manufactured from high-purity AISI 316L stainless steel with electropolished contact surfaces. The mirror-smooth finish eliminates micro-cavities, preventing cellular adhesion, microbial colonization, and biofilm buildup during extended fermentation runs.

Zero Cross-Contamination & Double-Wall Protection

Available with double-wall plates or dual-gasket leak channels. Any potential seal failure vents harmlessly to the atmosphere, guaranteeing that media and heating/cooling utilities never mix—safeguarding high-value biological batches.

Shear-Sensitive Fluid Handling

Optimized chevron plate corrugation patterns induce gentle turbulent flow at low shear rates. This preserves delicate mammalian cell membranes, proteins, and shear-sensitive enzymes during continuous thermal treatment.

Full CIP & SIP Cleanability

Fully validated for automated Clean-in-Place (CIP) and high-temperature Sterilization-in-Place (SIP) protocols. Engineered to withstand frequent thermal shock cycles and aggressive cleaning agents without gasket deformation.

Technical Specifications

Core Bioengineering Applications

Our sanitary plate heat exchangers are widely integrated into biomanufacturing plants and R&D pilot facilities for:

Bioreactor Temperature Control: Rapid response thermal management loops for continuous bacterial, yeast, and mammalian cell fermentations.

Harvest & Lysate Cooling: Immediate post-harvest thermal quenching to halt enzymatic activity and preserve product yield.

Purified Water (PW) & WFI Loop Management: Continuous sanitization and temperature control in high-purity water circulation systems.

Media & Buffer Preparation: Inline fast heating and thermal sterilization of liquid nutrient media before bioreactor charging.

Downstream Purification: Gentle temperature adjustment during chromatography, ultrafiltration, and continuous centrifugation.

Quality Assurance & Validation Documentation Package

Every sanitary plate heat exchanger shipped to your facility comes accompanied by a comprehensive cGMP validation binder to support your Qualification & Validation (DQ/IQ/OQ) requirements seamlessly:

EN 10204 3.1 Material Inspection Certificates (Full heat-number traceability)

Surface Roughness Measurement Reports (Surface profilometer testing)

Hydrostatic & Pneumatic Pressure Test Protocols

FDA / USP Class VI Elastomer Compatibility Declarations

Partner with Bioprocess Thermal Experts

Looking to enhance your bioengineering process efficiency while ensuring 100% regulatory compliance? Our team of bioprocess thermal engineers provides tailored thermodynamic calculations and 3D CAD models within 24 hours.

[Contact Our Application Engineers Today] to request a customized technical proposal and competitive B2B quotation!
