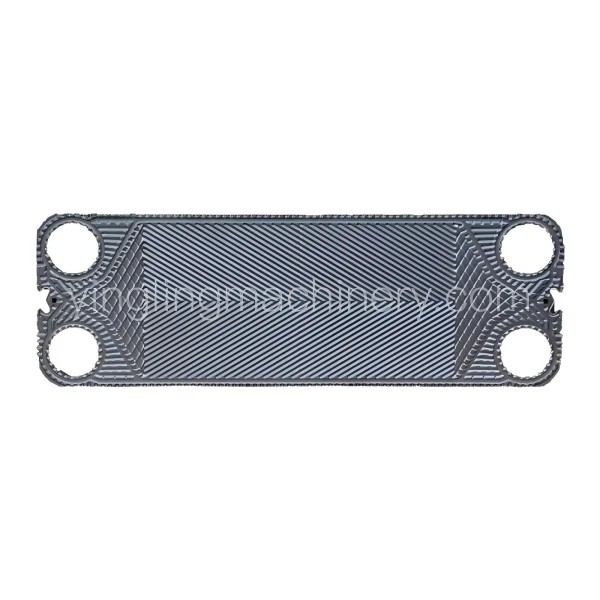

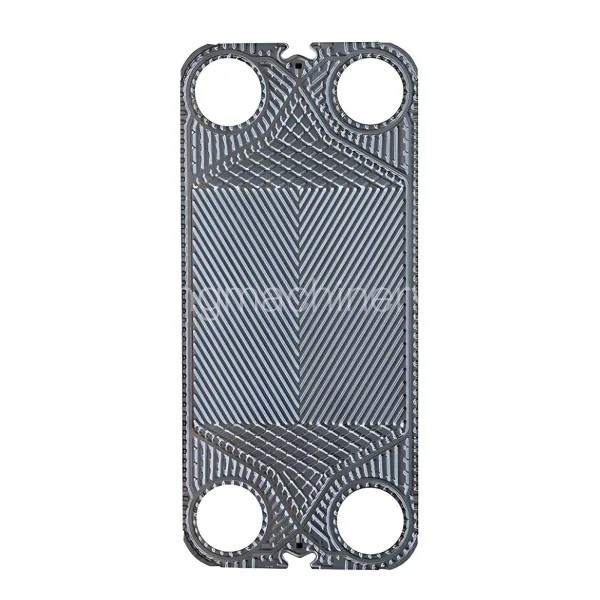

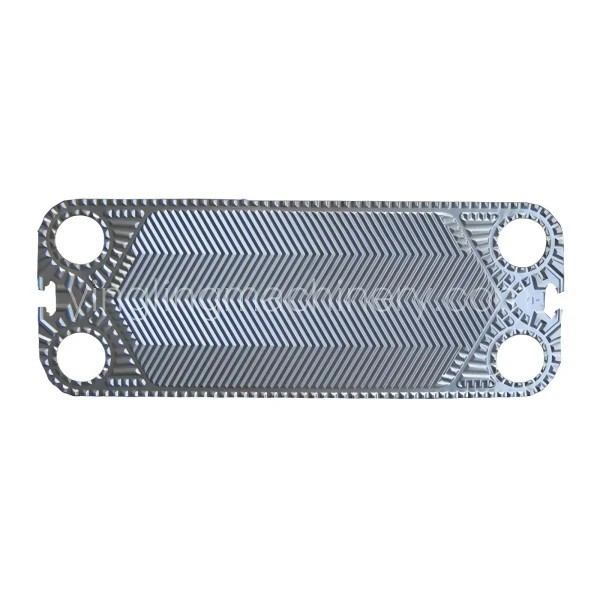

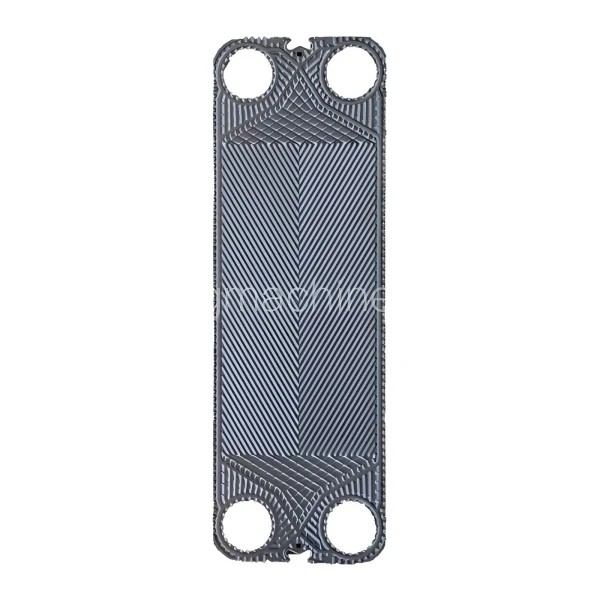

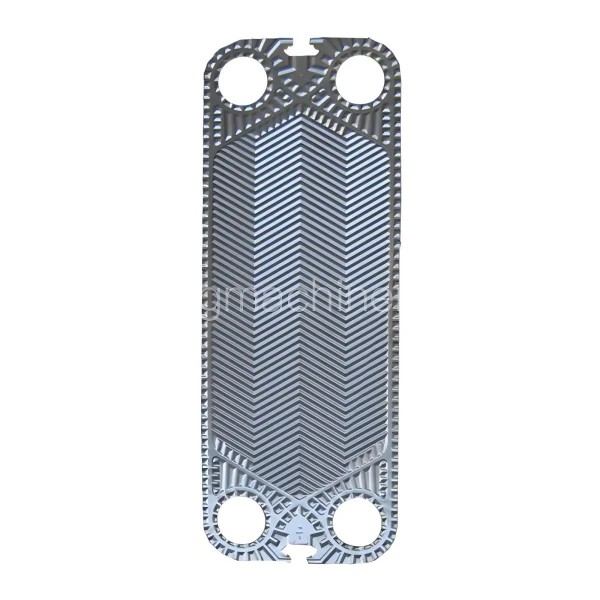

Premium Stainless Steel Heat Exchanger Plate Solutions for Industrial Processing
1.High Heat Transfer Efficiency
2.Excellent Corrosion Resistance
3.recision-Pressed Design
4.Wide Material Selection
5.Reliable Sealing Performance
6.Long Service Life
Premium Stainless Steel Heat Exchanger Plate Solutions for Industrial Processing
Product Overview & Engineering Standard
The heat transfer plate is the essential thermodynamic element in any gasketed plate heat exchanger unit. Designed for superior energy recovery and fluid management, our precision-manufactured stainless steel heat exchanger plate series fulfills the rigorous operational demands of global process industries. Whether your facility is performing scheduled preventive maintenance, expanding fluid handling throughput, or replacing worn components, choosing a high-reliability phe plate is critical to preventing fluid intermixing, avoiding unscheduled downtime, and extending overall system service life.
Utilizing state-of-the-art hydraulic pressing machinery and high-grade stainless steel alloys, every plate is formed with optimized chevron corrugation profiles. These engineered grooves generate high fluid turbulence even at lower velocity thresholds, significantly elevating thermal transfer rates while resisting particulate fouling and mineral scaling. Fully interchangeable with major global OEM equipment manufacturers, our replacement plates provide a cost-effective, high-reliability alternative for demanding industrial heating and cooling operations worldwide.
Key Features & Technical Advantages
Advanced Chevron Profile Geometry: Specially engineered V-shaped chevron angles (High-Theta and Low-Theta profile designs) optimize turbulent liquid flow, enabling maximum heat energy exchange while maintaining controlled pressure drops.
Superior Corrosion Protection: Fabricated from certified raw materials, every stainless steel heat exchanger plate provides high resistance to pitting, crevice oxidation, and aggressive fluid degradation.
100% OEM Dimensional Interchangeability: Engineered to precise tolerances, serving as direct 1:1 replacement parts for major international brands (including Alfa Laval, Sondex, GEA, APV, Tranter, and Kelvion).
High-Tonnage Single-Stroke Hydraulic Pressing: Plates are formed under uniform hydraulic force in a single pressing stroke, ensuring consistent wall thickness, eliminating localized material fatigue, and enhancing structural pressure durability.
Engineered Flow Distribution Entry: Specialized port distribution areas ensure liquid spreads evenly across the entire active heat exchange surface, eliminating stagnant flow dead zones and localized thermal stress.
Technical Specifications & Material Selection
| Technical Parameter | Standard & Custom Engineering Specifications |
| Material Grade Options | Stainless Steel 304, Stainless Steel 316L, Titanium (Gr. 1/2), Hastelloy C-276, 254 SMO, Nickel |
| Plate Thickness Range | 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm |
| Corrugation Profiles | High Theta (H-Theta), Low Theta (L-Theta), and Mixed Theta configurations |
| Connection Port Sizes | DN25 to DN500 (1 inch to 20 inches) |
| Quality & Compliance | ISO 9001:2015 certified, CE / PED compliant, 100% Dye Penetrant Testing |
Industrial Applications
Our industrial phe plate lineup and custom stainless steel heat exchanger plate options are trusted by plant maintenance directors and project engineers across primary processing sectors:
Chemical & Petrochemical Processing: Acid solution cooling, organic solvent recovery, aggressive fluid thermal processing, and condensate temperature control.
Food, Beverage & Dairy Production: Sanitary milk pasteurization, beer wort cooling, juice thermal treatment, and Clean-in-Place (CIP) heating systems.
HVAC & District Thermal Management: High-rise building pressure isolation, central chiller heat recovery, geothermal energy transfer, and district heating loops.
Marine Engineering & Heavy Industry: Central fresh water engine cooling, lubricating oil thermal regulation, jacket water preheating, and offshore utility processing.
Quality Assurance & B2B Supply Chain Reliability
Unplanned plant shutdowns can cause significant financial disruption. Our production facilities apply strict non-destructive quality checks at every step of manufacturing:
Automated CMM Dimensional Verification: Coordinate measuring machines (CMM) evaluate pressing depth, sealing channel alignment, and perimeter dimensions against CAD drawings.
100% Dye Penetrant Testing: Every single phe plate undergoes non-destructive dye penetrant inspection to detect micro-cracks, pinholes, or surface defects prior to packing.
Direct Factory Value: Enjoy OEM-equivalent thermal efficiency and operating longevity at competitive factory-direct pricing, lowering annual maintenance and repair (MRO) expenses.
Global Supply Readiness: Standard models and high-demand sizes are maintained in inventory for quick dispatch to minimize emergency plant shutdown delays.
Request a B2B Quote & Technical Cross-Reference
Looking for an exact-fit replacement stainless steel heat exchanger plate or an OEM-compatible phe plate for your facility? Contact our technical engineering team with your model specifications or drawing details to receive instant cross-reference validation, CAD drawings, and factory-direct pricing.
