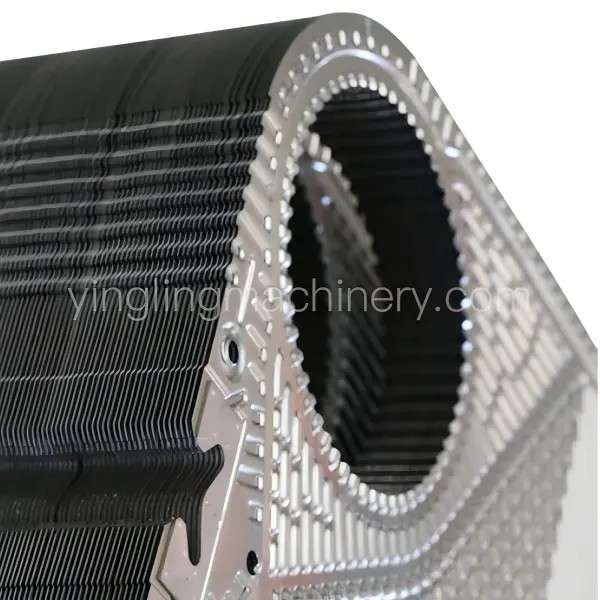

High-Precision Replacement Plates for Plate to Plate Heat Exchanger Systems
1.High Heat Transfer Efficiency
2.Excellent Corrosion Resistance
3.recision-Pressed Design
4.Wide Material Selection
5.Reliable Sealing Performance
6.Long Service Life
High-Precision Replacement Plates for Plate to Plate Heat Exchanger Systems
Product Overview
The heat transfer plate is the core operational component of any gasketed or industrial thermal processing unit. Designed for maximum thermodynamic efficiency, our precision-pressed replacement plates are engineered to enhance the performance of your plate to plate heat exchanger systems. Whether you are performing routine plant maintenance, replacing worn or corroded components, or expanding operational capacity, our heat exchanger plates deliver optimal heat transfer coefficients, precise fluid distribution, and long-term mechanical durability.

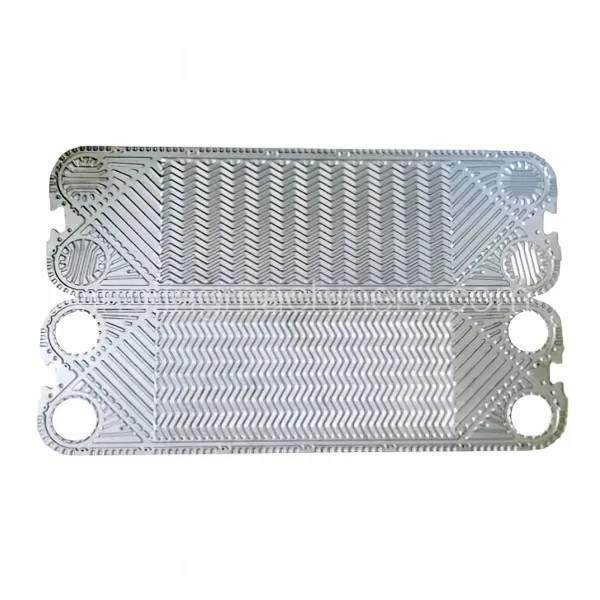

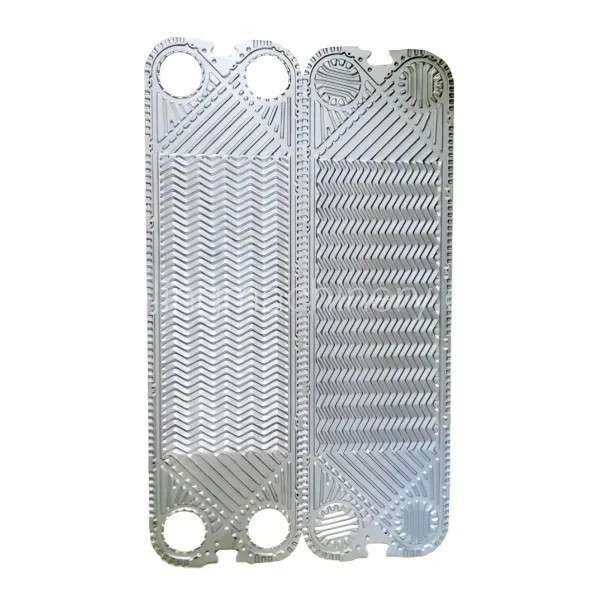

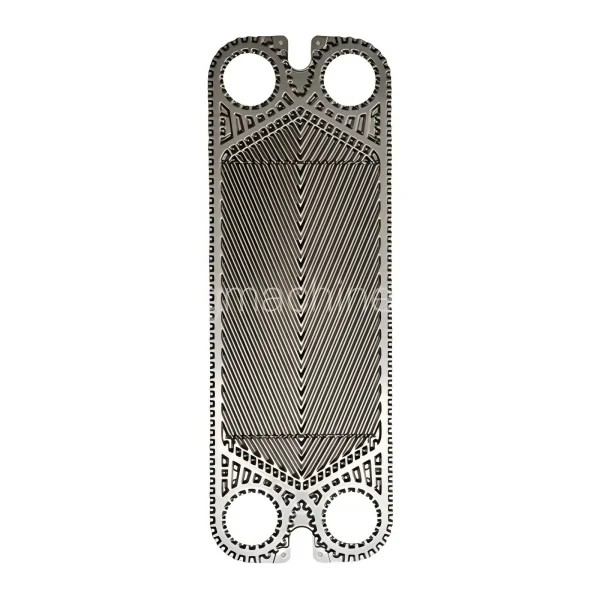

Manufactured using high-tonnage precision pressing molds and premium-grade sheet metals, each plate features advanced chevron corrugation patterns. This induces intense fluid turbulence even at low flow velocities, significantly minimizing fouling while maximizing the effective heat exchange surface area. Fully compatible with major international OEM equipment brands, our premium plate plate heat exchanger replacement parts offer a cost-effective, high-reliability solution for critical industrial heating and cooling applications worldwide.
Core Engineering Advantages
Advanced Chevron Corrugation Patterns: Optimized chevron angles (High-Theta and Low-Theta designs) maximize turbulent flow and heat transfer efficiency while controlling pressure drop across the plate pack.
1:1 OEM Brand Compatibility: Engineered with precise dimensional accuracy to serve as direct replacement plates for major global manufacturers (including Alfa Laval, Sondex, GEA, APV, Tranter, and Kelvion).
Single-Step High-Tonnage Pressing: Pressed in a single stroke under thousands of tons of hydraulic force, guaranteeing uniform material thickness, eliminating residual internal stress, and ensuring high pressure resistance.

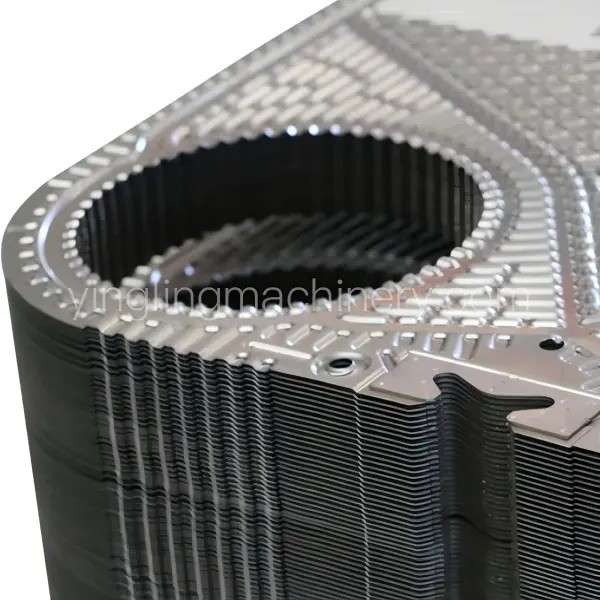

Optimized Port & Flow Entry Zone: Specialized distribution area designs ensure even fluid spreading across the entire plate surface, preventing dead zones, localized overheating, and sediment buildup.
Premium Corrosion-Resistant Alloys: Available in SS304, SS316L, Titanium, Hastelloy C-276, 254 SMO, and Nickel alloys to handle severe chemical media, saltwater, and aggressive acids.
Technical Specifications
| Technical Parameter | Standard & Custom Engineering Specifications |
| Plate Thickness Options | 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm |
| Raw Material Selection | SS304, SS316L, Titanium (Gr. 1/Gr. 2), Hastelloy C-276, 254 SMO, Nickel |
| Corrugation Patterns | High Theta (H-Theta), Low Theta (L-Theta), Mixed Theta Design |
| Connection Port Diameter | DN25 to DN500 (1 inch to 20 inches) |
| Testing & Quality Assurance | ISO 9001:2015, CE / PED Compliant, 100% Dye Penetrant Tested for micro-cracks |
Industrial Applications
Our premium replacement plates for plate plate heat exchanger units are widely deployed across high-demand processing sectors:
Chemical & Petrochemical Processing: Acid cooling, organic solvent recovery, polymer cooling, and volatile chemical fluid processing.
Food, Beverage & Dairy Industry: Milk and juice pasteurization, wort cooling, syrup concentration, and Sanitary Clean-in-Place (CIP) systems.
HVAC & District Energy: High-rise building pressure breakers, central cooling loops, geothermal energy transfer, and district thermal networks.
Marine & Heavy Machinery: Main engine central fresh water cooling, lubricating oil cooling, jacket water preheating, and offshore processing platforms.
Why Choose Our Heat Exchanger Plates?
As a specialized supplier of thermal equipment parts, we understand that plant downtime is costly. Our production facility uses state-of-the-art CMM measuring tools and automated optical inspection systems to verify every plate's drawing dimensions and pressing depth.
100% Quality Inspection: Every plate to plate heat exchanger plate undergoes rigorous dye-penetrant testing to eliminate micro-cracks or structural defects prior to shipment.
Factory-Direct Savings: Enjoy OEM-equivalent performance and lifespan at a fraction of original manufacturer prices, reducing your plant's MRO (Maintenance, Repair, and Operations) budget.
Fast Global Shipping: Extensive inventory of popular plate models ready for quick dispatch to minimize unexpected operational downtime.
Request Your OEM Replacement Plate Quote Today
Need exact-fit replacement plates for your plate to plate heat exchanger? Contact our technical engineering team with your model number or drawing details to receive instant cross-reference verification, CAD drawings, and factory-direct wholesale pricing.
