Industrial High-Efficiency Heat Exchanger Plate Solutions for Thermal Processing
1.High Heat Transfer Efficiency
2.Excellent Corrosion Resistance
3.recision-Pressed Design
4.Wide Material Selection
5.Reliable Sealing Performance
6.Long Service Life
Industrial High-Efficiency Heat Exchanger Plate Solutions for Thermal Processing
Product Overview & Technical Excellence

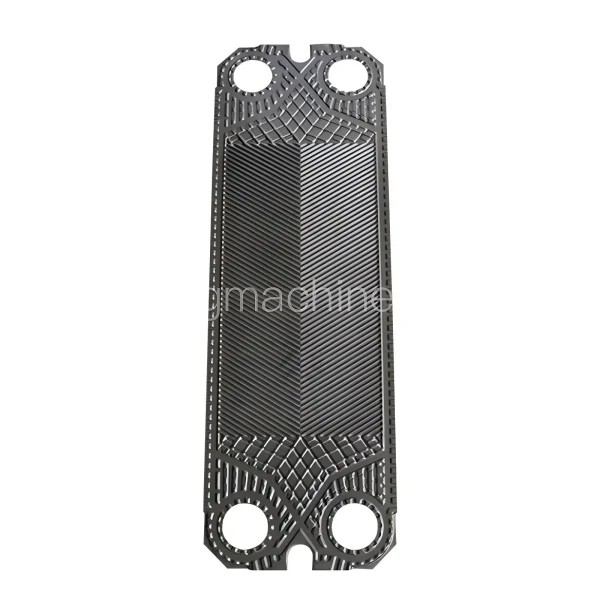

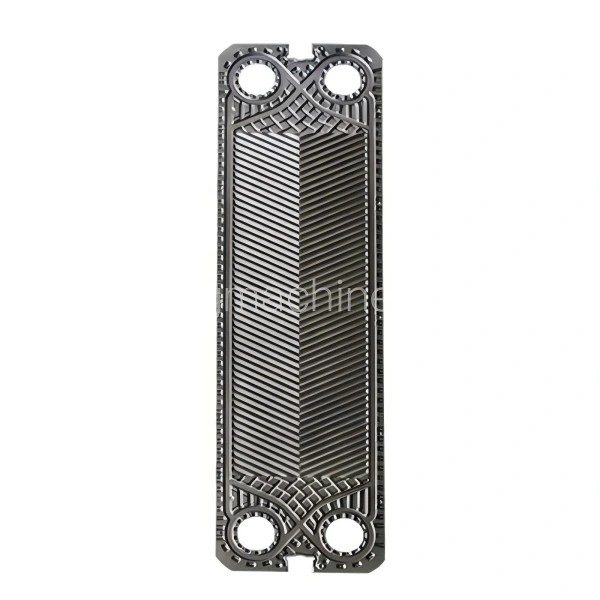

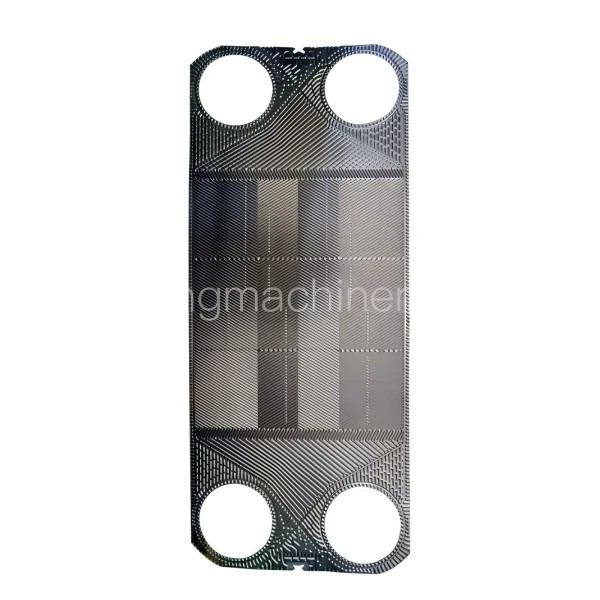

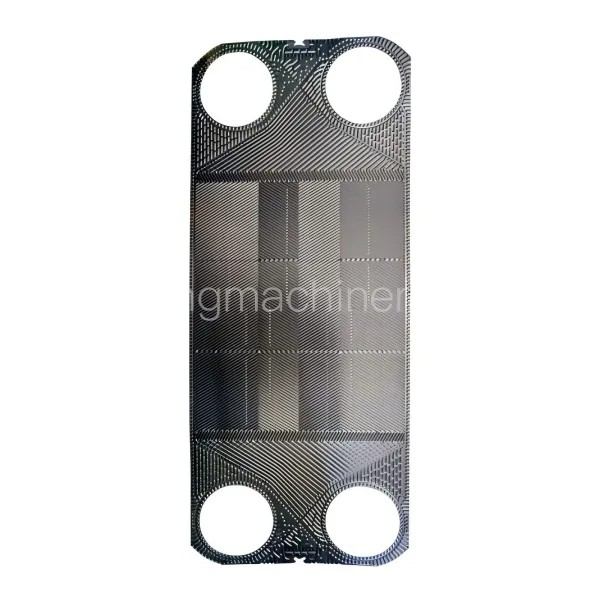

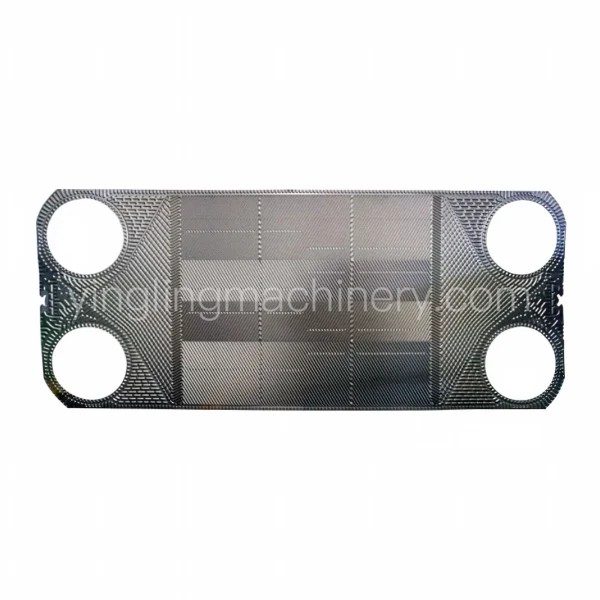

The heat transfer plate serves as the core thermodynamic element inside any gasketed heat exchange system. Designed for high fluid turbulence and maximum energy recovery, our precision-pressed high-efficiency heat exchanger plate lineup is built to meet the most stringent industrial process requirements. Whether your facility is conducting scheduled equipment maintenance, expanding thermal throughput, or replacing worn-out components, selecting an OEM-compatible plate for plate heat exchanger systems is critical to avoiding unscheduled downtime and lowering operating costs.
Utilizing advanced hydraulic pressing machinery and premium-grade metal alloys, every plate features optimized chevron corrugation geometry. These engineered patterns induce strong liquid turbulence even at low velocity thresholds, significantly elevating thermal transfer rates while resisting particulate accumulation and scaling. Fully interchangeable with major global OEM equipment manufacturers, our replacement plates provide an economical, highly reliable choice for demanding heating and cooling applications worldwide.
Key Features & Industrial Advantages
Optimized Chevron Profile Corrugation: Specially calculated chevron angles (High-Theta and Low-Theta profiles) promote fluid turbulence, enabling rapid heat energy exchange while maintaining controlled differential pressure loss.
100% Direct OEM Compatibility: Engineered to precise dimensional tolerances, providing seamless 1:1 replacement for major international brands (including Alfa Laval, Sondex, GEA, APV, Tranter, and Kelvion).
High-Tonnage Single-Stroke Hydraulic Pressing: Formed in a single stroke under uniform hydraulic force, ensuring consistent wall thickness, eliminating localized material stress, and raising working pressure durability.
Engineered Flow Entry Zone: Specialized port entry distribution designs ensure fluid spreads evenly across the active thermal transfer surface, eliminating dead spots and localized thermal degradation.
Extensive Alloy Portfolio: Available in diverse metallurgical grades to handle aggressive chemical solutions, high-salinity marine environments, and high-temperature processing media.
Material Options & Technical Specifications
| Technical Parameter | Standard & Custom Engineering Specifications |
| Material Grades | Stainless Steel 304, Stainless Steel 316L, Titanium (Gr. 1/2), Hastelloy C-276, 254 SMO, Nickel |
| Thickness Variations | 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm |
| Corrugation Profiles | High Theta (H-Theta), Low Theta (L-Theta), and Mixed Theta pressed profiles |
| Port Size Range | DN25 to DN500 (1 inch to 20 inches) |
| Quality Control & Testing | ISO 9001:2015 certified, CE / PED compliant, 100% Dye Penetrant Testing |
Industrial Applications
Our advanced high-efficiency heat exchanger plate options and tailored plate for plate heat exchanger solutions are trusted by plant maintenance directors and project engineers across major processing industries:
Chemical & Petrochemical Processing: Acid cooling, solvent recovery, organic fluid heat exchange, and polymer thermal regulation.
Food, Beverage & Dairy Production: Milk pasteurization loops, juice thermal processing, beer wort cooling, and sanitary Clean-in-Place (CIP) systems.
HVAC & District Thermal Systems: High-rise building pressure isolation, central chiller heat recovery, geothermal energy transfer, and regional heating networks.
Marine Engineering & Heavy Industry: Central fresh water engine cooling, lubricating oil thermal control, jacket water preheating, and offshore extraction utility platforms.
Quality Control & B2B Procurement Assurance
Unplanned plant shutdowns can cause significant financial disruption. Our production facilities maintain rigorous quality verification procedures at every stage of manufacturing to deliver long-term operational performance:
Automated CMM Dimensional Checks: Precision coordinate measuring machines (CMM) evaluate pressing depth, sealing channel alignment, and perimeter dimensions against CAD drawings.
100% Non-Destructive Dye Penetrant Inspection: Every individual high-efficiency heat exchanger plate undergoes dye penetrant testing to identify micro-cracks, pinholes, or surface defects prior to packing.
Direct Manufacturer Value: Receive OEM-equivalent thermal efficiency and long service life at competitive factory-direct pricing, lowering annual maintenance, repair, and operations (MRO) expenses.
Global Supply Readiness: Standard models and high-demand sizes are maintained in inventory for fast global shipment to minimize emergency maintenance delays.
Request a B2B Quote & Technical Cross-Reference
Looking for a reliable replacement plate for plate heat exchanger equipment at your facility? Contact our technical engineering team with your model specifications or drawing details to receive instant cross-reference validation, CAD drawings, and factory-direct pricing.
