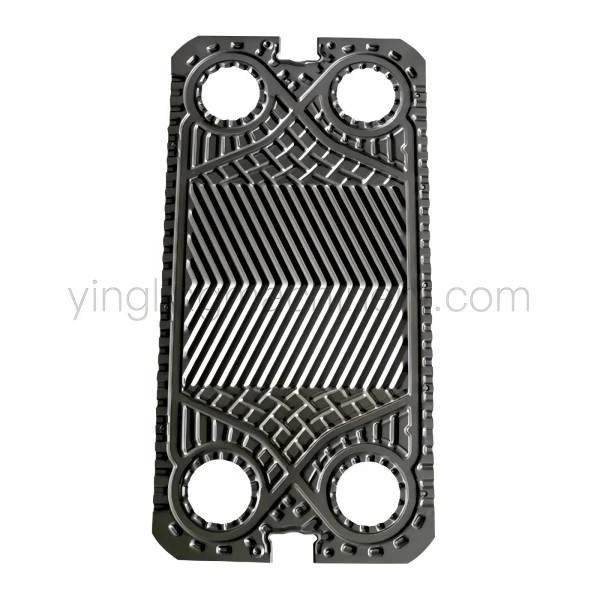

Industrial Stainless Steel Heat Exchanger Plate & Custom Engineering Solutions
1.High Heat Transfer Efficiency
2.Excellent Corrosion Resistance
3.recision-Pressed Design
4.Wide Material Selection
5.Reliable Sealing Performance
6.Long Service Life
Industrial Stainless Steel Heat Exchanger Plate & Custom Engineering Solutions
Product Overview & Engineering Standard
The heat transfer plate is the essential working element inside any gasketed plate heat exchanger. Engineered for high thermodynamic efficiency and fluid boundary control, our premium stainless steel heat exchanger plate range is manufactured to satisfy demanding global processing standards. Whether you are performing routine plant maintenance, expanding your thermal system capacity, or replacing legacy equipment, choosing a precision-crafted custom plate heat exchanger plate is key to preventing fluid intermixing, avoiding unplanned downtime, and maximizing equipment service life.

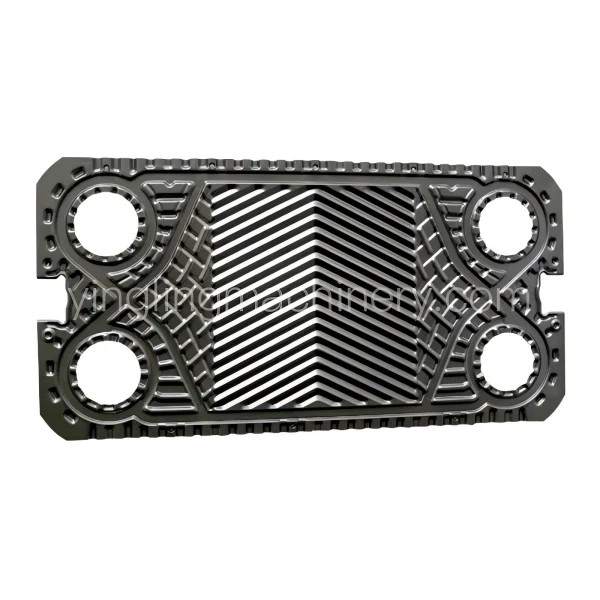

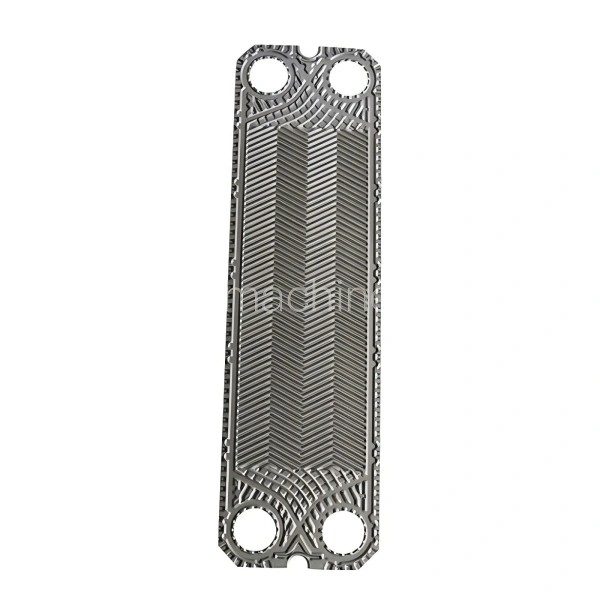

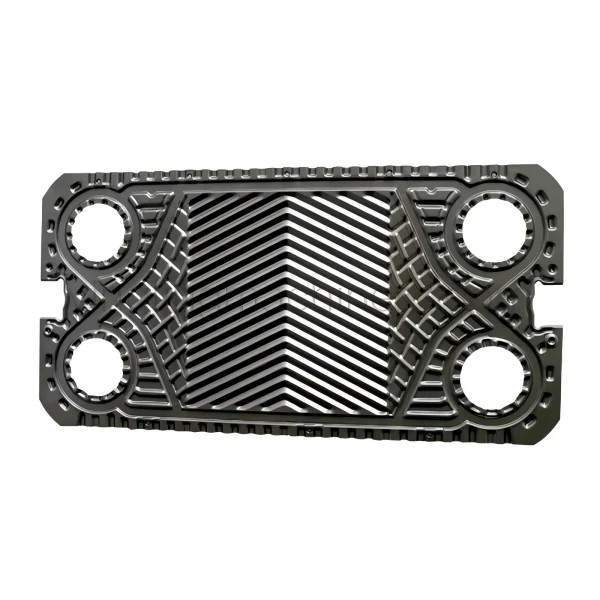

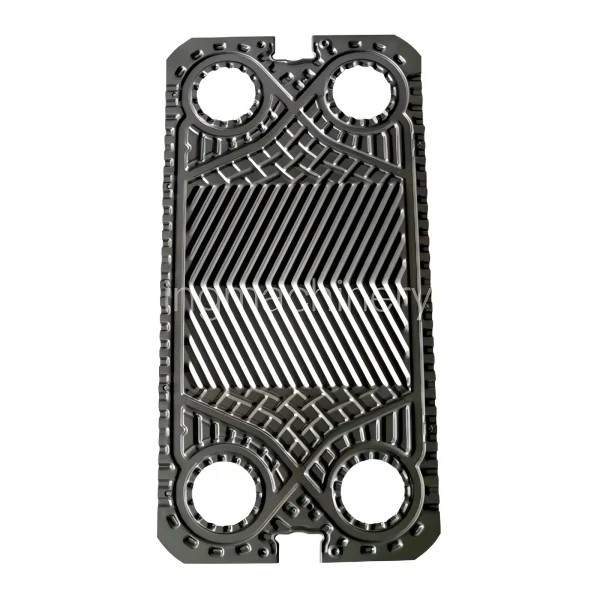

Utilizing state-of-the-art hydraulic pressing technology and certified raw materials, every plate features optimized chevron corrugation patterns. These pressed grooves generate intense fluid turbulence even at low velocity thresholds, raising thermal transfer rates while resisting particulate accumulation and scaling. Fully interchangeable with major global OEM brands, our comprehensive product portfolio offers a cost-effective, high-reliability solution for diverse heating, cooling, and heat recovery processes worldwide.
Key Technical Features & Benefits
Advanced Chevron Profile Corrugation: Specially calculated V-shaped corrugation angles (High-Theta and Low-Theta profiles) promote turbulent flow, enabling maximum thermal energy exchange while keeping pressure drop manageable.
Superior Corrosion Resistance: Premium grade stainless steel formulations (including SS304, SS316, and SS316L) deliver high oxidation resistance and mechanical stability across challenging chemical and aqueous fluids.
1:1 OEM Interchangeability: Dimensions and sealing channel geometries are pressed to precise tolerances, serving as direct replacements for major international manufacturers (such as Alfa Laval, Sondex, GEA, APV, Tranter, and Kelvion).
Single-Stroke High-Tonnage Pressing: Plates are formed in a single pressing stroke under uniform hydraulic force, ensuring consistent wall thickness, eliminating structural stress points, and enhancing working pressure durability.
Engineered Flow Distribution Entry: Optimized port distribution areas ensure liquid spreads evenly across the entire active heat transfer surface, eliminating dead pockets and localized thermal stress.
Material Options & Technical Specifications
| Technical Parameter | Standard & Custom Engineering Options |
| Material Grades | Stainless Steel 304, Stainless Steel 316L, Titanium (Gr. 1/2), Hastelloy C-276, 254 SMO, Nickel |
| Thickness Variations | 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm |
| Corrugation Configurations | High Theta (H-Theta), Low Theta (L-Theta), and Mixed Theta pressed profiles |
| Connection Port Sizes | DN25 to DN500 (1 inch to 20 inches) |
| Quality & Compliance | ISO 9001:2015 certified, CE / PED compliant, 100% Dye Penetrant Testing |
Industrial Applications
Our industrial stainless steel heat exchanger plate units and tailored custom plate heat exchanger plate configurations are relied upon by plant operations and maintenance engineers across primary sectors:
Chemical & Petrochemical Processing: Acid and solvent cooling, organic chemical heat recovery, polymer heating, and condensate thermal regulation.
Food, Beverage & Dairy Production: Sanitary milk pasteurization, beer wort cooling, juice concentration, and Clean-in-Place (CIP) fluid heating loops.
HVAC & District Energy: Pressure isolation in high-rise buildings, central chiller system heat exchange, geothermal heat transfer, and regional heating networks.
Marine Engineering & Heavy Industry: Central fresh water engine cooling, lubricating oil thermal control, jacket water preheating, and offshore platform utilities.
Quality Control & B2B Supply Chain Reliability
Unplanned operational interruptions can cause significant financial losses. Our ISO-certified production facilities apply strict non-destructive quality checks at every step of manufacturing:
Automated CMM Dimensional Checks: Precision coordinate measuring machines (CMM) evaluate pressing depth, sealing groove alignment, and perimeter dimensions against CAD drawings.
100% Dye Penetrant Inspection: Every individual stainless steel heat exchanger plate undergoes dye penetrant testing to detect micro-cracks, pinholes, or surface defects prior to packing.
Direct Manufacturer Value: Receive OEM-equivalent thermal efficiency and operating longevity at competitive factory-direct pricing, lowering annual maintenance and repair (MRO) expenses.
Tailored Engineering Support: If your application involves non-standard port connections or unique pressure limits, we can fabricate a specialized custom plate heat exchanger plate built specifically to your process parameters.
Request a B2B Quote & Technical Cross-Reference
Need exact-fit replacement plates or a tailored custom plate heat exchanger plate design for your plant? Contact our technical engineering team with your model specifications or drawing details to receive instant cross-reference validation, CAD drawings, and factory-direct pricing.
