Industrial Plate Heat Exchanger Plate Solutions for Thermal Processing
Product Overview & Engineering Standard

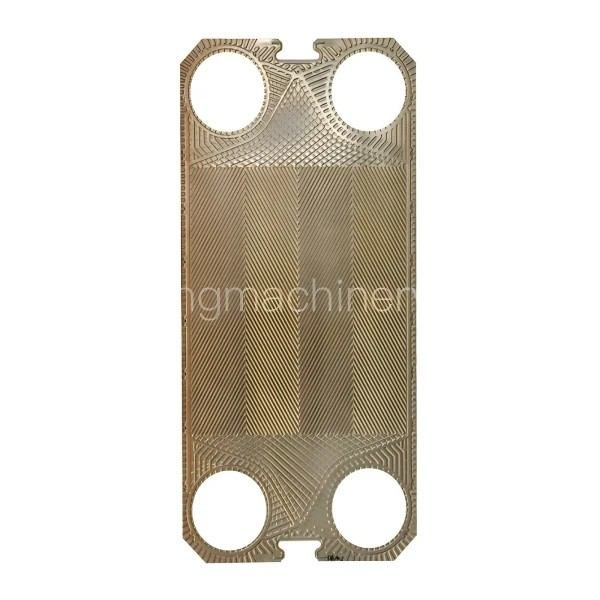

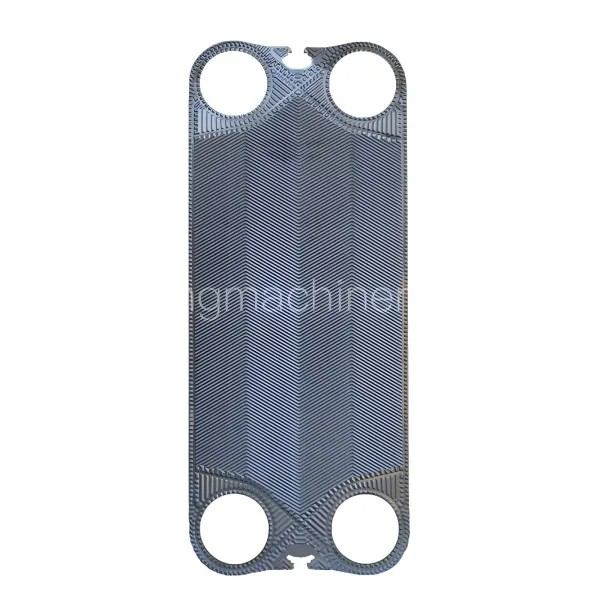

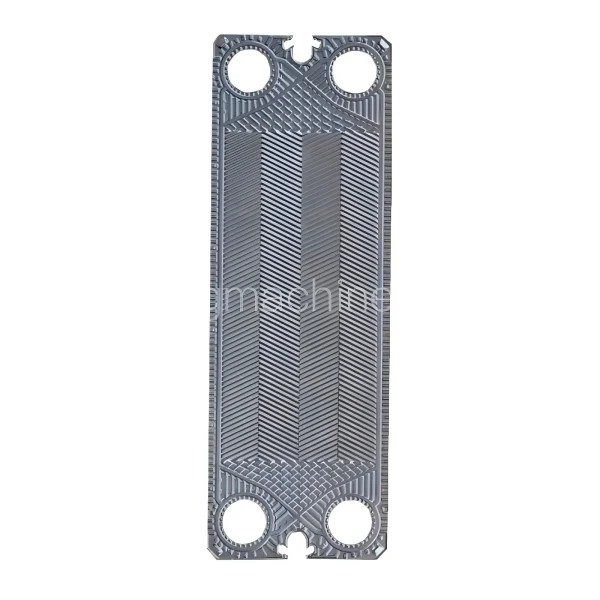

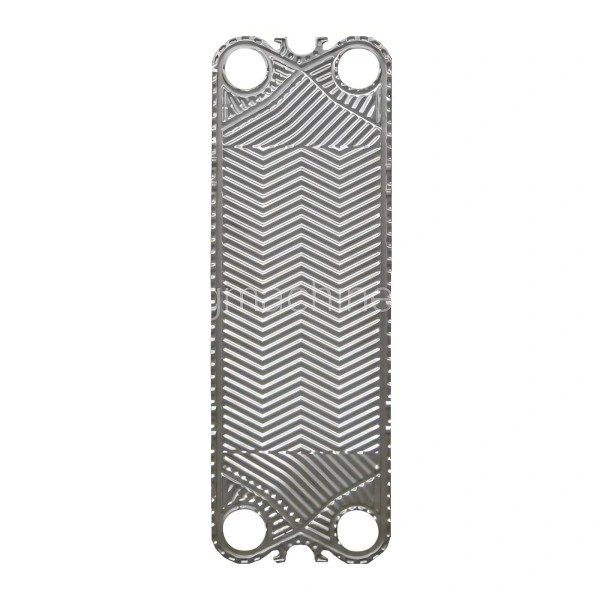

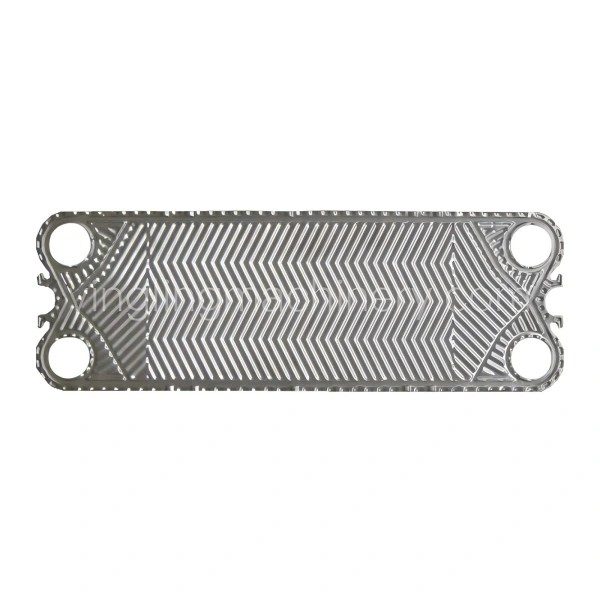

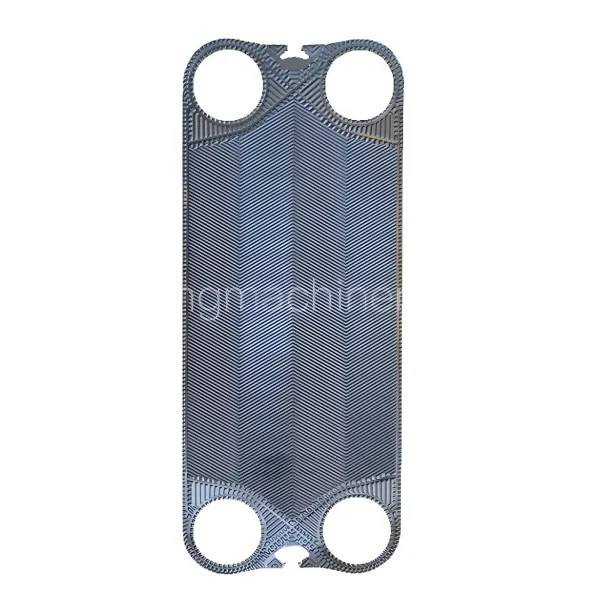

The heat transfer plate is the primary thermodynamic working element in any gasketed heat exchange system. Designed to achieve optimal thermal recovery and boundary fluid management, our high-precision plate heat exchanger plate lineup fulfills the most stringent operational standards across process industries. Whether your plant is performing scheduled preventive maintenance, expanding fluid handling throughput, or replacing corroded components, choosing a reliable pheat exchanger plate is essential to preventing fluid intermixing, avoiding unscheduled downtime, and extending overall system service life.
Utilizing advanced hydraulic pressing machinery and certified raw materials, every plate is formed with optimized chevron corrugation profiles. These pressed patterns induce intense fluid turbulence even at low velocity thresholds, significantly elevating thermal transfer rates while resisting particulate fouling and mineral scaling. Fully interchangeable with major global OEM equipment manufacturers, our replacement plates provide an economical, highly reliable alternative for demanding industrial heating and cooling applications worldwide.
Key Technical Features & Benefits
Advanced Chevron Profile Corrugation: Specially calculated V-shaped chevron angles (High-Theta and Low-Theta profiles) promote turbulent liquid flow, enabling maximum heat energy exchange while maintaining controlled differential pressure drops.
100% Direct OEM Interchangeability: Engineered to exact dimensional tolerances, providing direct 1:1 replacement capability for major international manufacturers (including Alfa Laval, Sondex, GEA, APV, Tranter, and Kelvion).
High-Tonnage Single-Stroke Hydraulic Pressing: Formed in a single pressing stroke under uniform hydraulic force, ensuring consistent plate wall thickness, eliminating localized material fatigue, and raising working pressure durability.
Engineered Flow Distribution Entry: Specialized port entry distribution designs ensure liquid spreads evenly across the entire active heat transfer surface, eliminating dead spots and localized thermal degradation.
Extensive Alloy Compatibility: Available in stainless steel (SS304, SS316L), Titanium, Hastelloy, 254 SMO, and Nickel alloys to withstand severe corrosive chemicals, saltwater, and high-temperature processing media.
Technical Specifications & Material Selection
| Technical Parameter | Standard & Custom Engineering Specifications |
| Material Grade Options | Stainless Steel 304, Stainless Steel 316L, Titanium (Gr. 1/2), Hastelloy C-276, 254 SMO, Nickel |
| Plate Thickness Range | 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm |
| Corrugation Profiles | High Theta (H-Theta), Low Theta (L-Theta), and Mixed Theta pressed profiles |
| Connection Port Sizes | DN25 to DN500 (1 inch to 20 inches) |
| Quality & Compliance | ISO 9001:2015 certified, CE / PED compliant, 100% Dye Penetrant Testing |
Primary Industrial Applications
Our high-efficiency plate heat exchanger plate options and precision pheat exchanger plate replacement solutions are trusted by plant maintenance directors and project engineers across primary processing sectors:
Chemical & Petrochemical Processing: Acid solution cooling, organic solvent recovery, aggressive fluid handling, and polymer thermal regulation.
Food, Beverage & Dairy Production: Sanitary milk pasteurization, beer wort cooling, juice thermal treatment, and Clean-in-Place (CIP) heating loops.
HVAC & District Thermal Management: High-rise building pressure isolation, central chiller heat recovery, geothermal energy transfer, and district heating loops.
Marine Engineering & Heavy Industry: Central fresh water engine cooling, lubricating oil thermal regulation, jacket water preheating, and offshore utility processing.
Quality Control & B2B Supply Chain Reliability
Unplanned plant shutdowns can cause significant financial disruption. Our production facilities apply strict non-destructive quality checks at every step of manufacturing:
Automated CMM Dimensional Checks: Coordinate measuring machines (CMM) evaluate pressing depth, sealing channel alignment, and perimeter dimensions against CAD drawings.
100% Non-Destructive Dye Penetrant Inspection: Every individual plate heat exchanger plate undergoes dye penetrant testing to detect micro-cracks, pinholes, or surface defects prior to packing.
Direct Manufacturer Value: Enjoy OEM-equivalent thermal efficiency and operating longevity at competitive factory-direct pricing, lowering annual maintenance and repair (MRO) expenses.
Global Supply Readiness: Standard pheat exchanger plate models and high-demand sizes are maintained in inventory for fast global shipment to minimize emergency maintenance delays.
Request a B2B Quote & Technical Cross-Reference
Looking for an exact-fit replacement plate heat exchanger plate for your facility? Contact our technical engineering team with your model specifications or drawing details to receive instant cross-reference validation, CAD drawings, and factory-direct pricing.
