Gasketed Plate Heat Exchanger
Heavy-Duty Gasketed Plate Heat Exchanger Solutions
Engineered for Superior Thermal Performance, Leak-Tight Reliability, and Easy Maintenance

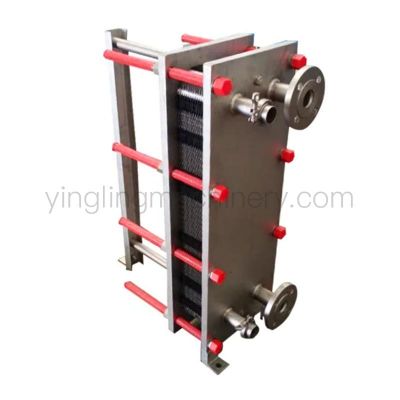

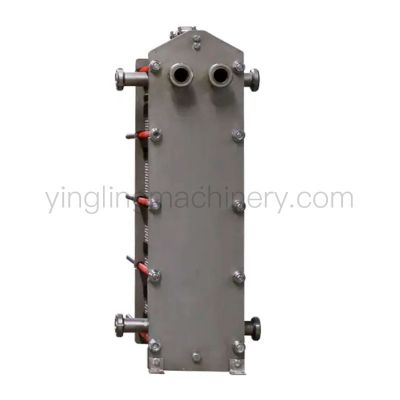

In heavy industrial processing, HVAC systems, and chemical refining, operational continuity relies on reliable thermal management. The Gasketed Plate Heat Exchanger (GPHE) is widely recognized as the most efficient and maintainable plate-frame heat transfer architecture available. Built with a series of corrugated metal plates fitted with elastomeric seals and compressed between rigid frame covers, these heat exchangers deliver high heat transfer coefficients with minimal internal liquid holdup.
As specialized PHE gasket manufacturers and integrated heat exchanger suppliers, we engineer complete gasketed units as well as direct aftermarket replacement components. Whether you need an industrial unit for high-flow cooling, a specialized chemical isolation loop, or precision elastomeric gaskets for plant maintenance, our thermal technology provides exceptional energy savings, zero cross-contamination, and rapid return on investment.
Technical Specifications & Elastomeric Material Matrix
Our gasketed plate heat exchangers and elastomeric seals are produced under strict ISO quality standards to ensure total compatibility across diverse fluid environments:
| Engineering Parameter | Standard Operational Capabilities |
| Thermal Efficiency Rate | Up to 95%+ (Logarithmic Mean Temp Difference down to 1°C) |
| Plate Alloy Selection | AISI 304, AISI 316L, Titanium (Gr.1/Gr.2), SMO 254, Hastelloy C-276 |
| Gasket Elastomers | NBR (Food/Industrial Grade), EPDM (High-Temp Water/Steam), Viton / FKM |
| Gasket Attachment Types | Clip-On / Snap-In (Glue-Free) & Bonded / Glued Types |
| Operating Pressure | Standard PN10 / PN16 / PN25 bar (1.0 MPa to 2.5 MPa / Up to 360 PSI) |
| Operating Temperature | -35°C to +180°C (depending on elastomer formulation) |
| Leak Safety Protection | Double-seal design with leak-detection grooves to prevent media mixing |
Key Advantages of Our Gasketed Plate Heat Exchangers
1. Superior Thermal Efficiency & Space Savings
The chevron corrugation pattern generates high internal fluid turbulence, disrupting boundary layers even at low flow velocities. Compared to traditional shell-and-tube exchangers, a Gasketed Plate Heat Exchanger requires up to 70% less floor area for identical heat duties, drastically reducing plant footprint and installation costs.
2. Double-Seal Leak Detection Security
Process safety is paramount when handling aggressive fluids or utility water. Our heat exchanger gaskets feature a specialized double-seal barrier with external leak-drainage grooves. In the rare event of gasket wear, fluid escapes safely outward rather than mixing process streams, protecting your pumps, boilers, and product quality.
3. Rapid Field Servicing & Easy Cleaning
Unlike welded or brazed heat exchangers, gasketed frame units can be easily unclamped and opened on-site. Maintenance crews can inspect individual plates, clean fouling deposits, or replace damaged elastomeric gaskets without specialized cutting or welding tools.
Direct Aftermarket Support from Experienced PHE Gasket Manufacturers
Finding reliable replacement seals for existing installations shouldn't interrupt your production schedule. As leading PHE gasket manufacturers, we maintain a massive inventory of direct-fit aftermarket gaskets and pressed plates compatible with major international thermal brands.
30%–50% Budget Savings: Lower your scheduled maintenance and overhaul costs without sacrificing seal longevity.
Vulcanized Quality Control: Every elastomer batch undergoes strict tensile, compression set, and chemical resistance testing before dispatch.
Primary Applications Across Global Industries
Chemical & Petrochemical: Acid cooling, solvent recovery, and jacket water heat exchange.
HVAC & District Heating: Thermal isolation substations, cooling tower isolation, and heat recovery circuits.
Food, Beverage & Pharmaceuticals: Sanitary pasteurization, utility water heating, and CIP loops.
Marine & Offshore Operations: Central jacket cooling and sea-water thermal management utilizing titanium plates.
Request Your Thermal Sizing Calculation & Factory Quote
Ready to upgrade your Gasketed Plate Heat Exchanger loop or source replacement seals directly from premier PHE gasket manufacturers? Contact our technical team today for custom sizing calculations, CAD models, and a direct B2B proposal.
