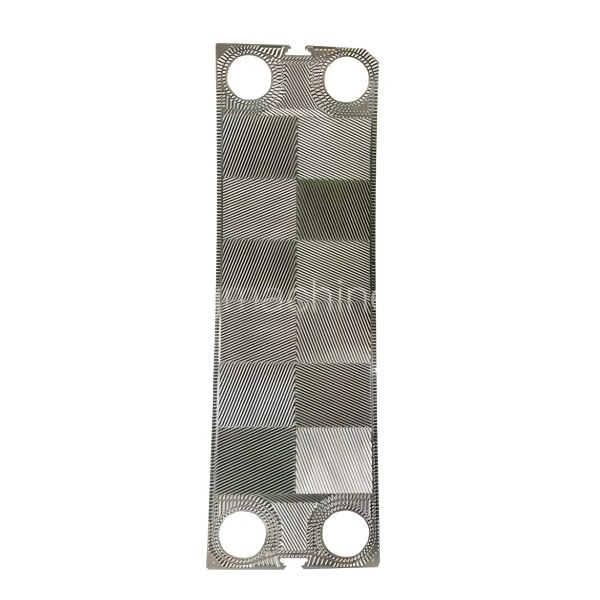

Premium Industrial Stainless Steel Heat Exchanger Plate & PHE Solutions
1.High Heat Transfer Efficiency
2.Excellent Corrosion Resistance
3.recision-Pressed Design
4.Wide Material Selection
5.Reliable Sealing Performance
6.Long Service Life
Premium Industrial Stainless Steel Heat Exchanger Plate & PHE Solutions
Product Overview & Engineering Standard
The heat transfer element is the core thermodynamic component inside any gasketed plate heat exchange system. Designed for superior energy recovery and boundary fluid management, our high-precision heat exchanger plate series fulfills the rigorous operational demands of global process industries. Whether your facility is conducting scheduled preventive maintenance, expanding fluid handling throughput, or replacing worn-out components, choosing a reliable phe plate is critical to preventing fluid contamination, avoiding unscheduled downtime, and extending overall system service life.

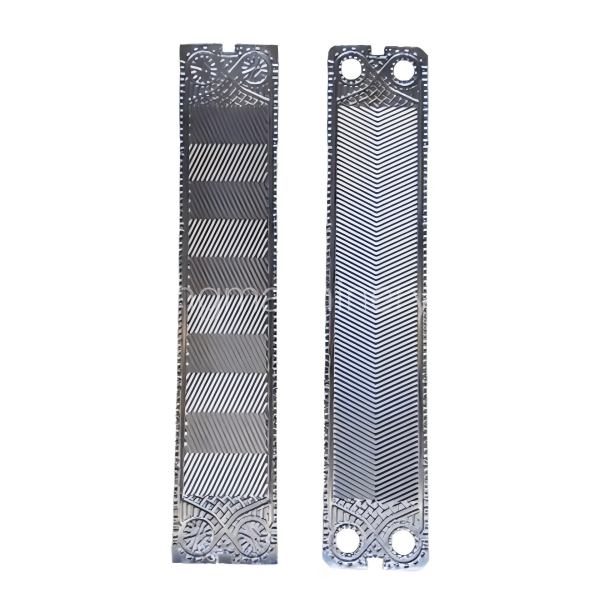

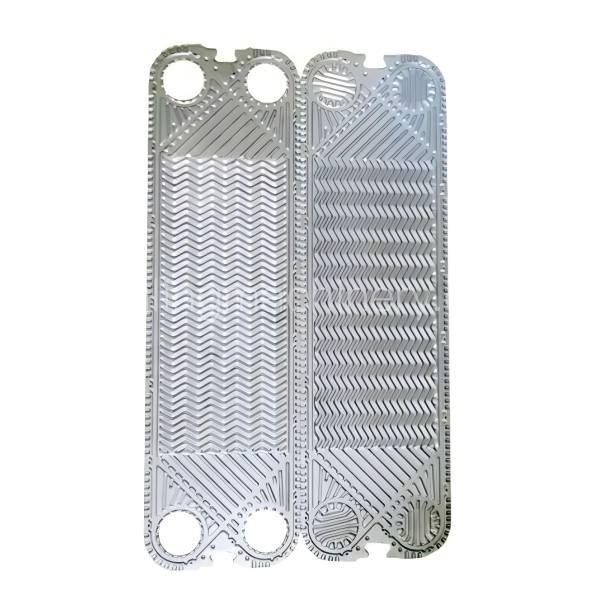

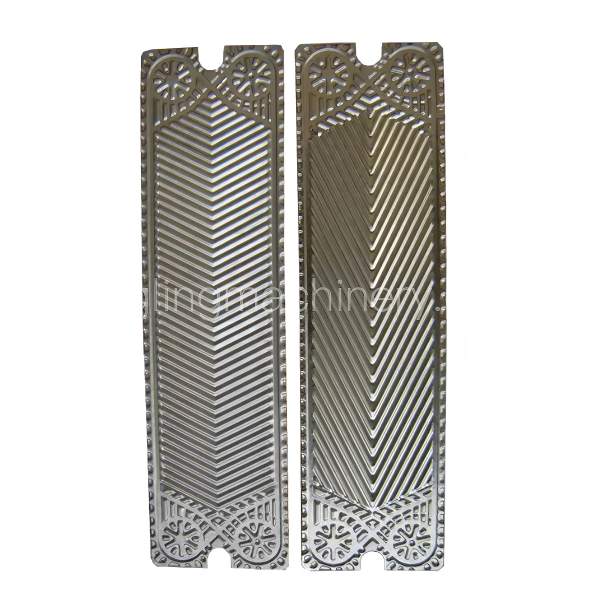

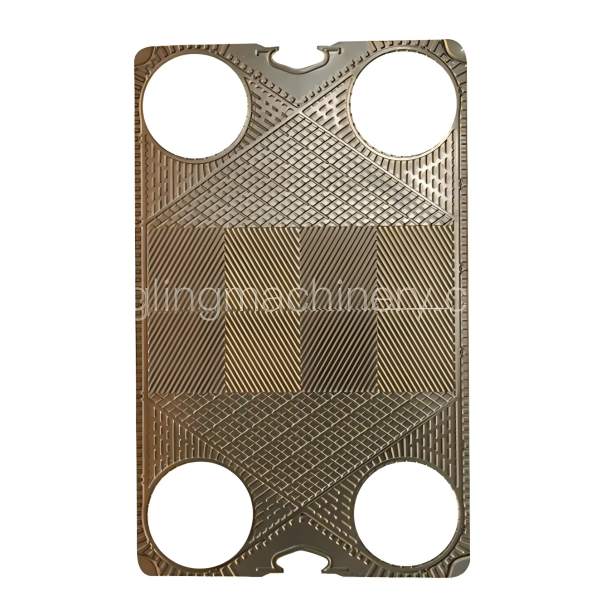

Utilizing state-of-the-art hydraulic pressing machinery and certified raw materials, every stainless steel heat exchanger plate is formed with optimized chevron corrugation profiles. These engineered grooves generate high fluid turbulence even at lower velocity thresholds, significantly elevating thermal transfer rates while resisting particulate accumulation and scaling. Fully interchangeable with major global OEM equipment manufacturers, our replacement plate heat exchanger plate options provide a cost-effective, high-reliability alternative for demanding industrial heating and cooling operations worldwide.
Key Technical Features & Benefits
Advanced Chevron Profile Corrugation: Specially calculated V-shaped chevron angles (High-Theta and Low-Theta profiles) promote turbulent liquid flow, enabling maximum heat energy exchange while maintaining controlled differential pressure drops.
Superior Corrosion Protection: Fabricated from certified raw materials, every stainless steel heat exchanger plate provides high resistance to pitting, crevice oxidation, and aggressive fluid degradation.
100% Direct OEM Interchangeability: Engineered to exact dimensional tolerances, serving as direct 1:1 replacement parts for major international brands (including Alfa Laval, Sondex, GEA, APV, Tranter, and Kelvion).
High-Tonnage Single-Stroke Hydraulic Pressing: Formed in a single pressing stroke under uniform hydraulic force, ensuring consistent plate wall thickness, eliminating localized material fatigue, and raising working pressure durability.
Engineered Flow Distribution Entry Zone: Specialized port entry distribution designs ensure liquid spreads evenly across the active heat exchange surface, eliminating stagnant flow dead zones and localized thermal stress.
Technical Specifications & Material Selection
| Technical Parameter | Standard & Custom Engineering Specifications |
| Material Grade Options | Stainless Steel 304, Stainless Steel 316L, Titanium (Gr. 1/2), Hastelloy C-276, 254 SMO, Nickel |
| Plate Thickness Range | 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm |
| Corrugation Profiles | High Theta (H-Theta), Low Theta (L-Theta), and Mixed Theta pressed profiles |
| Connection Port Sizes | DN25 to DN500 (1 inch to 20 inches) |
| Quality & Compliance | ISO 9001:2015 certified, CE / PED compliant, 100% Dye Penetrant Testing |
Primary Industrial Applications
Our industrial phe plate lineup and custom heat exchanger plate options are trusted by plant maintenance directors and project engineers across primary processing sectors:
Chemical & Petrochemical Processing: Acid solution cooling, organic solvent recovery, aggressive fluid handling, and polymer thermal regulation.
Food, Beverage & Dairy Production: Sanitary milk pasteurization, beer wort cooling, juice thermal treatment, and Clean-in-Place (CIP) heating loops.
HVAC & District Thermal Management: High-rise building pressure isolation, central chiller heat recovery, geothermal energy transfer, and district heating loops.
Marine Engineering & Heavy Industry: Central fresh water engine cooling, lubricating oil thermal regulation, jacket water preheating, and offshore utility processing.
Quality Control & B2B Supply Chain Reliability
Unplanned plant shutdowns can cause significant financial disruption. Our production facilities apply strict non-destructive quality checks at every step of manufacturing:
Automated CMM Dimensional Checks: Coordinate measuring machines (CMM) evaluate pressing depth, sealing channel alignment, and perimeter dimensions against CAD drawings.
100% Non-Destructive Dye Penetrant Inspection: Every individual plate heat exchanger plate undergoes non-destructive dye penetrant testing to detect micro-cracks, pinholes, or surface defects prior to packing.
Direct Manufacturer Value: Receive OEM-equivalent thermal performance and operating longevity at competitive factory-direct pricing, lowering annual maintenance and repair (MRO) expenses.
Global Supply Readiness: Standard stainless steel heat exchanger plate models and high-demand sizes are maintained in inventory for quick dispatch to minimize emergency maintenance delays.
Request a B2B Quote & Technical Cross-Reference
Looking for an exact-fit replacement heat exchanger plate or an OEM-compatible phe plate for your facility? Contact our technical engineering team with your model specifications or drawing details to receive instant cross-reference validation, CAD drawings, and factory-direct pricing.
