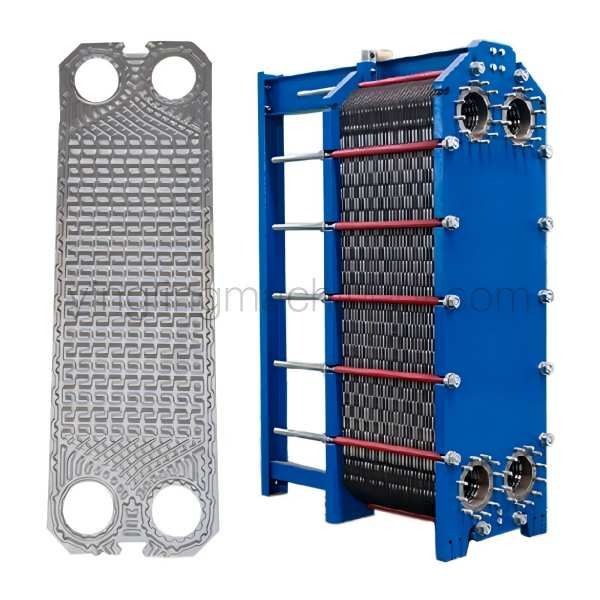

Heavy-Duty Wide Gap Plate Heat Exchangers for High-Viscosity & High-Foul Media
1.Excellent Fouling Resistance
2.Ideal for High-Viscosity Fluids
3.Reduced Clogging Risk
4.High Heat Transfer Efficiency
5.Easy Cleaning and Maintenance
6.Wide Range of Applications
Heavy-Duty Wide Gap Plate Heat Exchangers for High-Viscosity & High-Foul Media
In demanding industrial thermal processes, handling challenging media containing suspended solids, fibers, high-viscosity fluids, or aggressive sludges requires specialized heat transfer technology. Standard gasketed plate heat exchangers often suffer from rapid clogging, severe pressure drops, and frequent maintenance downtime when exposed to coarse particles. Our engineered wide gap plate heat exchanger resolves these operational bottlenecks by providing an expanded, obstacle-free flow channel designed specifically for clog-free, high-efficiency continuous thermal transfer.
Engineered Flow Channel Technology: Preventing Blockages & Scaling
The core innovation of our wide gap heat exchanger lies in its asymmetrical or wide-wide corrugated channel geometry. Featuring flow gaps ranging from 6mm up to 12mm or more—substantially wider than the standard 2mm to 4mm narrow channels—this system allows slurries, fibrous suspensions, and particulate-laden fluids to flow smoothly without trapping debris at plate contact points.
Key Design Advantages:
Non-Contact / Coarse Corrugation Profile: Minimizes particle retention points, enabling unimpeded media flow and preventing localized clogging.
High Turbulence at Low Velocities: Specialized pressing patterns generate optimal fluid turbulence even at reduced velocity, maintaining exceptional heat transfer coefficients ($U$-values) while significantly suppressing fouling rates.
Flexible Channel Configuration: Available in wide-wide (for two viscous/slurry streams) or wide-narrow (combining a dirty slurry stream with a clean utility cooling/heating water stream) channel combinations.
Technical Specifications Overview
| Parameter | Standard Specification Range |
| Flow Channel Gap | 6.0 mm – 12.0 mm (Customizable upon request) |
| Plate Materials | Stainless Steel 304/316L, Titanium, Hastelloy C-276, 254 SMO |
| Gasket Materials | NBR, EPDM, Viton (FKM), FDA Food-Grade Elastomers |
| Design Pressure | Up to 16 bar (1.6 MPa) / Custom High-Pressure Frames Available |
| Operating Temperature | -20°C up to 180°C (Depending on gasket selection) |
| Connection Sizes | DN50 to DN300 (Flanged, Threaded, or Hygienic Triclamp) |
Target Applications Across Industrial Sectors
Our robust wide gap plate heat exchanger units are deployed globally in harsh processing environments where uptime and thermal recovery are critical:
Sugar & Alcohol Refineries: Efficient handling of raw juice, massecuite, molasses, and ethanol distillation mash containing organic fibers.
Pulp & Paper Industry: Waste heat recovery from fibrous black liquor, green liquor, and pulp slurry streams.
Wastewater & Environmental Engineering: Thermal treatment and heat recovery from raw sewage sludge, municipal waste streams, and industrial effluents.
Chemical & Petrochemical Processing: Processing viscous chemical fluids, polymer suspensions, and crystallization processes with solid precipitation risks.
Food, Beverage & Bio-processing: Pasteurized fruit pulps, sauces, grain mashes, and fermentation broths requiring gentle fluid handling and strict hygienic standards.
Why Choose Our Wide Gap Thermal Solutions?
When you partner with us for your wide gap heat exchanger requirements, you gain access to decades of thermal engineering expertise and factory-direct reliability:
Maximized Operational Uptime: Dramatically reduces mechanical cleaning frequency and backwashing cycles, saving hundreds of maintenance hours annually.
Lower Total Cost of Ownership (TCO): Higher energy recovery combined with reduced pumping power consumption and minimal replacement part frequency.
Custom Thermal Calculation & Sizing: Our engineering team utilizes advanced thermodynamic simulation software to design custom plate layouts tailored to your exact viscosity, particle size, and temperature profile.
Ready to upgrade your thermal process and eliminate clogging issues? Contact our application engineers today to receive a detailed thermal design proposal and factory-direct quote!
