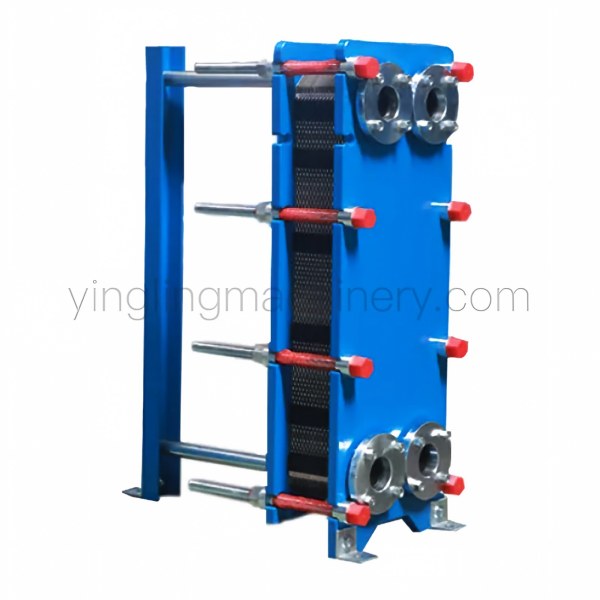

Premium Gasketed Plate Heat Exchanger – Direct Replacement for Thermowave

Precision German-Standard Aftermarket Solutions for Thermowave® Thermal Systems

Maintaining flawless thermal efficiency and zero-leak reliability in industrial refrigeration, HVAC, and chemical processing loops demands replacement components engineered to exacting mechanical standards. Yingling Machinery manufactures premium gasketed plate heat exchanger brand replacement solutions engineered specifically to replace OEM Thermowave® heat transfer plates, elastomeric seals, and complete plate pack assemblies.

Utilizing advanced 3D digitizing technology, high-tonnage automated hydraulic pressing, and rigorous rubber compound vulcanization, our Thermowave-compatible replacement components provide identical flow distribution, exact frame fitment, and robust pressure resistance—enabling B2B maintenance teams to lower procurement CapEx while ensuring continuous, high-efficiency operation.

Engineering Precision Tailored for Thermowave® thermaLine® Architecture

Thermowave® plate heat exchangers are globally renowned for their compact thermaLine® plate pressings, exceptional pressure capabilities, and specialized gasket retention systems designed for both standard thermal media and demanding refrigerants (such as ammonia and CO₂). Our engineering team replicates these intricate design parameters with exacting dimensional interchangeability.

Key Technical Highlights of Our Thermowave® Replacements:

Optimized thermaLine® Flow Geometry: Replicates Thermowave’s specialized corrugation angles to ensure uniform fluid velocity and maximum turbulence across the thermal boundary layer, significantly reducing fouling while maximizing heat transfer rates.

EcoLock & Snap-In Gasket Retention: Direct-fit replacements for Thermowave’s mechanical clip-on and glue-free gasket locking systems, enabling rapid, tool-free field re-gasketing and preventing seal displacement under high operating pressures or sudden thermal shocks.

Double-Barrier Leak Prevention Channels: Molded with dual-seal barriers and atmospheric venting slots that vent media leaks externally if a seal wears down, completely guarding process fluids against cross-contamination.

Extensive Material Selection: Plates are available in AISI 304, AISI 316L, Titanium (Grade 1 & 2), SMO 254, and Hastelloy C-276. Gaskets are molded from industrial and refrigeration-grade EPDM, High-Temp NBR, Fluorine Rubber (FKM/Viton), and specialized Chloroprene/HNBR compounds.

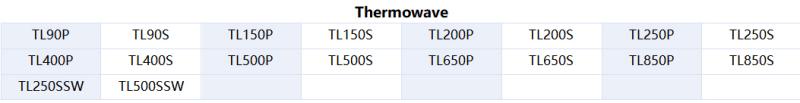

Supported Thermowave® Model Cross-Reference Matrix

We manufacture direct-fit replacement plates and gaskets fully compatible with a wide spectrum of legacy and active Thermowave® model series:

Why Choose Yingling Machinery as Your Thermowave® Replacement Partner?

Factory-Direct Cost Advantage: Eliminate third-party middleman markups and reduce your gasketed plate heat exchanger brand replacement procurement spending by 30%–50%.

True Drop-In Interchangeability: Our replacement plates and gaskets align flawlessly within existing Thermowave® frames and guide bars with zero piping alterations or frame structural modifications needed.

Rigorous Quality Control Standards: Every pressed plate undergoes 100% dye-penetrant pinhole detection, and gasket batches undergo strict compression-set and thermal aging evaluations before dispatch.

Fast Dispatch & Stocking Support: We maintain an extensive inventory of fast-moving replacement plates and gaskets for Thermowave models, guaranteeing short lead times to avoid costly emergency shutdown risks.

Multi-Industry Application Versatility

Engineered for rigorous industrial endurance, our Thermowave-compatible replacement components perform reliably across diverse operational environments:

Industrial Refrigeration & Cold Chain: Ammonia (NH₃) liquid chillers, CO₂ evaporators, and ice thermal storage loops.

Food, Beverage & Dairy: Juice heating, milk pasteurization, brewery wort cooling, and sanitary CIP.

Chemical & Petrochemical Processing: Acid cooling, solvent heat recovery, and aggressive medium separation.

HVAC & District Energy: Commercial building cooling, pressure breakers, and central boiler heat recovery loops.

Request a Fast Thermowave® Cross-Reference Quote

Ensure non-stop, high-efficiency operations with Yingling Machinery’s trusted gasketed plate heat exchanger brand replacement solutions for Thermowave®. Send us your existing Thermowave model designation, frame serial number, or OEM part number, and our technical sales engineering team will deliver a comprehensive quote within 24 hours.

Legal Disclaimer: Yingling Machinery is an independent manufacturer of aftermarket replacement components for plate heat exchangers and is not affiliated with, sponsored by, or authorized by Thermowave GmbH or the Güntner Group. Any references to Thermowave®, thermaLine®, or associated model designations (e.g., TL 150®, TL 250®, TL 500®) are strictly intended for compatibility identification purposes.
