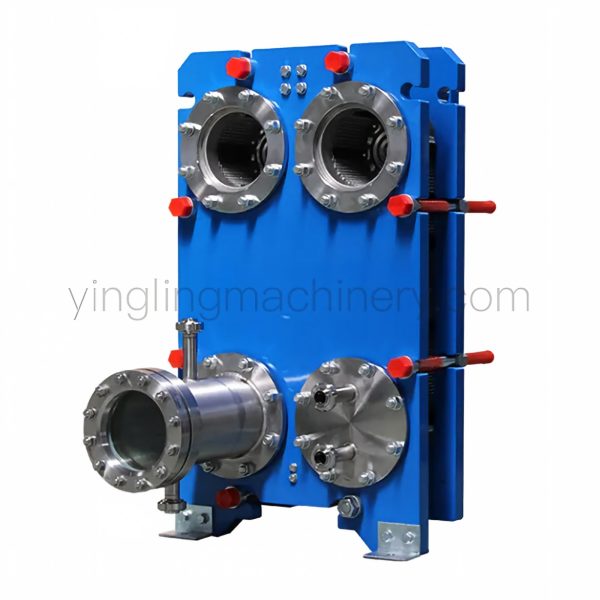

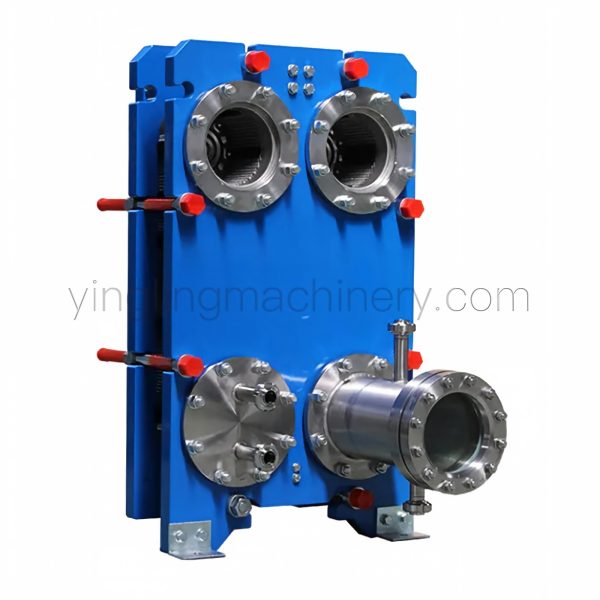

Heavy-Duty High Temperature & High Pressure Plate Heat Exchanger
1.High-Temperature Resistance
2.High-Pressure Performance
3.Reliable Sealing & Leak Prevention
4.Efficient Heat Transfer
5.Robust & Durable Construction
6.Stable Operation Under Demanding Conditions
Engineered for Extreme Thermal Fatigue Resistance, High System Pressure, and Maximum Heat Recovery
1. Product Overview: Thermal Performance Under Extreme Operating Conditions
In modern heavy chemical processing, oil refining, power generation, and district heating systems, conventional thermal equipment often fails when subjected to extreme operating pressures and intense thermal shocks. Our industrial-grade high temperature high pressure plate heat exchanger solution is specifically designed to bridge the performance gap between traditional bulky shell-and-tube units and high-efficiency plate thermal technology.
Built with heavy-gauge compression frames, reinforced pressure plates, and custom-engineered metallic laser welding or specialty high-temp gasket sealing, our units handle operating pressures up to 4.0 MPa (40 Bar) and temperatures exceeding 350°C (662°F). By maintaining ultra-high heat transfer coefficients in compact physical dimensions, these units significantly lower initial capital expenditure (CAPEX) while drastically improving ongoing energy recovery efficiency.
2. Structural Engineering & Technology Options
Depending on your process media, pressure dynamics, and maintenance requirements, we offer two primary structural configurations built for high-duty applications:
A. Heavy-Duty High Pressure Plate and Frame Heat Exchanger

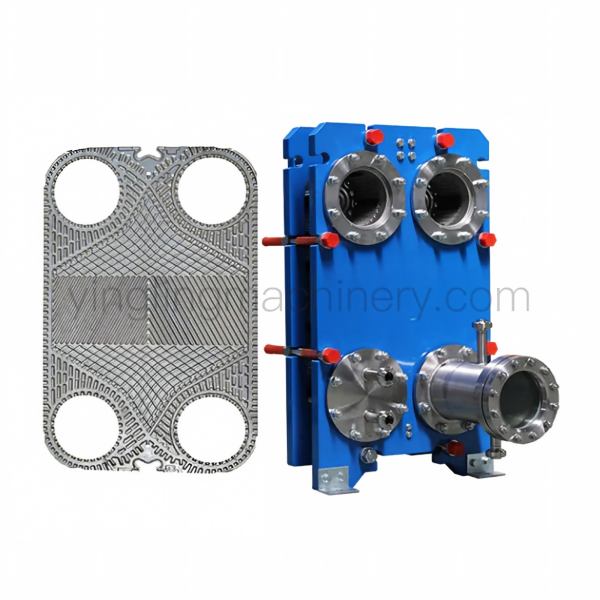

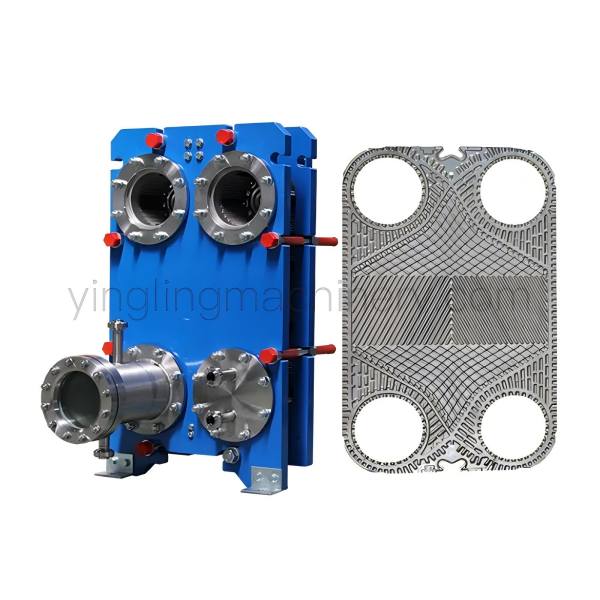

For applications requiring periodic internal inspection, mechanical cleaning, or channel expansion, our reinforced high pressure plate and frame heat exchanger utilizes extra-thick carbon steel or stainless steel frame plates, high-tensile tie bolts, and specialized elastomeric/graphite gaskets. The optimized chevron corrugated plates maintain structural stiffness under severe differential pressures, preventing plate deformation while maintaining high fluid micro-turbulence.
B. Fully Welded / All-Welded High Pressure Plate Heat Exchanger
When operating temperatures and pressures exceed the limits of elastomeric gaskets, or when handling hazardous, volatile, and toxic fluids, our fully welded high pressure plate heat exchanger eliminates gasket failure risks entirely. The plate pack is completely laser-welded or TIG-welded together, delivering continuous structural integrity under extreme cyclic thermal stress and maximum operating pressures.
3. Core Technical Advantages & Engineering Innovations
Unrivaled Thermal Efficiency: High turbulent channel geometry achieves overall heat transfer coefficients 3 to 5 times greater than conventional shell-and-tube heat exchangers.
Exceptional Pressure & Temperature Thresholds: Engineered to safely operate under design pressures up to 4.0 MPa and temperatures from -50°C up to +350°C.
Thermal Shock & Pressure Surge Resistance: Finite Element Analysis (FEA) optimized plate patterns distribute stress evenly across the contact points, resisting cyclic thermal expansion and pressure spikes.
Compact Footprint & Reduced Liquid Hold-up: Requires up to 80% less space than shell-and-tube equivalents, allowing for lower structural installation costs and minimal fluid volume inside the system.
Fouling Mitigation: High wall shear stress generated by intense micro-turbulence continuously scours plate surfaces, minimizing mineral scaling and deposit buildup.
4. Technical Specifications Overview
| Parameter | Specification Range |
| Plate Materials | Stainless Steel (316L, 304), Titanium, Hastelloy C-276, SMO 254, Nickel Alloys |
| Frame / Shell Materials | Heavy Carbon Steel (SA516 Gr 70), Stainless Steel 304/316 Clad |
| Design Pressure | Full Vacuum to 4.0 MPa (40 Bar / 580 PSI) [Custom pressures up to 10 MPa available] |
| Operating Temperature | -50°C to +350°C (-58°F to +662°F) |
| Max Flow Rate | Up to 5,000 m³/h per single unit |
| Design Standards | ASME VIII Div. 1, PED 2014/68/EU, CE, ISO 9001, GB150 |
5. Key Industrial Applications
Petrochemical & Refining: High-pressure oil heating/cooling, amine gas treatment, overhead vapor condensation, and hydro-processing units.
Power Plants & Energy Recovery: High-pressure boiler feedwater preheating, steam condensate cooling, and geothermal power exchange.
District Heating & HVAC: High-rise building pressure isolation stations and high-temperature thermal grid exchangers.
Chemical Processing: Aggressive solvent cooling, high-temperature synthesis reactions, and thermal fluid heat recovery systems.
Request a Custom Engineering Calculation & Thermal Design Today
Our thermal engineering team uses advanced sizing software to calculate exact thermal duties, pressure drops, and material specifications for your process requirements. Contact our engineering sales team for a formal quote within 24 hours.
