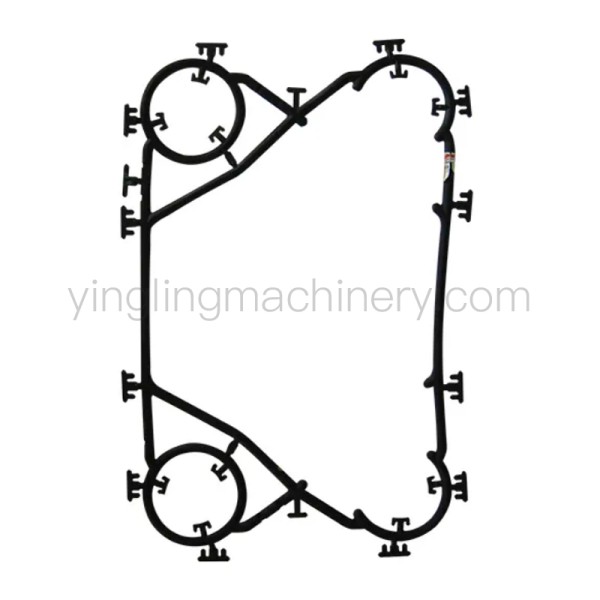

Custom Plate Heat Exchanger Gasket Solutions for Perfect System Compatibility

Custom Plate Heat Exchanger Gasket Solutions for Perfect System Compatibility

In complex industrial processing plants, non-standard system dimensions, legacy equipment models, and specialized process media often present maintenance challenges. Standard off-the-shelf elastomeric seals may fail to provide exact channel positioning, leading to premature fluid leakage, pressure drop spikes, and unplanned operational downtime. Optimizing your gasketed plate heat exchanger requires precision-engineered sealing components designed specifically for your system's exact thermal and mechanical requirements.

At Yingling Machinery, we specialize in manufacturing high-precision, custom-tailored plate heat exchanger gasket replacements and OEM solutions. Whether you need to reverse-engineer obsolete seals for legacy heat exchangers or develop custom rubber formulations for aggressive chemical environments, our custom molding services deliver a 100% exact fit, superior pressure tolerance, and exceptional long-term reliability.

Engineered Rubber Compounds Tailored to Your Process Media

A custom plate heat exchanger gasket must be matched precisely to your operating temperature, pressure profile, and fluid chemistry. We offer custom compounding across premium elastomeric materials:

Custom NBR / HNBR Gaskets:

Formulated for mineral oils, hydraulic fluids, fatty acids, and water-glycol solutions up to 110°C–140°C. Ideal for specialized industrial oil cooling and heavy equipment hydraulics in a gasketed plate heat exchanger.

Custom EPDM / High-Temp EPDM Gaskets:

Engineered for hot water, saturated steam, dilute organic acids, and alkalis up to 160°C (320°F). Perfect for sanitary food & dairy processing, pharmaceutical production, and district heating systems.

Custom F K M (Fluoroelastomer) Gaskets:

Designed for maximum chemical resistance against concentrated acids, aromatic solvents, and high operating temperatures up to 180°C (356°F) in critical chemical processing units.

Technical Customization Capabilities Matrix

Precision Reverse Engineering & Rapid Custom Manufacturing

Upgrading or maintaining a unique gasketed plate heat exchanger should never be delayed by hard-to-find replacement parts. Our full-service custom manufacturing process includes:

3D Scanning & Reverse Engineering:

Send us your used gasket sample, original technical drawing, or plate dimensions. Our engineering team utilizes advanced 3D scanning to recreate exact CAD models, ensuring seamless compatibility with your plate channels.

In-House Tooling & Rapid Prototyping:

We design and cut precision compression molds in-house, drastically shortening development lead times for prototype validation before full-scale batch production.

Strict Compression & Leakage Testing:

Every custom plate heat exchanger gasket undergoes batch tensile testing, compression set evaluation, and dimensional verification to prevent deformation under fluctuating thermal cycles.

Why Choose Yingling Machinery for Custom Sealing Solutions?

With extensive experience as a B2B heat exchanger component manufacturer, Yingling Machinery provides factory-direct custom supply with low MOQ thresholds, competitive pricing, and fast global shipping. We empower plant engineers, equipment maintenance contractors, and distributors to keep their gasketed plate heat exchanger systems running at peak efficiency without paying inflated OEM markup costs.

Need a Custom Gasket for Your Heat Exchanger System?

Contact our technical engineering team today to submit your drawings or samples. Receive immediate model verification, custom compound advice, and a fast factory-direct quotation!
