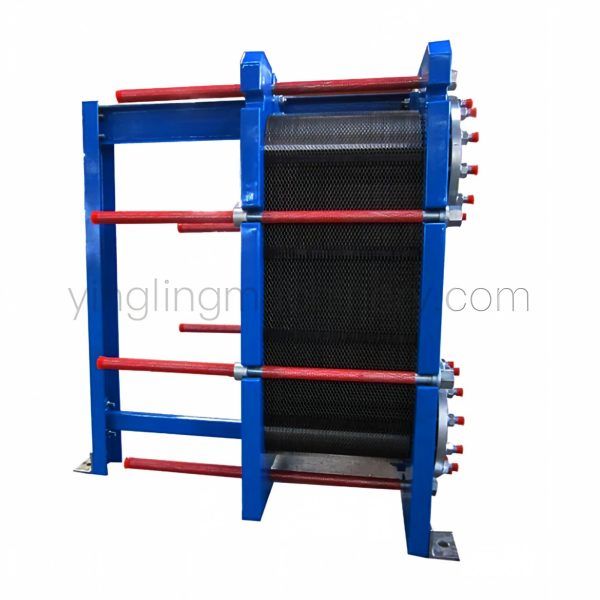

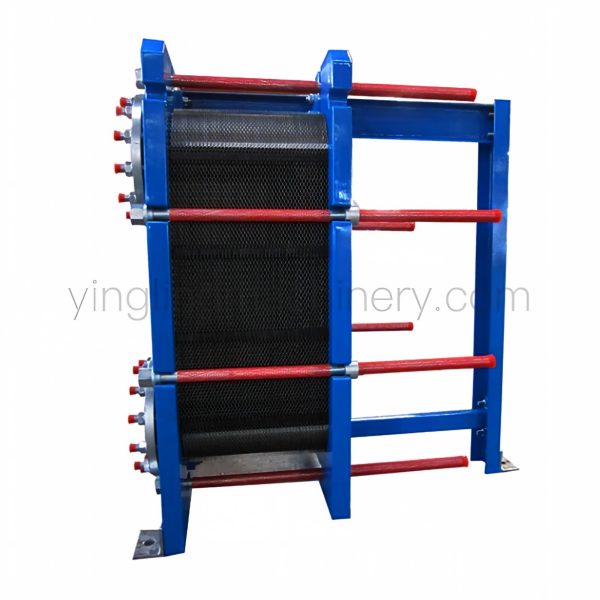

Industrial High-Efficiency Corrosion-Resistant Plate Heat Exchanger
1.Excellent Corrosion Resistance
2.High-Efficiency Heat Transfer
3.Wide Material Compatibility
4.Reliable Performance with Aggressive Media
5.Compact and Space-Saving Design
6.Long Service Life & Low Maintenance
Engineered for Extreme Thermal Efficiency and Maximum Longevity in Aggressive Media
1. Product Overview: Superior Thermal Performance for Demanding Environments
In modern industrial manufacturing, managing aggressive fluids and harsh working conditions requires thermal equipment that delivers uncompromised durability and exceptional thermal performance. Our industrial-grade corrosion-resistant plate heat exchanger series is custom-engineered to withstand harsh chemical reaction environments, marine saltwater processing, acidic fluid cooling, and high-temperature industrial heat recovery applications.
By utilizing advanced corrugated plate technology, our heat exchangers induce high turbulent flow at low fluid velocities. This maximized fluid turbulence breaks down boundary thermal resistance, achieving heat transfer coefficients up to 3 to 5 times higher than conventional shell-and-tube heat exchangers while occupying a fraction of the floor footprint.
2. Material Options: Titanium & Stainless Steel Excellence
We provide versatile metallurgical configurations designed to perfectly match your specific working fluid, concentration levels, operating pressures, and temperatures:
A. Premium Titanium Plate Heat Exchanger (Gr1 / Gr2 Titanium)
For applications handling high-concentration chloride solutions, seawater, bleach, or aggressive organic acids, our titanium plate heat exchanger offers virtually immune corrosion performance. The self-passivating titanium oxide protective layer guarantees exceptional durability against pitting corrosion, crevice corrosion, and erosion attack, making it the industry benchmark for offshore platforms, marine engineering, chlor-alkali production, and desalination plants.
B. High-Grade Stainless Steel Plate Heat Exchanger (SS304 / SS316L / Duplex 2205)
Engineered for food & beverage, pharmaceutical, HVAC, and general chemical processing, our high-precision stainless steel plate heat exchanger delivers hygienic operations, outstanding resistance to oxidation, and high mechanical strength. Utilizing specialized ultra-low carbon 316L or Duplex alloys, our stainless plate heat exchanger units prevent intergranular corrosion and deliver reliable long-term thermal efficiency in demanding heating and cooling cycles.
3. Key Engineering Advantages & Structural Innovations
Maximum Heat Transfer Coefficient: Deeply corrugated chevron patterns produce intense micro-turbulence, delivering heat transfer rates up to 7,000 W/m²·K.
Compact & Modular Design: Compact structure reduces required footprint by up to 70% compared to shell-and-tube units, making installation and retrofit seamless.
Anti-Fouling & Self-Cleaning Geometry: Fluid turbulence creates a scouring action along the plate walls, significantly reducing scaling, mineral deposits, and maintenance downtime.
Advanced Gasket Sealing Technology: Equipped with EPDM, NBR, or Viton (FKM) clip-on gaskets designed for tight sealing, preventing cross-contamination between media channels under variable pressure spikes.
Easy Maintenance & Scalability: The frame design allows quick disassembly for chemical cleaning, inspection, or expanding heat exchange area by simply adding additional plates.
4. Technical Specifications Overview
| Parameter | Specification Range |
| Plate Material | Titanium (Gr1, Gr2), Stainless Steel (SS304, SS316L, 254SMO, Duplex 2205/2507) |
| Gasket Material | NBR, EPDM, Viton (FKM), HNBR (Clip-on / Glue-free options) |
| Operating Temperature | -35°C to +180°C (-31°F to +356°F) depending on gasket material |
| Design Pressure | Up to 2.5 MPa (25 Bar / 362 PSI) |
| Flow Rate Capacity | 1 m³/h to 4,500 m³/h per single frame unit |
| Connection Port Sizes | DN25 to DN500 (Flanged, Threaded, or Hygienic Clamp) |
5. Target Industrial Applications
Chemical & Petrochemical: Acid cooling, solvent recovery, caustic soda production, and aggressive salt solution exchange.
Marine & Offshore: Seawater central cooling systems, jacket water cooling, engine heat dissipation, and desalination processes.
Power & Energy: Geothermal fluid heat exchange, power plant turbine auxiliary cooling, and waste heat recovery systems.
Food, Beverage & Pharma: Hygienic fluid heating, pasteurization, pure water cooling, and CIP (Clean-in-Place) systems.
Need a Custom Thermal Calculation & Engineering Quote?
Our thermal engineers provide free sizing calculations and custom material recommendations tailored to your flow rate, pressure drop, and media corrosion parameters. Contact our B2B sales team today for a response within 24 hours.
